| Place of Origin: | CHINA |
|---|---|
| Brand Name: | HC , OEM |
| Certification: | CE , SGS , ISO2001 |
| Model Number: | BK0551 |
| Minimum Order Quantity: | 100PCS |
| Price: | Negotiable |
| Packaging Details: | Cartons , Wooden Case , Pallets |
| Delivery Time: | 7 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5000 Sets Per day |
| Usage: | Connect With Cables | Working Temperature: | -60-60 Degree |
|---|---|---|---|
| Wire Dia: | Up To 3 | Material: | ABS |
| Hook Material: | SS Hook | Connection: | On A Pole Bracket |
| High Light: | BK0551 ABS fiber optic drop cable clamp,BK0551 FTTH fiber optic drop cable clamp,BK0551 Plastic ftth drop cable clamp |
||

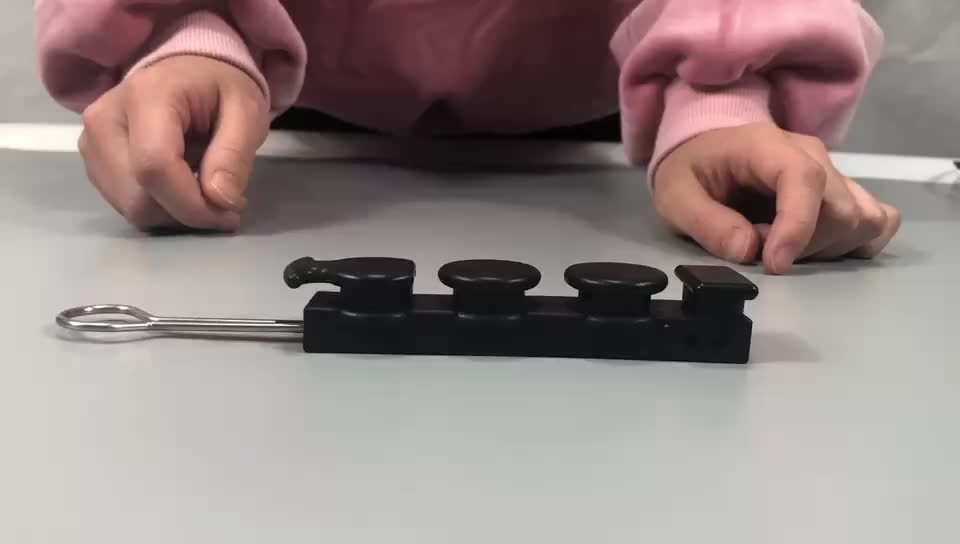

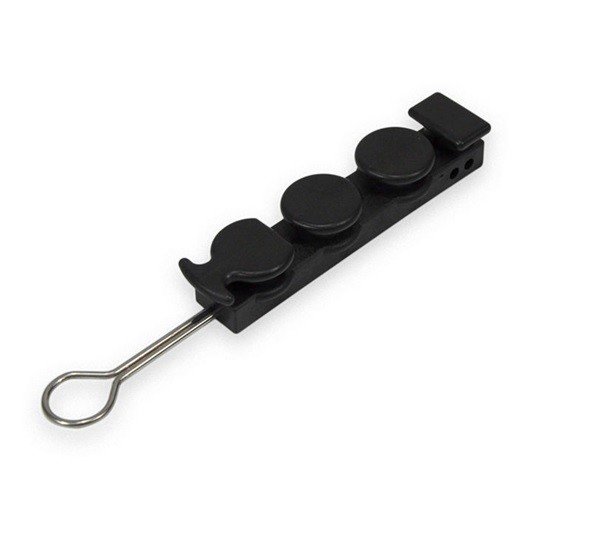

Drop Fiber Plastic Flat Cable Clamp for FTTH / Herrajes para Fibra de la Gota
FTTH anchor clamp is designed to tension steel wire dia up to 3 mm of FRP messenger of drop cable in outdoor FTTX.
Drop cable anchor clamp is used on dead-end fiber optic cables.
| Item No. | Dimension | Weight | Material |
| Circle type fixing | 134*27.5*17mm | 38g | Polyester+SS201 |
| S type fixing | 135*27.5*17mm | 28g | ABSS+stainless steel |
| Large size fixing | 180*27.5*20mm | 70g | ABSS+stainless steel |
FTTH drop cable S-type fitting is easy in installation,and requires preparation of optical cable before attaching.Open hook self-locking construction perform easiest installation on fiber pole.
This type of FTTH plastic cable accessory has the principle of a round route for fixing the messenger, this helps to secure it as tightly as possible.
Stainless steel wire ball allows installations of FTTH clamp drop wire on a pole brackets,SS hooks.
Anchor FTTH optical fiber clamp and drop wire cable brackets are available either separately or together as assembly.
FTTH Drop cable anchor clamps passed the tensile tests,operation experience with temperatures ranging from -60degree up to 60 degree test,temperature cycling test,aging test,corrosion resistant test.
