| Place of Origin: | CHINA |
|---|---|
| Brand Name: | HC , OEM |
| Certification: | CE , SGS , ISO2001 |
| Model Number: | BK5123 |
| Minimum Order Quantity: | 100PCS |
| Price: | NegotiablOe |
| Packaging Details: | Cartons , Wooden Case , Pallets |
| Delivery Time: | 7 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5000 Sets Per day |
| Cable Type: | SC, FC, ST, LC, MTRJ, E2000, MU, MPO /MTP.etc | Feature: | Low Insertion Loss |
|---|---|---|---|
| Application: | Optical Fiber Communication System. | Advance: | Low Insertion Loss |
| Outter Jacket: | PVC /LSZH/OFNP | Durability: | 500 Cycles(0.2 DB Max Increase) |
| High Light: | fiber optic patch cord G657D,Fiber Optic Patch Cord SC APC,SGS fiber optic patch cable |
||

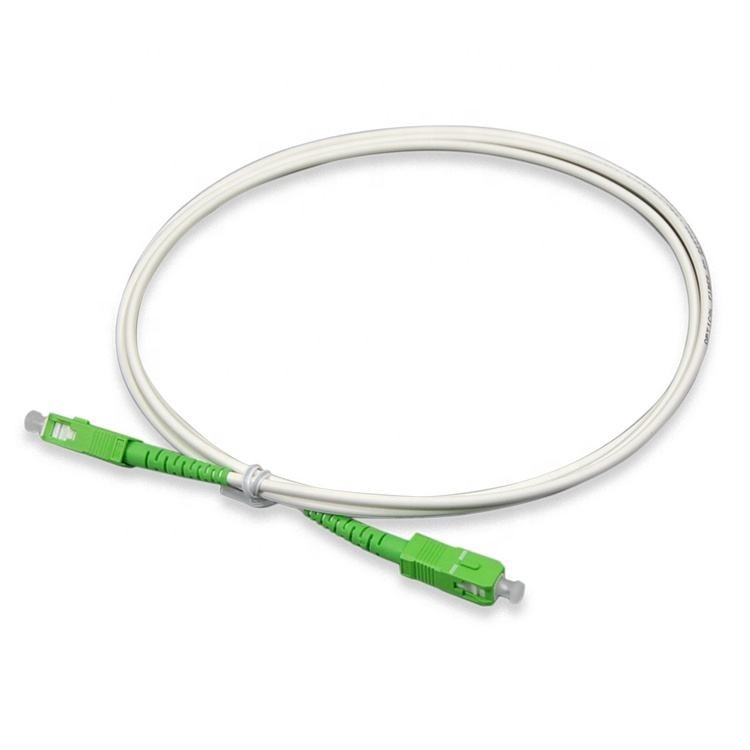

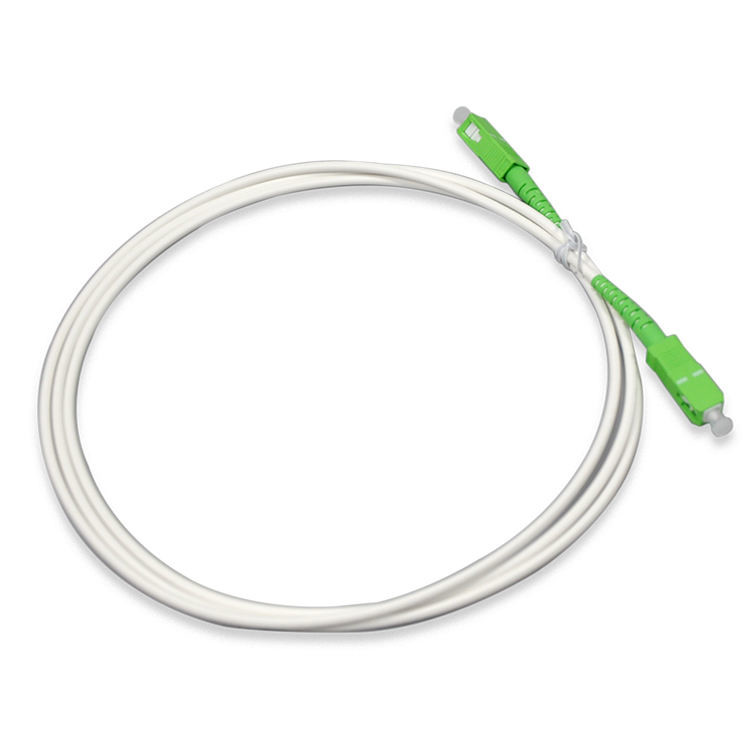

Optic Fiber Patch Cord SC APC SM SX G657D White Color Patchcord
Fiber Optic Patch Cord are used to connect to SC devices and are suitable for Gigabit Ethernet, video, multimedia, premise installations, fiber optics, Fiber optic transceiver panels and fiber optic network, industrial, and military applications. Connector function Dust plugs at the tips for protection.
Features
1. Low insertion loss
2. High return loss
3. Excellent Repeatability,
exchangeability, wearability and
stability.
4. Environmentally Stable
Applications
1. Optical fiber communication system.
2. Optical fiber access networks.
3. Optical fiber CATV.
4. Optical fiber data communication
5. Optical fiber test equipment.
| Fiber Optic Patch cord | |
| Range of Mode: | Single mode or Multi mode |
| Cable Type: | SC, FC, ST, LC, MTRJ, E2000, MU, MPO /MTP.etc |
| Polish or Ferrule Interface Type: | PC, UPC, APC |
| Cable Diameter: | 0.9mm, 2.0mm, 3.0mm |
| Outer Jacket: | PVC /LSZH/OFNP |
| Jacket Color: | SM Yellow | OM1, OM2 Orange | OM3 Aqua | OM4 Aqua or Violet | OM5 Lemon Green |
| Durability: | 500 cycles(0.2 dB max increase). 1000mate/de mate cycles |
| Operating Temp. | -20 ºC to +70ºC/+85ºC (armored) |
| Storage Temp. | -40ºC to +85ºC |
