| Place of Origin: | CHINA |
|---|---|
| Brand Name: | HC , OEM |
| Certification: | CE , SGS , ISO2001 |
| Model Number: | BK1324 |
| Minimum Order Quantity: | 100PCS |
| Price: | Negotiable |
| Packaging Details: | Cartons , Wooden Case , Pallets |
| Delivery Time: | 7 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5000 Sets Per day |
| Function: | Connect Cable To Optical Device | Usage: | Indoor And OutDoor |
|---|---|---|---|
| Installation: | On Wall | Weight: | 0.2kgs |
| Bolt Exceeds: | 75000 | Clamping Range: | 1/4"(6.6M) To 7/16"(16M). |
| High Light: | ftth optical fiber aerial cable accessories,7/16" ftth drop cable clamp,ftth drop cable clamp |
||

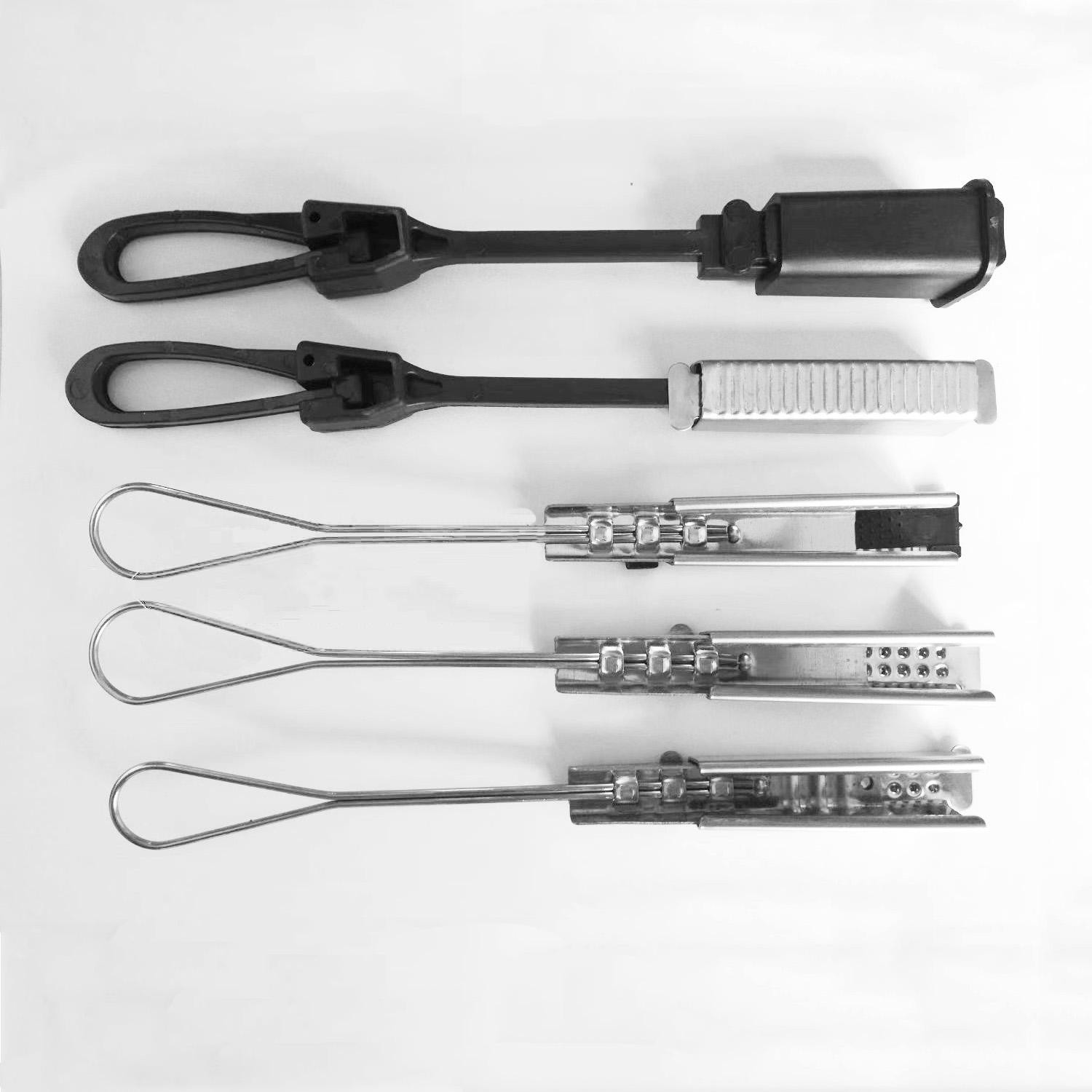

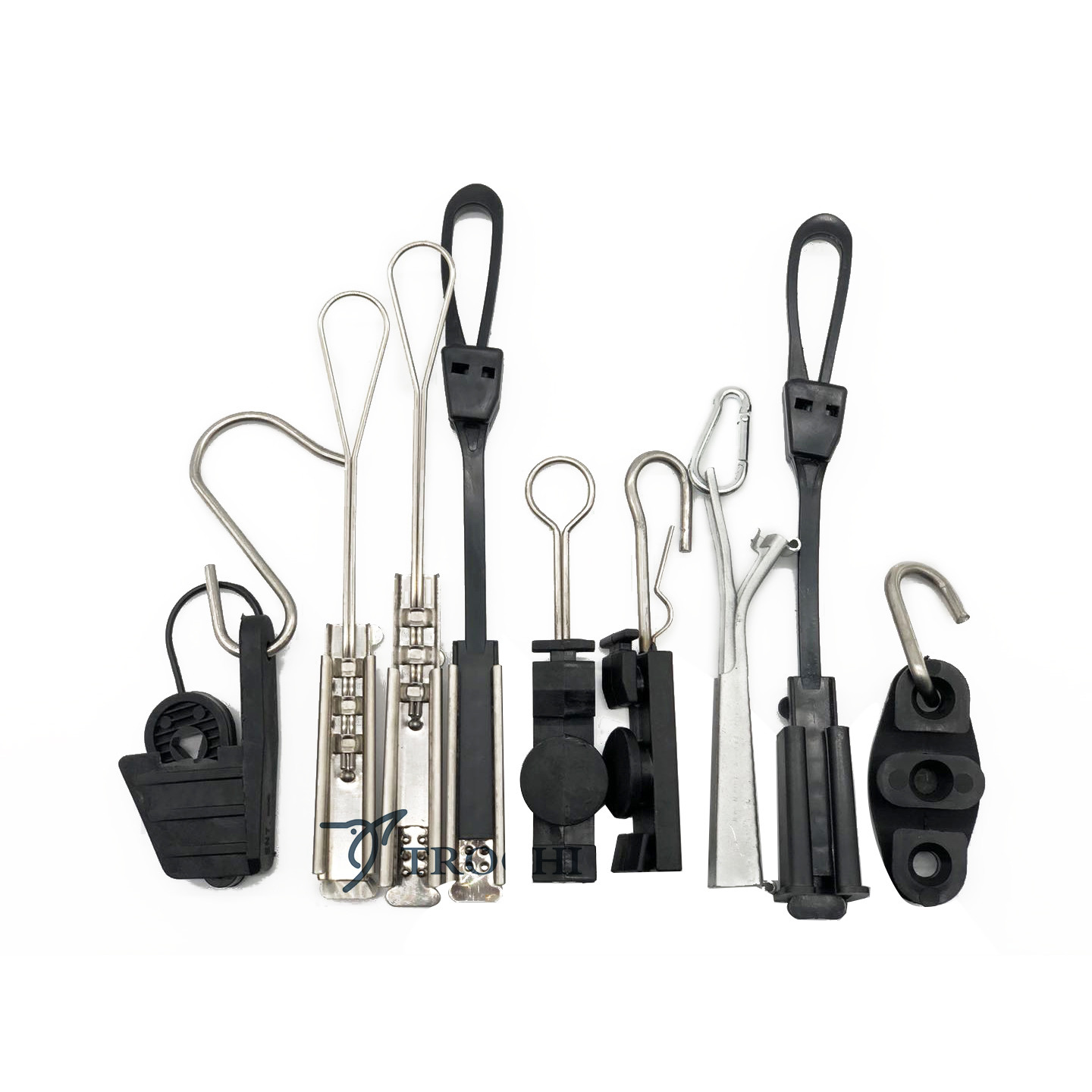

Aerial FTTH Fiber Drop Cable Steel Messenger Wire Tension Clamp
Product Description
1. FTTH Drop Cable Clamp is used to connect a overhead fiber cable to a optical devices or a house, widely used indoor / outdoor
installation.
2. This drop cable clamp is made of stainless materials, guarantees long time of usage.
3. Drop tension clamp is equipped with stainles steel perforated shim, which increase the tension load on stainless steel clamp without cable slip and damage.
4. The stainless steel tail wire/ bail allows installations on walls, poles with drive hooks, pole brackets, FTTH brackets and
other drop wire fitting or hardwares.
5. Full stainless steel or plastic shims are available and all the assemblies passed the tensile tests
6. Used in drop cable installations as an attachment to the strand for accepting the bail of Drop Wire Clamps.
7. Tensile strength of jaws and bolt exceeds 75,000 P.S.I
8. Clamping Range:1/4"(6.6M) to 7/16"(16M).
|
Plastic Compression Strength
|
≥350N (Cable Dia.≤16mm)
|
|
≥800N (Cable Dia.>16mm)
|
|
|
C-Frame Capacity
|
≤27mm
|
|
Low Temperature(-40±3℃)
|
24 Hours
|
|
High Temperature(70±2℃)
|
24 Hours
|
|
Salt Spray Chamber (Neutral)
|
≥96 Hours
|
|
UV Resistance
|
72 Hours
|
|
2011/65/EC (RoHS)
|
Compliant
|
