| Place of Origin: | CHINA |
|---|---|
| Brand Name: | HC , OEM |
| Certification: | CE , SGS , ISO2001 |
| Model Number: | TJY Series |
| Minimum Order Quantity: | 100PCS |
| Price: | Negotiable |
| Packaging Details: | Cartons , Wooden Case , Pallets |
| Delivery Time: | 7 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5000 Sets Per day |
| Weight: | 4.7kgs-11.8mm | Collocation: | Small Splint |
|---|---|---|---|
| Length: | 660-1200MM | Model Name: | Elbow Hoop |
| High Light: | 1200MM cable storage bracket,OPGW cable storage bracket 1200MM,1200MM cable storage assembly |
||

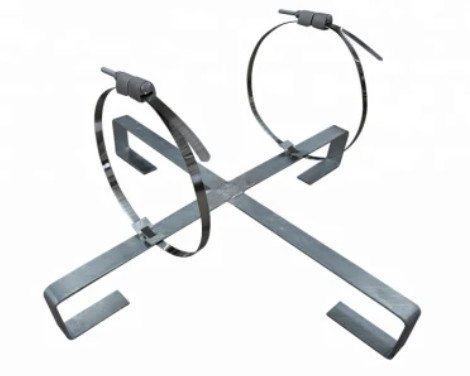

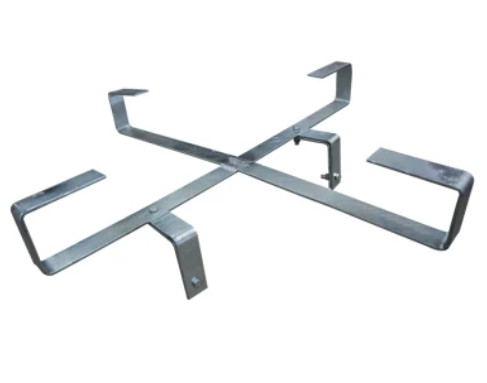

OPGW Pole And Tower Used Cable Loop Tray
1,Use:
Cable storage assembly: Deposit the remaining cable on running pole or tower. Be used with joint box.
2,Model:
13.1
| Name | Model | Dimension | Collocation | Suitable Cable Range | |
| L(mm) | Weight(kg) | ||||
|
Cable Storage Assembly |
TJY 660-T | 660 | 4.1 | Small splint | The dia of ADSS cable less than 14.8mm |
| TJY 1000-T | 1000 | 7.7 | Small splint | The dia of ADSS/OPGW cable less than 14.8mm | |
| TJY 1200-T | 1200 | 11.8 | Small splint | The dia of OPGW cable less than 14.8mm | |
|
Cable Storage Assembly |
TJY 660-H* | 660 | 4.1 | Support for pole | The dia of ADSS cable less than 14.8mm |
| TJY 1000-H* | 1000 | 7.7 | Support for pole | The dia of ADSS/OPGW cable less than 14.8mm | |
| TJY 1200-D* | 1200 | 11.8 | Elbow hoop | The dia of OPGW cable less than 14.8mm | |
Instruction:
1, T---for tower H*---stainless steel hoop D*---dia of pole
2, When the cable storage assembly is used on the tower, attached two sets of small splint.
