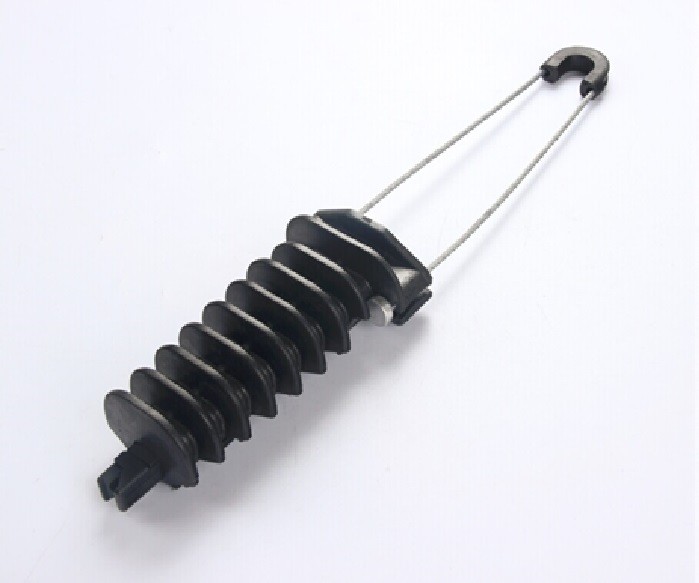

PA25 Type ADSS Dead End Clamp

PA25 Type Of  Dead End Clamp for ADSS conductor

The tension clamp is designed for service line with 1 conductor.
-Clamp body is made of high mechanical strength and weather resistant insulation material.
-Special designed clip is used to prevent the bail slippingfrom the body.

The ADSS tension clamp body, the main mechanical component is manufactured in heavy duty weatherproof synthetic material.
The wedge, made from synthetic material exerts necessary mechanical pressure in retaining the cable in the body of the clamp.
The pull hook is made from anti corrosion rod.
For anchoring isolated coaxial and unipolar cables.

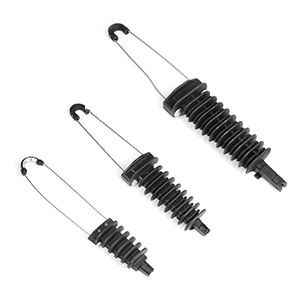

Feature of PA series Anchor clamps

1.Simple and fast installation requiring no tools.
2.Suits to all field configurations.
3.Possible to mount on pole line hardware with open or closed eye.
4.Mechanical traction resistant.
5.Supports industrial duty tension.
6.Corrosion resistant.
7.Weatherproof.

For the correct installing PA25 dead end clamp, the following steps are recommended:

• Loosen the mooring hook from the anchor clamp.
• Place the hook en the place to be mooring point or support, fixing it inside the body of the clamp
• Remove the wedge from its base and then place the cable within the clamp.
• Replace the wedge to its corresponding position and proceed to tense the cable taut.
