| Place of Origin: | CHINA |
|---|---|
| Brand Name: | HC , OEM |
| Certification: | CE , SGS , ISO2001 |
| Model Number: | HCPA-08 |
| Minimum Order Quantity: | 100PCS |
| Price: | Negotiable |
| Packaging Details: | Cartons , Wooden Case , Pallets |
| Delivery Time: | 7 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5000 Sets Per day |
| Material: | Aluminum Alloy | Cable Dia: | 3.5mm-6.5mm |
|---|---|---|---|
| Break Load: | 5.5KN-7KN | Warrantee: | 30 Years |
| Body Material: | Aluminium Alloy | Bail Material: | 304 Stainless Steel Bail |
| High Light: | 7KN ADSS anchor clamp,Aluminium Alloy ADSS anchor clamp,ADSS clamp Cable Fixing |
||

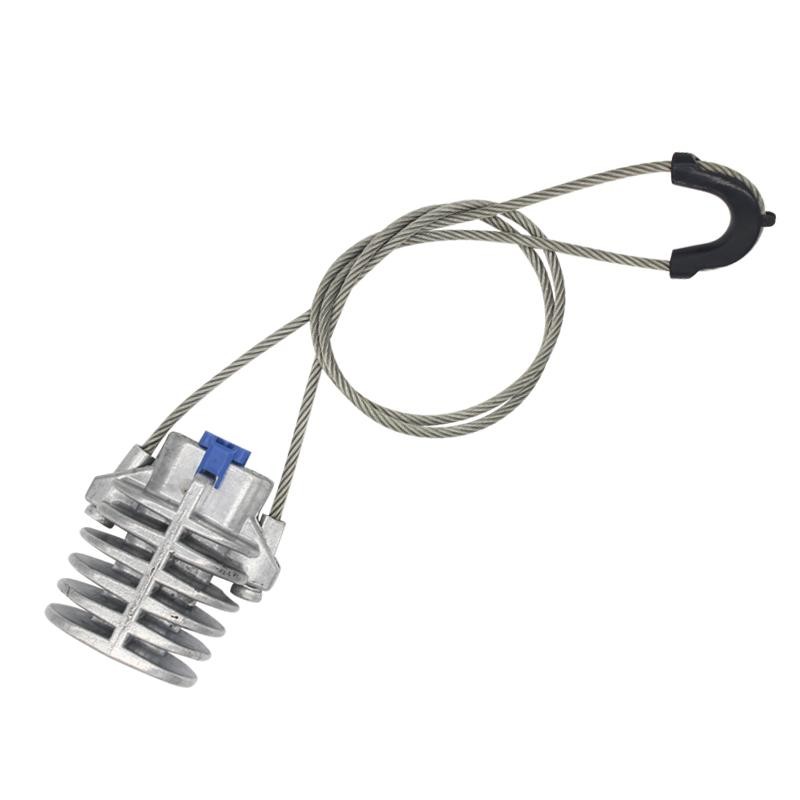

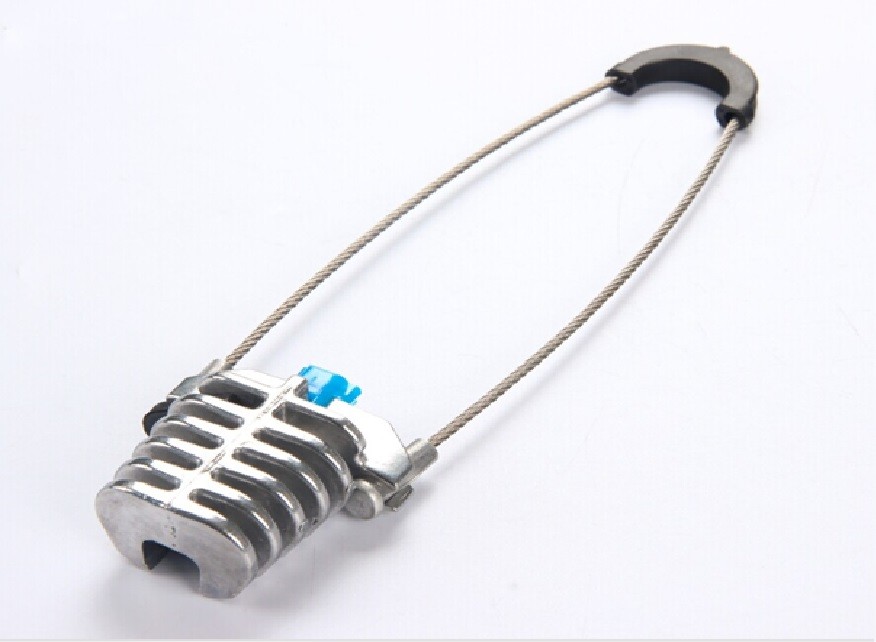

ADSS Cable Fixing Anchor Clamp for Hanging Cable
Product Technical Data
| Model | Cable Diameter (mm) | Break Load (kN) |
| HCPA-08 | 3.5-6.5 | 5.5 |
| HCPA-09 | 5-10 | 8 |
for fastening the cable against slippage, stainless steel cable 4-9 mm. It complies with International Standard NFC 33-041.
| SR.NO. | DESCRIPTION | DATA |
| 1 | Type of Clamp | Anchor Clamp |
| 2 | Item No.: | PA08 |
| 3 | International Standard it complies with | NFC 33-041 |
| 4 | Range of Conductor Sizes | 4-9mm |
| 5 | Color of Connector Core | BLACK |
| 6 | Body Material | UV STABILIZED THERMOPLASTIC Nylon Fiber Glass Filled, Aluminium alloy |
| 7 | Bail Material | 304 Stainless Steel Bail |
| 8 | Breaking Load | 7kN |
| 9 | Logo | / |
| 10 | Routine Test | 1. Dimensional Verification 2. Mechanical Test. a) Product Break 3. Visual a) Marking (Printing & Embossing) b) Overall finish c) Packaging Quality |
Packaging & Shipping
Packaging
1.Normal Package:10pieces in inner bag, 80pieces in one carton
Carton Size: 45*36*21cm
G.W.:16.5KGS
