PA01 PA02 PA05 ADSS Cable Fittings , Optical Fiber Cable Wedge Type Anchor Clamp

Basic Information
Place of Origin: CHINA
Brand Name: HC , OEM
Certification: CE , SGS , ISO2001
Model Number: PA-02,05
Minimum Order Quantity: 100
Price: Negotiable
Packaging Details: Cartons , Wooden Case , Pallets
Delivery Time: 7 days
Payment Terms: L/C, T/T
Supply Ability: 5000 Sets Per day
Detail Information
Weight: 19-23kgs Packing Size: 54*31*32
Strength: 2.5KN Conductor Range: 2*(16-35)
Application: ADSS Cable Fittings Standard: GB / T 2336-2000
High Light:

PA01 ADSS Cable Fittings

,

PA02 wedge type anchor clamp

,

ADSS wedge type anchor clamp


Product Description

Clamp For optical fiber cables type ADSS PA01,02,05



The type of ADSS PA01,02,05Anchoring Clamp For optical fiber cables Short spans < 100 m, or according to line system ADSS anchor clamps are made of * Flexible stainless steel bail * Fiber glass reinforced, UV resistant plastic body and wedges The stainless steel bail allows installations of clamps on pole bracket. All the assemblies passed the tensile tests, operation experience with temperatures ranging from –60 °C up to +60 °C test, temperature cycling test, aging test, corrosion resistance test etc

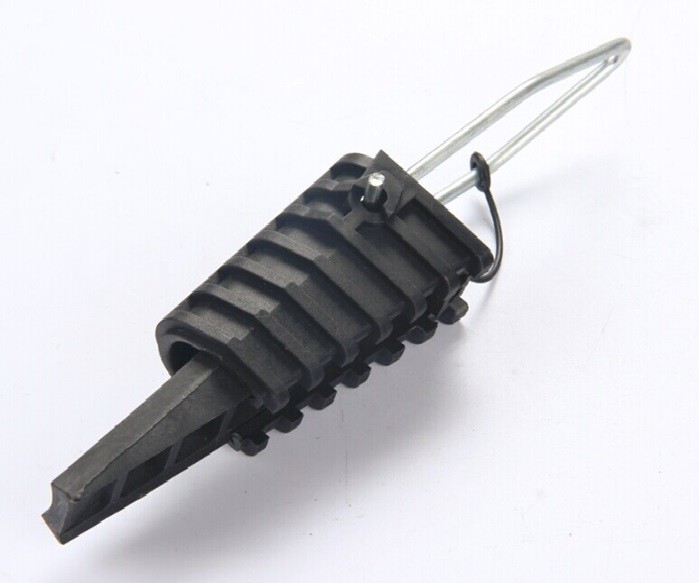

Description of anchor clamp wedge type

Anchor clamp wedge type for ab cable service line.The tension clamp for opgw is designed to anchor insulated service lines with 2 or 4 conductors to the pole or wall. The tension clamp for opgw is composed of a body, wedges and removable and adjustable bail or pad. One core wire anchor electrical clamp are design to supporting the neutral messenger,the wedge can be self-adjusting. Pilot wires or street lighting conductor are led alongside the anchoring clamp for optical fiber cables.The self opening is featured by an integrate spring facilities for easily insert the conductor into the clamp. Standard: NFC 33-042.

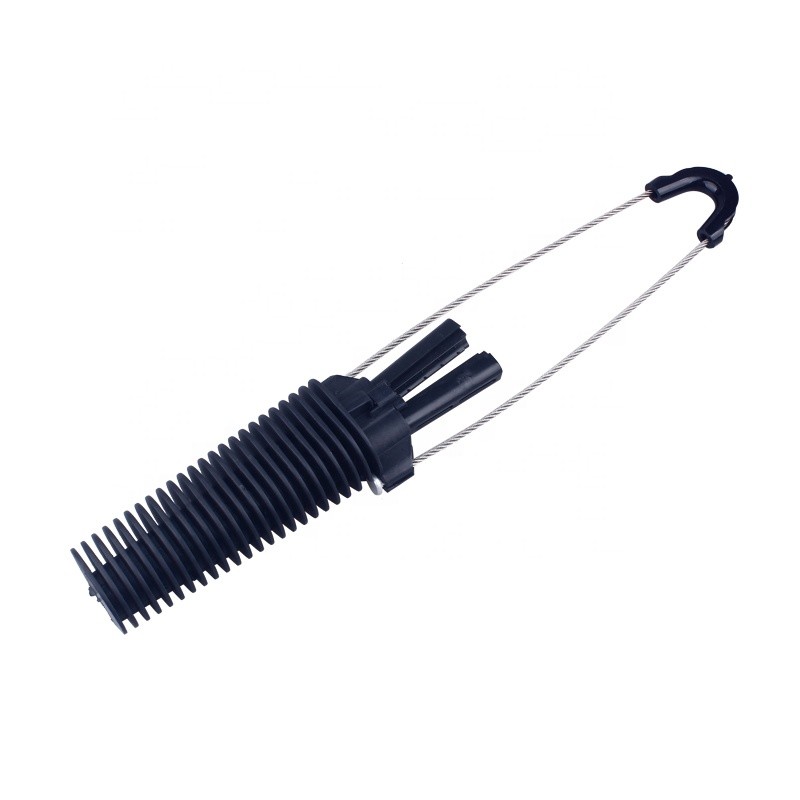

PA01 PA02 PA05 ADSS Cable Fittings , Optical Fiber Cable Wedge Type Anchor Clamp 0

Material of dead end clamp for ab cable

The clamp body, the main mechanical component is manufactured in heavy duty weatherproof synthetic material.
The wedge, made from synthetic material exerts necessary mechanical pressure in retaining the cable in the body of the clamp.
The pull hook is made from anti corrosion rod.
For anchoring isolated coaxial and unipolar cables.

Feature of tension clamp

1.Simple and fast installation requiring no tools.
2.Suits to all field configurations.
3.Possible to mount on pole line hardware with open or closed eye.
4.Mechanical traction resistant.
5.Supports industrial duty tension.
6.Corrosion resistant.
7.Weatherproof.

For the correct installing cable dead end clamp, the following steps are recommended:

  • Loosen the mooring hook from the anchor clamp.
  • Place the hook en the place to be mooring point or support, fixing it inside the body of the clamp
  • Remove the wedge from its base and then place the cable within the clamp.
  • Replace the wedge to its corresponding position and proceed to tense the cable taut.

Anchoring clamp hs code: 8538900000

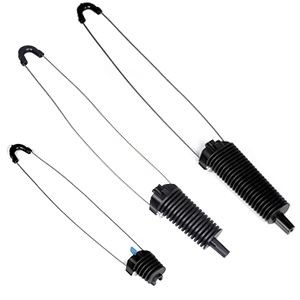

Anchoring Clamp For optical fiber cables type ADSS PA01,02,05



Models PA-05-*Z PA-05-* PA-02-* PA-01-*
Cable diameter(mm) 3-7 3-7 3-7 6-8
Min Tension (daN) 100-300 100-300 200-500 200-500
L(mm) 360 360 400 400
