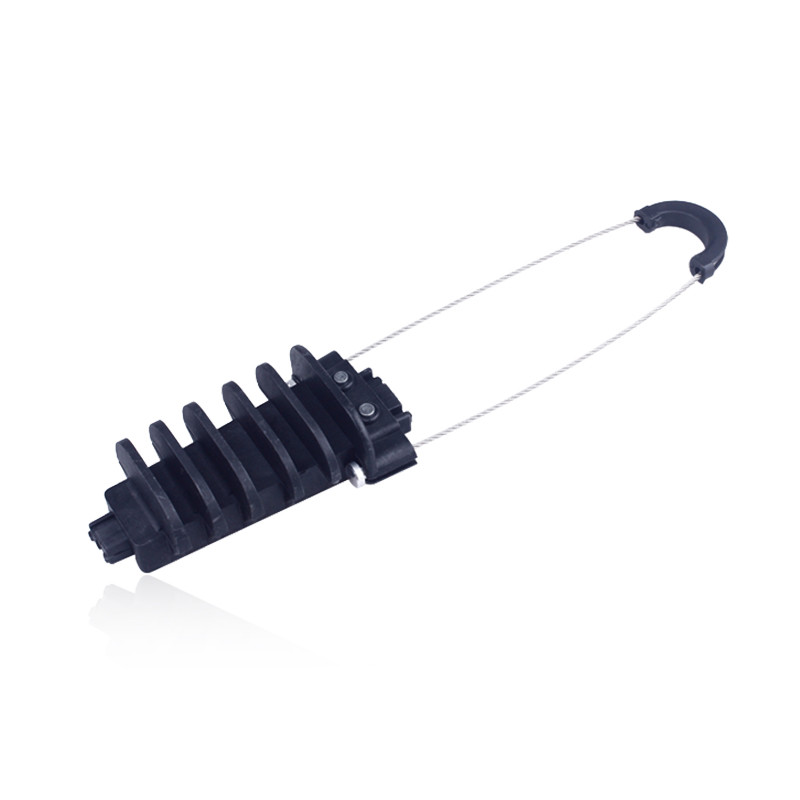

600KN ADSS Conductor Fiber Optic Dead End Clamp

Description of Dead End Clamp for ADSS conductor

The Dead End Clamp for ADSS conductor is designed to anchor insulated service lines with 2 or 4 conductors to the pole or wall. The ADSS tension clamp is composed of a body, wedges and removable and adjustable bail or pad.The PA series Anchor clamps are design to supporting the neutral messenger,the wedge can be self-adjusting. Pilot wires or street lighting conductor are led alongside the clamp. The self opening is featured by an integrate spring facilities for easily insert the conductor into the clamp. Standard: NFC 33-042.

Material of ADSS tension clamp

The ADSS tension clamp body, the main mechanical component is manufactured in heavy duty weatherproof synthetic material.
The wedge, made from synthetic material exerts necessary mechanical pressure in retaining the cable in the body of the clamp.
The pull hook is made from anti corrosion rod.
For anchoring isolated coaxial and unipolar cables.

Feature of PA series Anchor clamps

1. Simple and fast installation requiring no tools.
2. Suits to all field configurations.
3. Possible to mount on pole line hardware with open or closed eye.
4. Mechanical traction resistant.
5. Supports industrial duty tension.
6. Corrosion resistant.
7. Weatherproof.

For the correct installing PA1500 dead end clamp, the following steps are recommended:

• Loosen the mooring hook from the anchor clamp.
• Place the hook en the place to be mooring point or support, fixing it inside the body of the clamp
• Remove the wedge from its base and then place the cable within the clamp.
• Replace the wedge to its corresponding position and proceed to tense the cable taut.
•
