Teeth C Body Achoring Clamp AO-06 07 09

Basic Information
Place of Origin: CHINA
Brand Name: HC , OEM
Certification: CE , SGS , ISO2001
Model Number: AO-06,07
Minimum Order Quantity: 100
Price: Negotiable
Packaging Details: Cartons , Wooden Case , Pallets
Delivery Time: 7 days
Payment Terms: L/C, T/T
Supply Ability: 5000 Sets Per day
Detail Information
Strength: 5KN-6KN Conductor Dia: 2mm-7mm
Weight: 12-18kgs Conductor Square: 16-35mm2
Advantage: Simple And Easy Install Function: Supports Industrial Duty Tension
High Light:

Teeth C Body anchoring clamp

,

anchoring clamp ADSS fittings

,

6KN ADSS fittings


Product Description

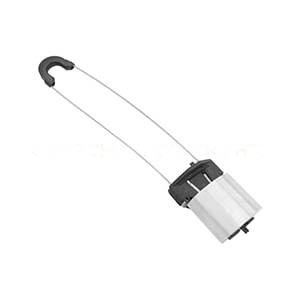

Teeth C Body Achoring Clamp AO-06 , 07 ,09

The type of AO-06,07,09 is for ADSS cable and round figure 8 conductor.The anchor clamp for ADSS cable is designed to anchor insulated service lines with 2 or 4 conductors to the pole or wall. The ADSS fiber clamp is composed of a body, wedges and removable and adjustable bail or pad. One core adss wedge clamp are design to supporting the neutral messenger,the wedge can be self-adjusting. Pilot wires or street lighting conductor are led alongside the cable clamp for ADSS cable. The self opening is featured by an integrate spring facilities for easily insert the conductor into the clamp. Standard: NFC 33-042.

Anchor Clamp is divided into Plastic Anchor Clamp and Aluminium Anchor Clamp according to different materials. The metal anchor is made of low carbon steel, heat-resistant alloy steel, nickel-chromium alloy and other materials. Metal Anchor Clamp has many shapes, such as Y type, V type, T type, S type and so on.Which shape of Metal Anchor Clamp to use is determined by the structure of the lining body. Mostly applicable to figure-8 and round cables. Metal Anchor Clamp is a refractory castable, built-in wedge is fire-resistant plastic and fire-resistant spray coating used to support and secure thinner liners.

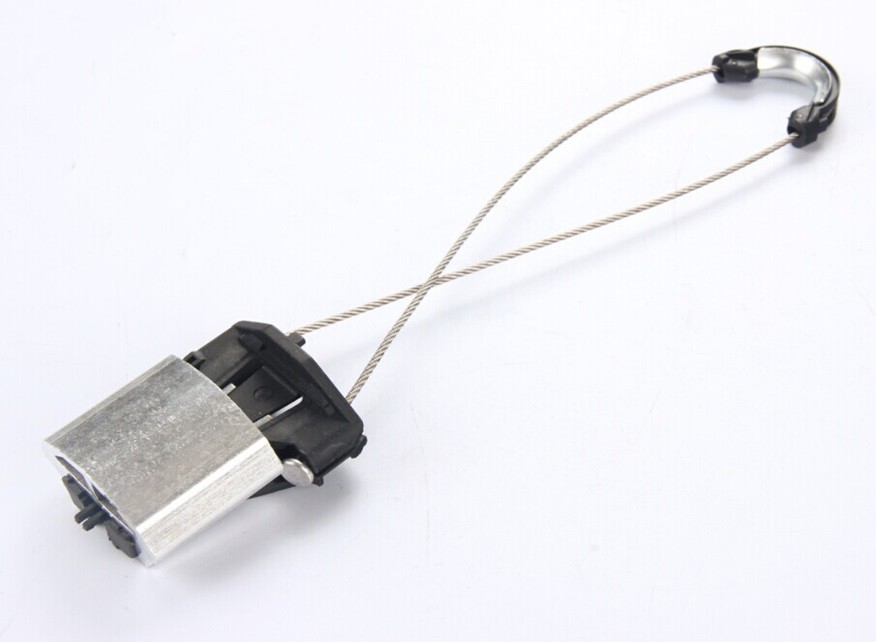

Teeth C Body Achoring Clamp AO-06 07 09 0

For the correct installing ADSS fiber clamp, the following steps are recommended:

  • Loosen the mooring hook from the anchor clamp.
  • Place the hook en the place to be mooring point or support, fixing it inside the body of the clamp
  • Remove the wedge from its base and then place the cable within the clamp.
  • Replace the wedge to its corresponding position and proceed to tense the cable taut.



Models PA04-S120M PA07-S(*)M PA09-S250M
Cable diameter(mm) 3 ~ 6 3 ~ 7 7 ~ 9
L(mm) 120 120, 200, 250, 300 250
