| Place of Origin: | CHINA |
|---|---|
| Brand Name: | HC , OEM |
| Certification: | CE , SGS , ISO2001 |
| Model Number: | BK09121 |
| Minimum Order Quantity: | 100PCS |
| Price: | Negotiable |
| Packaging Details: | Cartons , Wooden Case , Pallets |
| Delivery Time: | 7 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5000 Sets Per day |
| Material: | Stainless Steel Bail, Fiberglass Reinforced Plastic. | MBL: | 0.5KN |
|---|---|---|---|
| Weight: | 0.03kgs | Dia: | 4-7mm |
| Temperature: | -60 °C Up To +60 °C | ||
| High Light: | OEM Fiber Optic Cable Accessories,7mm fiber drop wire clamp,0.5KN fiber drop wire clamp |
||
Telecom Plastic Metal For Drop Cable / Abrazadera Optica Herraje de FTTH Fibra Optica
| MODEL | T-Fish Clamp-01 |
| Dia | 4-7 |
| MBL(kN) | 0.5 |
| Weight(kg) | 0.026 |
| Material | Stainless steel bail, fiberglass reinforced plastic. |

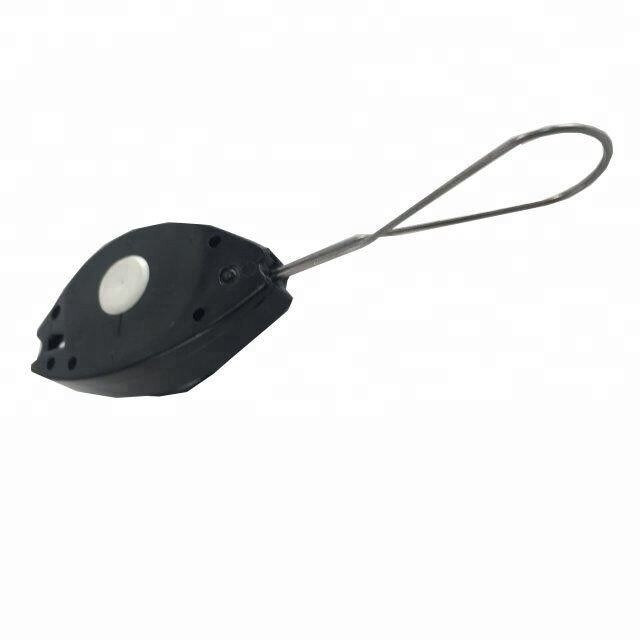

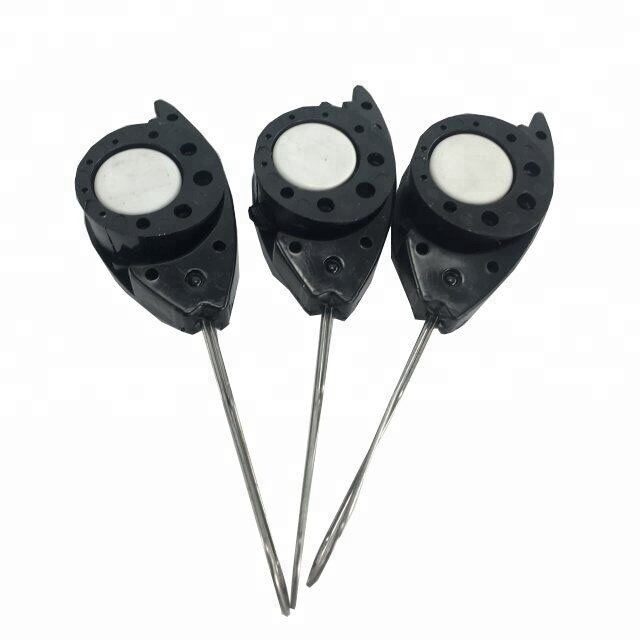

Self-adjustable optical fiber drop wire clamp FISH-01, is designed to anchor or support flat and round drop wires are aerial outdoor solution.
Also called FTTH-CLAMP, fish clamp is hand self-adjusted and very easy in installation.
This wheel type drop wire clamp mostly used with optical fiber drop cable. This drop clamping device is necessary for FTTx solutions.
Fish clamp FTTH, can be used in anchoring, turning, suspension optical fiber cable routes.
This wheel type drop wire clamp mostly used with optical fiber drop cable. This drop clamping device is necessary for FTTx solutions.
Fish clamp FTTH, can be used in anchoring, turning, suspension optical fiber cable routes.
Gavanized steel wire bail allows installations of drop wire fish clamp on a pole brackets, SS hooks. Drop wire anchoring clamps and optical fiber cable brackets are available either separately or together as assembly.
This type of FTTH drop cable clamp allows easy, installation without additional tools.
Application is similar to all wedge type self-adjusting tension clamps, but should be done according to specification.
All the assemblies passed the tensile tests, operation experience with temperatures ranging from – 60 °C up to +60 °C6 test, temperature cycling test, aging test, corrosion resistance test etc
