| Place of Origin: | CHINA |
|---|---|
| Brand Name: | HC , OEM |
| Certification: | CE , SGS , ISO2001 |
| Model Number: | G.652D |
| Minimum Order Quantity: | 100PCS |
| Price: | Negotiable |
| Packaging Details: | Cartons , Wooden Case , Pallets |
| Delivery Time: | 7 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5000 Sets Per day |
| Size: | 1*16 | Fiber Model: | G.652D |
|---|---|---|---|
| Weight: | 94kgs-103kgs | Cable Dia: | 6.3*14.6 |
| Cable Weight: | 94kgs , 96kgs | Under Max Tension: | 20.0×Cable-φ |
| High Light: | outdoor fiber optic cable GYTC8S,1x16 outdoor fiber optic cable,GYTC8S external fiber optic cable |
||

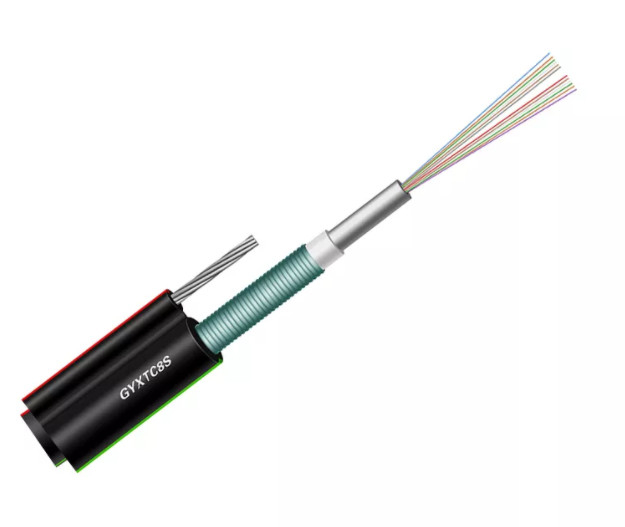

1x16 self-supporting outdoor fiber optic cable
GYXTC8S Fiber Optical Cable

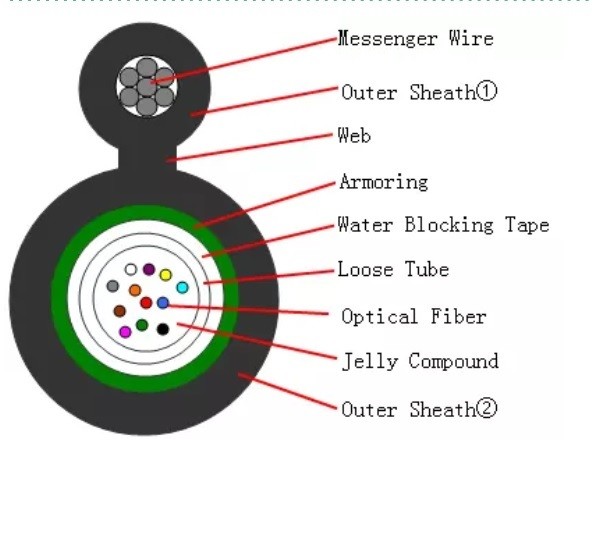

GYTC8S is a typical self-supporting outdoor fiber optic cable. It's suitable for aerial applications while its nice moisture resistance performance and crush resistance performance are suitable for duct and buried method. The mental strength member is made up of stranded wires as the supporting part that are completed with a polyethylene (PE) sheath to be figure 8 structure.
Corrugated steel tape armored and PE outer sheath provide the crush resistance and gun shot resistance features. As the central strength, the steel-wire strength member improves the tensile strength. In addition, it is surrounded by the loose tube and water blocking system.
Technical Data
| No. of fiber | 4 | 6 | 8 | 12 | 24 | |
| Fiber Model | G.652D | |||||
| Loose Tube | Material | PBT | ||||
| Diameter(±0.06)mm | 1.8 | 2.0 | 2.8 | |||
| Thickness(±0.03)mm | 0.28 | 0.3 | 0.4 | |||
| Water Blocking Layer(Material) | Water Blocking Tape | |||||
| Armoring | Material | Steel Strip | ||||
| Thickness(+0.03)mm | 0.20 | |||||
| Messenger Wire | Material | Galvanized steel strand | ||||
| Size(±0.05)(mm) | R7×0.9 | |||||
| Web | Material | MDPE | ||||
| Diameter(±0.5)mm | 2.0*3.0 | |||||
| Outer Sheath① | Material | MDPE | ||||
| Thickness(±0.1)mm | 1.3 | |||||
| Outer Sheath② | Material | MDPE | ||||
| Thickness(±0.2)mm | 1.5 | |||||
| Cable Diameter(±0.2*±0.5)mm (W×H) | 6.3*14.6 | 6.5*14.8 | 7.1*15.4 | |||
| Cable Weight(±5)kg | 94 | 96 | 103 | |||
| Min. | Without Tension | 10.0×Cable-φ | ||||
| Bending radius | Under Maximum Tension | 20.0×Cable-φ | ||||
| Temperature range (℃) |
Installation | -20~+60 | ||||
| Transport&Storage | -40~+70 | |||||
| Operation | -40~+70 | |||||
