SC APC SM 12 Core Fiber Optic Pigtail Simplex 1.5M

Basic Information
Place of Origin: CHINA
Brand Name: HC , OEM
Certification: CE , SGS , ISO2001
Model Number: BK0965
Minimum Order Quantity: 100PCS
Price: Negotiable
Packaging Details: Cartons , Wooden Case , Pallets
Delivery Time: 7 days
Payment Terms: L/C, T/T
Supply Ability: 5000 Sets Per day
Detail Information
Fiber Cores: 12 Fiber Type: G657A, G652D
Sheath Material: LSZH/PVC Insertion Loss: ≤0.3dB
Return Loss: APC≥60dB, UPC≥50dB Fiber Dolor: Blue, Orange, Green, Brown, Grey, White,
High Light:

12 Core fiber optic pigtail 1.5M


fiber optic pigtail simplex 1.5M


1.5M optical fiber pigtails

Product Description

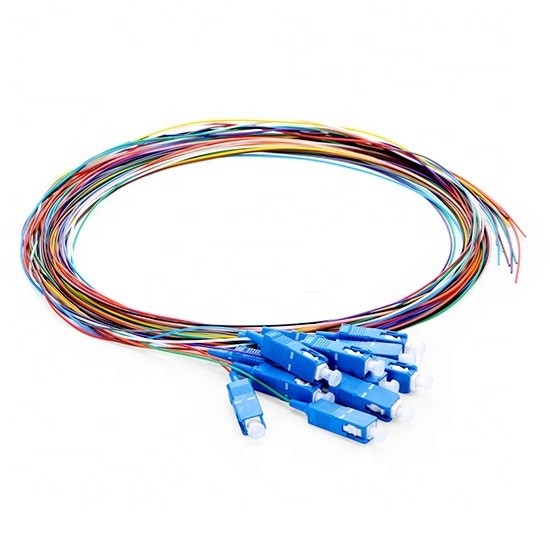

SC APC 12 Core Fiber Optic SM simplex 1.5M Optical Fiber Pigtail


Item Technical parameters
Fiber cores 12 colors
Fiber colors blue, orange, green, brown, grey, white, red, black, yellow, purple, pink, aqua green
Fiber type G657A, G652D
Sheath material LSZH/PVC
Insertion loss ≤0.3dB
Return loss APC≥60dB, UPC≥50dB



FTTH Patch cord or pigtail, refers to the drop cable ends with a connector plug, used to achieve optical active connection, also be made into a single head pigtails, and Flexible Splice, Quick connect and other products combined application, connector types are SC-PC(APC) and FC-PC(APC), for FTTH project corridor boxes, drop cable distribution boxes, FTTH fiber boxes and other forms of installation.

SC APC SM 12 Core Fiber Optic Pigtail Simplex 1.5M 0

SC APC SM 12 Core Fiber Optic Pigtail Simplex 1.5M 1
