Simplex Fiber Optic Cable Adapter Plastic Metal Material

Basic Information
Place of Origin: CHINA
Brand Name: HC , OEM
Certification: CE , SGS , ISO2001
Model Number: PA-5892
Minimum Order Quantity: 100PCS
Price: Negotiable
Packaging Details: Cartons , Wooden Case , Pallets
Delivery Time: 7 days
Payment Terms: L/C, T/T
Supply Ability: 5000 Sets Per day
Detail Information
Usage: To Join Two Fiber Optic Patch Cable Working Temperature: 140~75℃
Parameter: UPC , APC Advance: ,Low Insertional Loss, High Return Loss
Interchangeability: ≤0.2dB Storage Temperature: -40~85℃
High Light:

CE fiber optic cable adapter PA-5892


PA-5892 Simplex fiber optic cable adapter


PA-5892 OEM fiber optic adapters connectors

Product Description

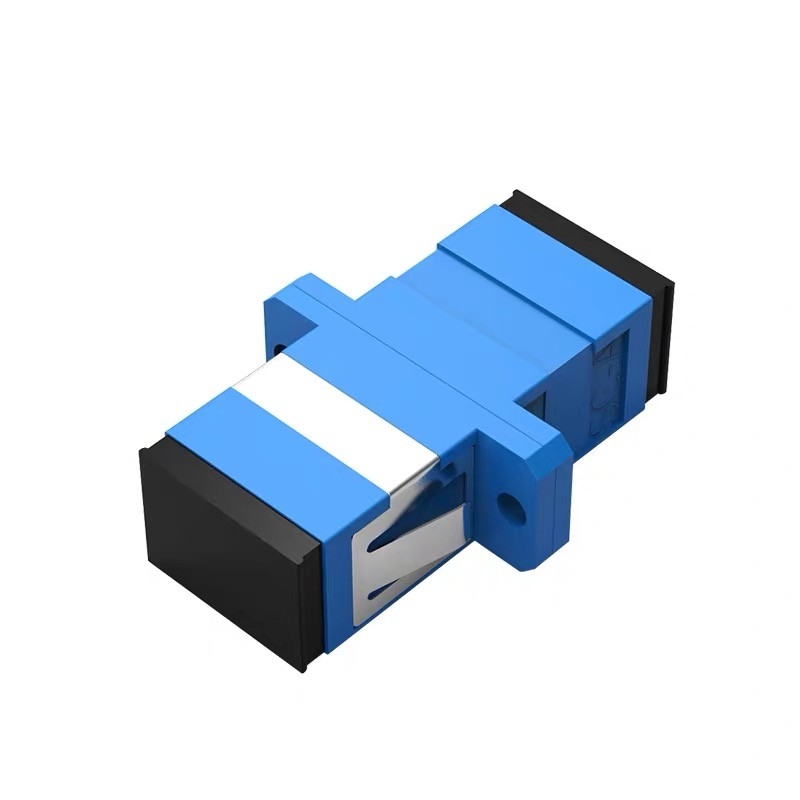

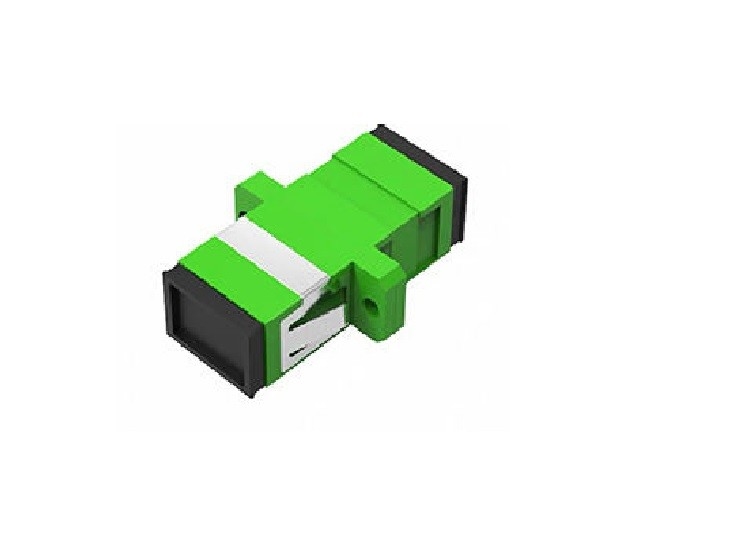

Simplex Fiber Optic Adapter With Plastic/Metal Material

Fiber optic adapters (also known as bulkheads) are used to join two fiber optic patch cables together.
They are available for use with either singlemode or multimode patch cables.



1, LC/SC/FC/ST/MPO Type Optional

2, UPC or APC Optional

3, SM or MM Optional

4, With/Without flange Optional

5, Simplex , Duplex or Quad Optional

6, Zirconia Sleeve ,Compact design

7, Low insertional loss, High return loss

8, Comply with IEC, Telcordia GR 326 and JIS standard




parameter UPC APC UPC
insertion loss ≤0.2dB ≤0.2dB ≤0.2dB
return loss ≥50dB ≥60dB ≥30dB
Durability >1000
operatingtemperature -40~75℃
storage temperature -40~85℃
interchangeability ≤0.2dB
repeatability ≤0.2dB
