| Place of Origin: | CHINA |
|---|---|
| Brand Name: | HC , OEM |
| Certification: | CE , SGS , ISO2001 |
| Model Number: | BK-6743 |
| Minimum Order Quantity: | 100PCS |
| Price: | Negotiable |
| Packaging Details: | Cartons , Wooden Case , Pallets |
| Delivery Time: | 7 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5000 Sets Per day |
| Usage: | Tower Or Pole | Material: | Hot Dip Galvanized Steel |
|---|---|---|---|
| Cable Storage Accembly Bracket: | Small Splint | Weight: | 4kgs-12kgs |
| High Light: | CE OPGW Cable Fittings,SGS cable storage bracket,Fiber cable storage bracket |
||
1,Use:

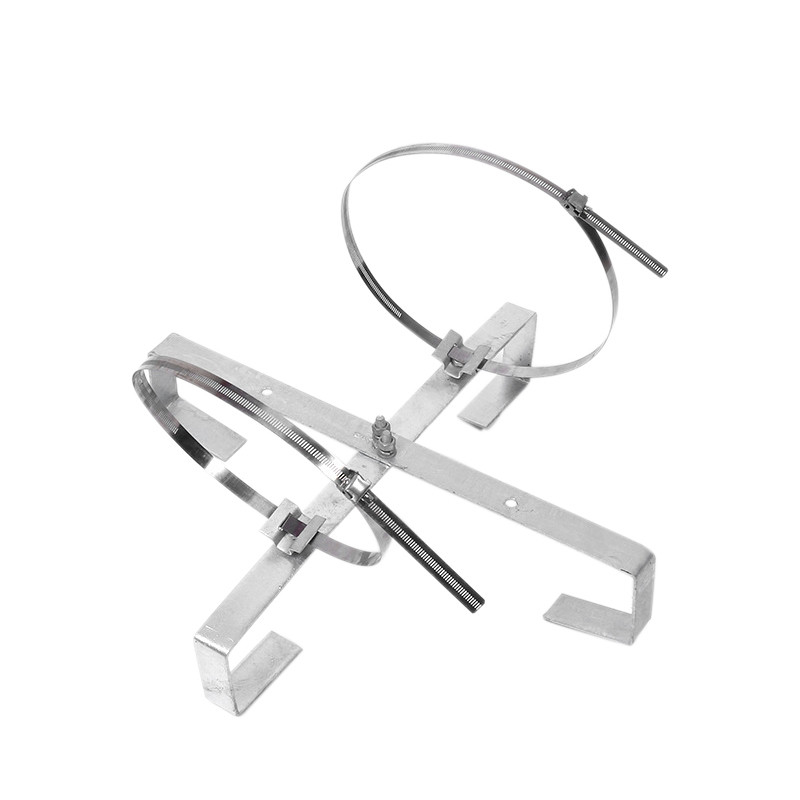

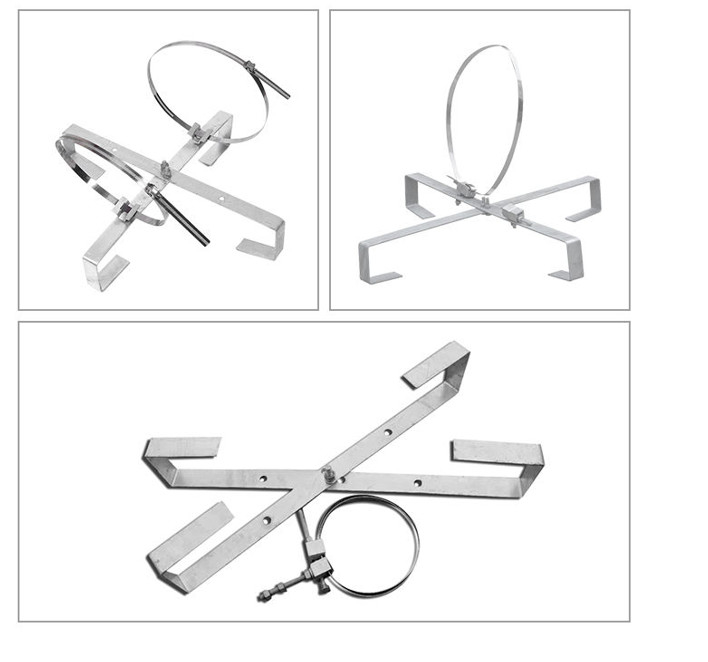

Cable storage assembly: Deposit the remaining cable on running pole or tower. Be used with joint box.
2,Model:
13.1
| Name | Model | Dimension | Collocation | Suitable Cable Range | |
| L(mm) | Weight(kg) | ||||
|
Cable Storage Assembly |
TJY 660-T | 660 | 4.1 | Small splint | The dia of ADSS cable less than 14.8mm |
| TJY 1000-T | 1000 | 7.7 | Small splint | The dia of ADSS/OPGW cable less than 14.8mm | |
| TJY 1200-T | 1200 | 11.8 | Small splint | The dia of OPGW cable less than 14.8mm | |
|
Cable Storage Assembly |
TJY 660-H* | 660 | 4.1 | Support for pole | The dia of ADSS cable less than 14.8mm |
| TJY 1000-H* | 1000 | 7.7 | Support for pole | The dia of ADSS/OPGW cable less than 14.8mm | |
| TJY 1200-D* | 1200 | 11.8 | Elbow hoop | The dia of OPGW cable less than 14.8mm | |
Instruction:
1,T---for tower H*---stainless steel hoop D*---dia of pole
2,When the cable storage assembly is used on the tower, attached two sets of small splint.
3,When the cable storage assembly installed on the pole, attached two sets of support and elbow hoop.
4,Use the pole support when the pole dia. Less than 450mm. If below, used the elbow hoop.
