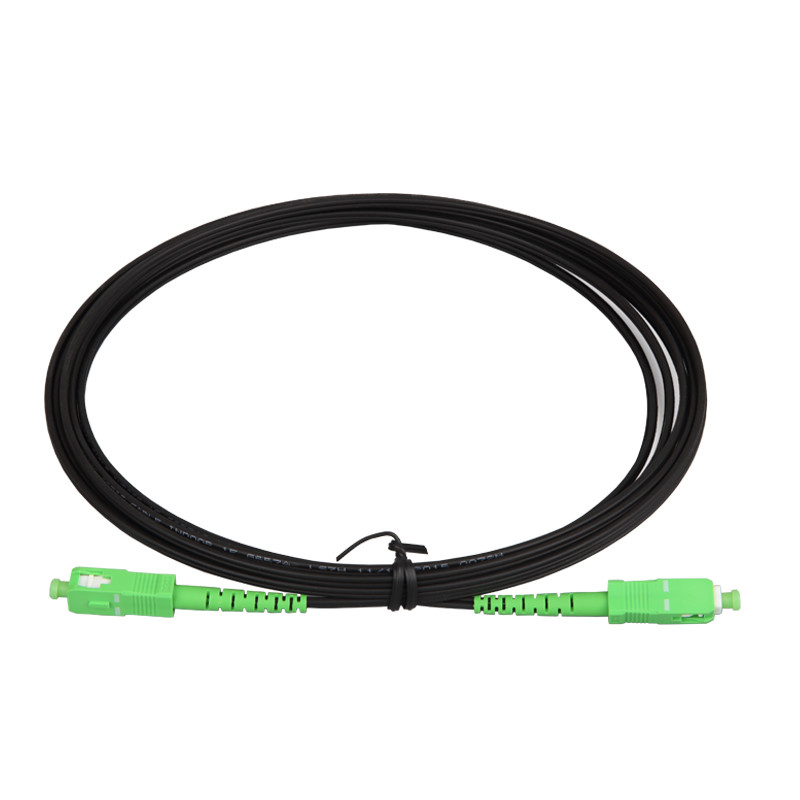

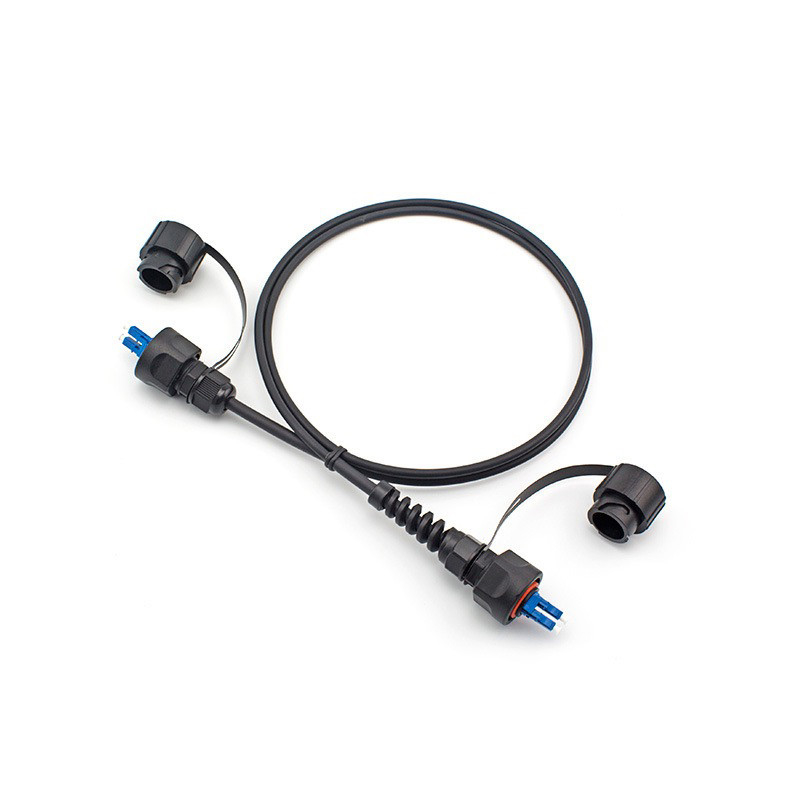

Outdoor Waterproof SM MM Optical Fibre Patch Cord

Iterm

Test Condition

Single Mode

Multi Mode

IL

UPC

SM@1310nm/1550nm MM@850nm/1300nm

≤0.5dB

≤0.5dB

APC

1310nm/1550nm

≤0.5dB

RL

UPC

SM@1310nm/1550nm MM@850nm/1300nm

≥55 dB

≥35 dB

APC

1310nm/1550nm

≥65 dB

Impulse Test

8 times

<0.1 dB

<0.1 dB

Vibration Test

10-60Hz,1mm

<0.1 dB

<0.1 dB

Durability Test

>1000 times

<0.1 dB

<0.1 dB

Tensile Test

> 100N

<0.1 dB

<0.1 dB

T C

-25℃~+70℃, 2 hours

<0.2 dB

<0.2 dB

High Temperature

+80℃, 2 hours

<0.2 dB

<0.2 dB

Low Temperature

-40℃, 2 hours

<0.2 dB

<0.2 dB

Humidity&Heat

+40℃,90-95%RH, 2 hours

<0.2 dB

<0.2 dB
