| Place of Origin: | CHINA |
|---|---|
| Brand Name: | HC , OEM |
| Certification: | CE , SGS , ISO2018 |
| Model Number: | oxy 0800 , oxy 0880 |
| Minimum Order Quantity: | 100 |
| Price: | Negotiable |
| Packaging Details: | Cartons , Wooden Case , Pallets |
| Delivery Time: | 7 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5000 Sets Per day |
| Material: | Aluminum Alloy | Type: | OPGW Fiber Cable Fittings |
|---|---|---|---|
| Color Label: | Green , Black , Red , Blue | Weight: | 1.27KGS-4KGS |
| Length: | 1100MM-3000MM | The Grip Strength: | The Grip Strength Of The Clamp Is Bigger Than 24% Of The Rated Tensile Strength |
| High Light: | OPGW fiber optic suspension clamp,Aluminum Alloy Suspension Clamp 3000mm,OPGW aluminum alloy suspension clamp |
||

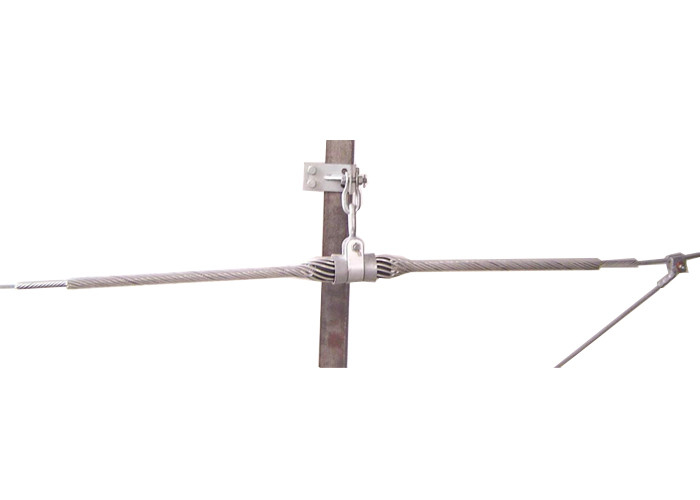

Aluminium Alloy Suspension set Clamp for OPGW Fiber cable
1, Material : Aluminium Alloy Rods
2, For Medium And Long Span
3. Specification of suspension set:
| Model |
Cable Dia. range (mm) |
Length of Structural Reinforcing Rods (mm)
|
Length of Outer Rods (mm) |
Weight(kg)
|
Color Code |
Collocate | |
| AGS Clamp | Link Fittings | ||||||
| OXY 0800 | 7.4-8.0 | 1650 | 1100 | 1.27 | Blue |
Referrence
Table 16.3
|
Reference Appendix1 |
| OXY 0880 | 8.1-8.8 | 1650 | 1100 | 1.37 | Green | ||
| OXY 0960 | 8.9-9.6 | 1690 | 1140 | 1.49 | Yellow | ||
| OXY 1010 | 9.7-10.1 | 1690 | 1140 | 1.49 | Black | ||
| OXY 1060 | 10.2-10.6 | 1690 | 1140 | 1.56 | White | ||
| OXY 1110 | 10.7-11.1 | 1720 | 1140 | 1.57 | Red | ||
| OXY 1160 | 11.2-11.6 | 1760 | 1180 | 1.72 | Blue | ||
| OXY 1170 | 11.7-11.7 | 1840 | 1240 | 1.88 | Green | ||
| OXY 1200 | 11.8-12.0 | 1840 | 1240 | 1.88 | Yellow | ||
| OXY 1270 | 12.1-12.7 | 1860 | 1240 | 1.89 | Black | ||
| OXY 1290 | 12.8-12.9 | 1960 | 1240 | 2.12 | White | ||
| OXY 1360 | 13.0-13.6 | 1960 | 1320 | 2.2 | Red | ||
| OXY 1410 | 13.7-14.1 | 2000 | 1320 | 2.22 | Blue | ||
| OXY 1430 | 14.2-14.3 | 2000 | 1320 | 2.22 | Green | ||
| OXY 1450 | 14.4-14.5 | 2120 | 1440 | 2.61 | Yellow | ||
| OXY 1510 | 14.6-15.1 | 2120 | 1440 | 2.62 | Blue | ||
| OXY 1580 | 15.2-15.8 | 2180 | 1440 | 2.65 | White | ||
| OXY 1600 | 15.9-16.0 | 2400 | 1620 | 3.05 | Red | ||
| OXY 1690 | 16.1-16.9 | 2400 | 1620 | 3.05 | Blue | ||
| OXY 1730 | 17.0-17.3 | 2400 | 1620 | 3.2 | Green | ||
| OXY 1800 | 17.4-18.0 | 2400 | 1620 | 3.3 | Yellow | ||
| OXY 1840 | 18.1-18.4 | 2400 | 1620 | 3.3 | Black | ||
| OXY 1880 | 18.5-18.8 | 2400 | 1620 | 3.55 | White | ||
| OXY 1890 | 18.9-18.9 | 2400 | 1620 | 3.55 | Red | ||
| OXY 1990 | 19.0-19.9 | 2400 | 1620 | 3.55 | Blue | ||

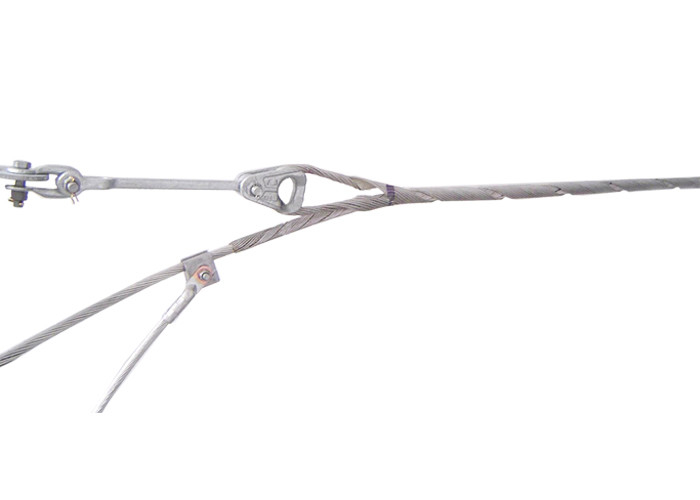

Specification of suspension set:(The grip strength of the clamp is bigger than 24% of The preformed dead end clamp are the first to offer the cabled loop, a feature that provides more durability, easier tensioning and adaptability to multiple guyi
The Max. unilateral angle of the single suspension will be 15º－18º, For double suspension will be 30º－36º.
Packing: Wooden case , Carton Etc.
