| Place of Origin: | CHINA |
|---|---|
| Brand Name: | HC , OEM |
| Certification: | CE , SGS , ISO2018 |
| Model Number: | AXY Series |
| Minimum Order Quantity: | 100 |
| Price: | Negotiable |
| Packaging Details: | Cartons , Wooden Case , Pallets |
| Delivery Time: | 7 days |
| Payment Terms: | L/C, |
| Supply Ability: | 5000 Sets Per day |
| Material: | Aluminum , Aluminum Clad Steel , Galvanized Steel | Dia. Range: | 9-15MM |
|---|---|---|---|
| Span: | 500-600 Span | Link Fitting: | ZH-7 , U-7 |
| Holding Strength: | 50-60KN | Length: | 1600-1200MM |
| High Light: | 600M Span ADSS tension set,60KN ADSS tension set,600M Span ADSS tension clamp |
||
500M-600M Span Tension Set For ADSS fiber Cable

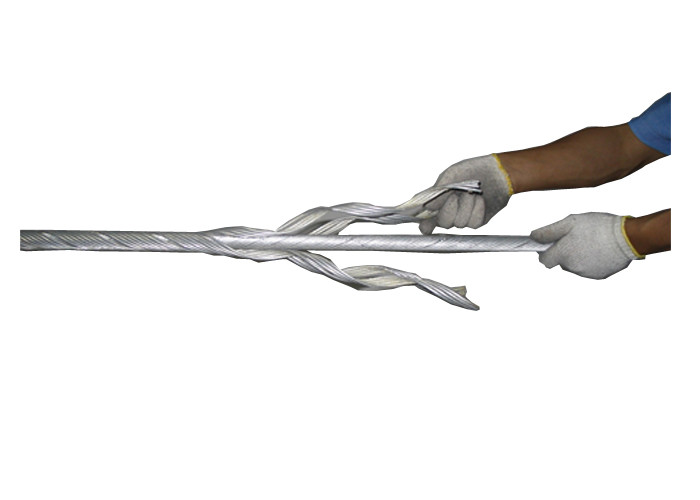

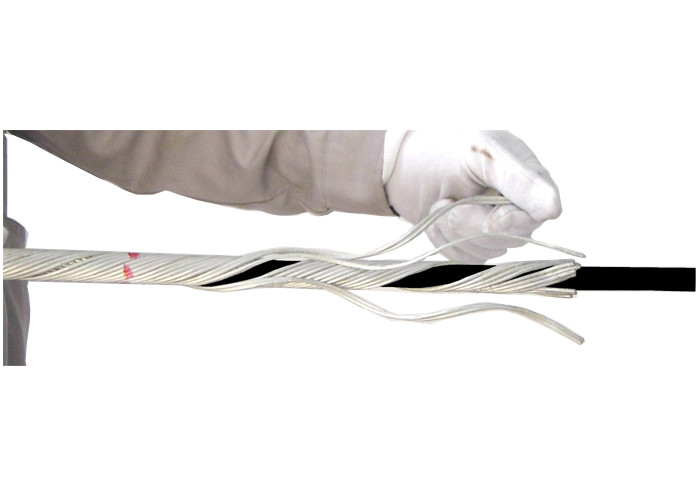

The Right installation of Tension set is very importand . Firtly need to hanging point and leave a suspension mark in the corresponding place on the cable ,which will be the centre position for winding the preformed rods.Make the center of intallation mark on a single Structural Reinforcing Rod aiming at the suspension point marked on the 1st step, and wind for 2~3 circles towards the both ends.According to the former step, wind the second structural reinforcing rod on the cable.n the same way, finish winding the rest rods (leaving both ends of the rods relaxed)
| Model |
Available Dia. of Cable(mm) |
Length of Outer Rods (mm) |
Length of Structural Reinforcing Rods (mm) |
Weight(kg) | UniversalScheme | Available Span(m) | ||
| AGS Clamp | Link Fittings | |||||||
| AXY 0960 400 | 9.0-9.6 | 1100 | 1600 | 1.53 |
Referrence Table 16.3 |
ZH-7 | U-7 | 300/400 |
| AXY 1010 400 | 9.7-10.1 | 1100 | 1600 | 1.59 | ZH-7 | U-7 | 300/400 | |
| AXY 1060 400 | 10.2-10.6 | 1100 | 1600 | 1.69 | ZH-7 | U-7 | 300/400 | |
| AXY 1110 400 | 10.7-11.1 | 1100 | 1600 | 1.69 | ZH-7 | U-7 | 300/400 | |
| AXY 1160 400 | 11.2-11.6 | 1100 | 1600 | 1.76 | ZH-7 | U-7 | 300/400 | |
| AXY 1170 400 | 11.7-11.7 | 1100 | 1600 | 1.76 | ZH-7 | U-7 | 300/400 | |
| AXY 1200 400 | 11.8-12.0 | 1200 | 1720 | 1.9 | ZH-7 | U-7 | 300/400 | |
| AXY 1270 400 | 12.1-12.7 | 1200 | 1720 | 1.91 | ZH-7 | U-7 | 300/400 | |
| AXY 1290 400 | 12.8-12.9 | 1200 | 1720 | 2.08 | ZH-7 | U-7 | 300/400 | |
| AXY 1360 400 | 13.0-13.6 | 1300 | 1840 | 2.25 | ZH-7 | U-7 | 300/400 | |
| AXY 1410 400 | 13.7-14.1 | 1300 | 1840 | 2.25 | ZH-7 | U-7 | 300/400 | |
| AXY 1430 400 | 14.2-14.3 | 1300 | 1840 | 2.44 | ZH-7 | U-7 | 300/400 | |
| AXY 1450 400 | 14.4-14.5 | 1300 | 1840 | 2.44 | ZH-7 | U-7 | 300/400 | |
| AXY 1510 400 | 14.6-15.1 | 1300 | 1840 | 2.44 | ZH-7 | U-7 | 300/400 | |
| AXY 1270 500 | 12.1-12.7 | 1260 | 1760 | 2.0 | ZH-7 | U-7 | 400/500 | |
| AXY 1290 500 | 12.8-12.9 | 1260 | 1760 | 2.22 | ZH-7 | U-7 | 400/500 | |
| AXY 1360 500 | 13.0-13.6 | 1300 | 1860 | 2.32 | ZH-7 | U-7 | 400/500 | |
| AXY 1410 500 | 13.7-14.1 | 1300 | 1860 | 2.32 | ZH-7 | U-7 | 400/500 | |
| AXY 1430 500 | 14.2-14.3 | 1300 | 1860 | 2.32 | ZH-7 | U-7 | 400/500 | |
| AXY 1450 500 | 14.4-14.5 | 1360 | 1940 | 2.54 | ZH-7 | U-7 | 400/500 | |
| AXY 1510 500 | 14.6-15.1 | 1360 | 1940 | 2.64 | ZH-7 | U-7 | 400/500 | |
| AXY 1580 500 | 15.2-15.8 | 1360 | 1940 | 2.64 | ZH-7 | U-7 | 400/500 | |
| AXY 1600 500 | 15.9-16.0 | 1420 | 2040 | 2.87 | ZH-7 | U-7 | 400/500 | |
| AXY 1690 500 | 16.1-16.9 | 1420 | 2040 | 2.87 | ZH-7 | U-7 | 400/500 | |
| AXY 1270 600 | 12.1-12.7 | 1300 | 1800 | 2.03 | ZH-7 | U-7 | 500/600 | |
| AXY 1290 600 | 12.8-12.9 | 1300 | 1800 | 2.23 | ZH-7 | U-7 | 500/600 | |
| AXY 1360 600 | 13.0-13.6 | 1360 | 1920 | 2.34 | ZH-7 | U-7 | 500/600 | |
| AXY 1410 600 | 13.7-14.1 | 1360 | 1920 | 2.35 | ZH-7 | U-7 | 500/600 | |
| AXY 1430 600 | 14.2-14.3 | 1360 | 1920 | 2.55 | ZH-7 | U-7 | 500/600 | |
