Black Plastic Anchoring Clamp ADSS Cable Fittings

Basic Information
Place of Origin: CHINA
Brand Name: HC , OEM
Certification: CE , SGS , ISO2001
Model Number: PA-04
Minimum Order Quantity: 100
Price: Negotiable
Packaging Details: Cartons , Wooden Case , Pallets
Delivery Time: 7 days
Payment Terms: L/C, T/T
Supply Ability: 5000 Sets Per day
Detail Information
Min Tension: 800Kn Cable Dia: 16-18mm
Installation: Connect With Cable Function: Mounting
Color: Black Pull Hook Material: Anti Corrosion Rod
High Light:

Black ADSS Cable Fittings


ADSS anchoring clamp


Plastic anchoring clamp

Product Description

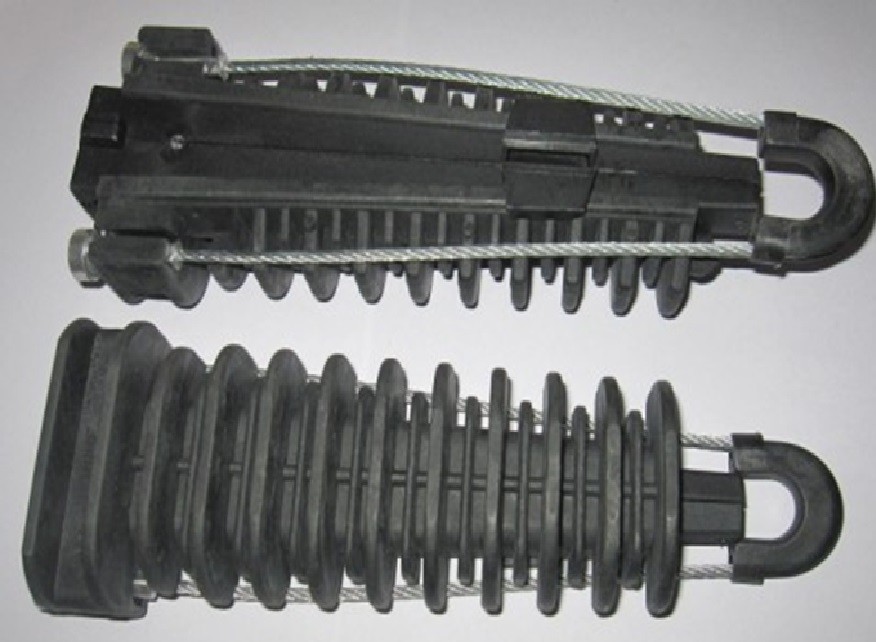

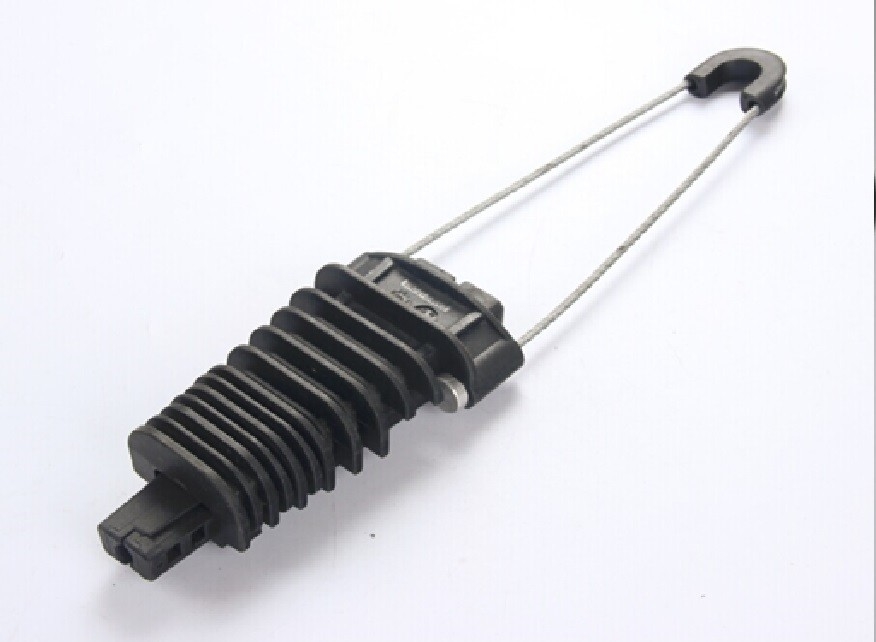

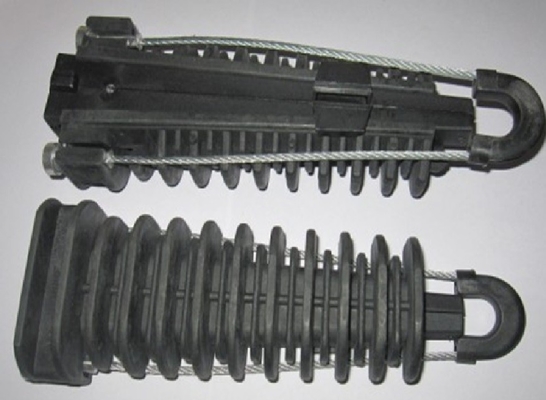

Anchoring Clamp Plastic type for ADSS

The plastic Material of Anchoring Clamp for ADSS main line.The adjustable anchor clamp is designed to anchor insulated ADSS conductors to the pole or wall. The clamp is composed of a body, wedges and removable and adjustable bail or pad.The ADSS anchor clamp plastic are design to supporting the neutral messenger,the wedge can be self-adjusting. Pilot wires or street lighting conductor are led alongside the clamp. The self opening is featured by an integrate spring facilities for easily insert the conductor into the clamp. Standard: NFC 33-042.

Material of adjustable anchor clamp

The clamp body, the main mechanical component is manufactured in heavy duty weatherproof synthetic material.
The wedge, made from synthetic material exerts necessary mechanical pressure in retaining the cable in the body of the clamp.
The pull hook is made from anti corrosion rod.
For anchoring isolated coaxial and unipolar cables.

Feature of adjustable tension clamp

1.Simple and fast installation requiring no tools.
2.Suits to all field configurations.
3.Possible to mount on pole line hardware with open or closed eye.
4.Mechanical traction resistant.
5.Supports industrial duty tension.
6.Corrosion resistant.

For the correct installing cable dead end clamp, the following steps are recommended:

  • Loosen the mooring hook from the anchor clamp.

  • Place the hook en the place to be mooring point or support, fixing it inside the body of the clamp

  • Remove the wedge from its base and then place the cable within the clamp.

  • Replace the wedge to its corresponding position and proceed to tense the cable taut.


Models HC-1012 AD-1214 AD-1416 HC-1618
Cable diameter(mm) 10 ~ 12 12 ~ 14 14 ~ 16 16 ~ 18
Min Tension (daN) 800 800 800 800
