Waterproof ADSS Cable Fittings Anchor Clamp For AB Cable

Basic Information
Place of Origin: CHINA
Brand Name: HC , OEM
Certification: CE , SGS , ISO2001
Model Number: AC-25, 50
Minimum Order Quantity: 100
Price: Negotiable
Packaging Details: Cartons , Wooden Case , Pallets
Delivery Time: 7 days
Payment Terms: L/C, T/T
Supply Ability: 5000 Sets Per day
Detail Information
Weight: 18-20kgs Conductor Dia: 3-7
Conductor Square: 16-25mm2 Packing Size: 38*36*27
Function: Loosen The Hook Advantage: Waterproof
High Light:

Waterproof ADSS Cable Fittings AC-25


OEM anchor clamp for ab cable AC-25


SGS anchor clamp for ab cable AC-25

Product Description

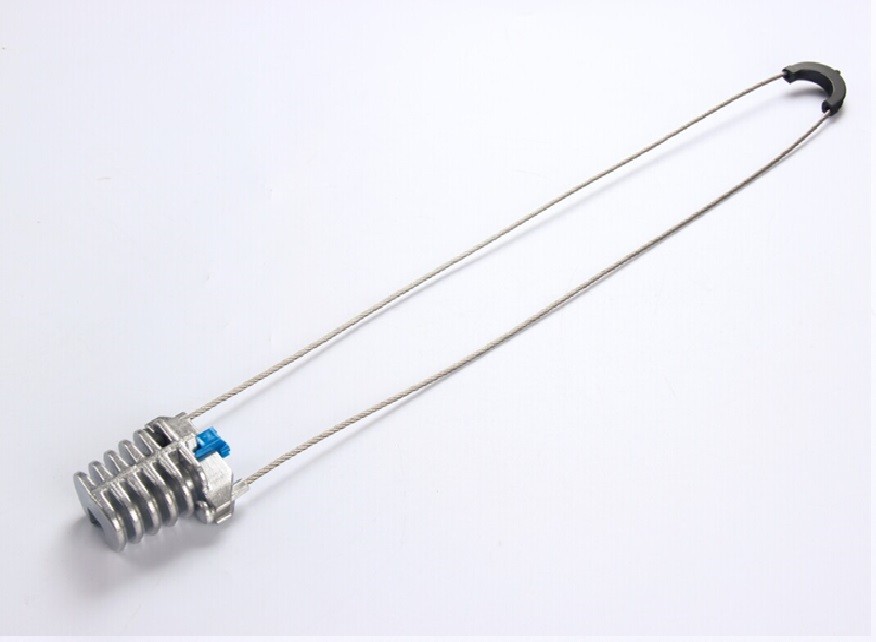

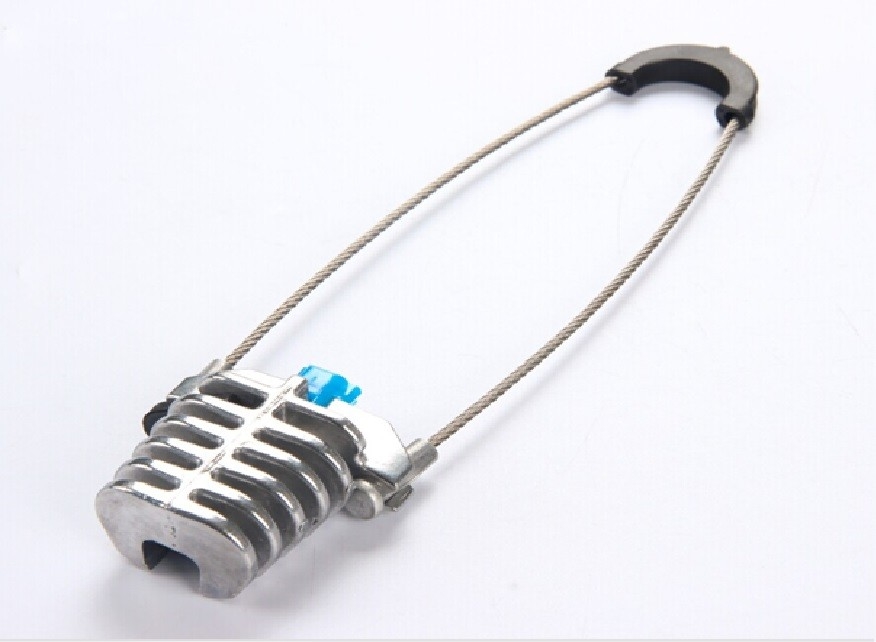

 Teeth Model Of AC-25 Series Anchoring Clamp

HC is professional tension clamp manufacturers and suppliers.Dead end clamp for ab cable service line.The dead end clamp is designed to anchor insulated service lines with 2 or 4 conductors to the pole or wall. The clamp is composed of a body, wedges and removable and adjustable bail or pad. One core Anchor clamps are design to supporting the neutral messenger,the wedge can be self-adjusting. Pilot wires or street lighting conductor are led alongside the clamp. The self opening is featured by an integrate spring facilities for easily insert the conductor into the clamp. Standard: NFC 33-042.

Material of dead end clamp

The clamp body, the main mechanical component is manufactured in heavy duty weatherproof synthetic material.
The wedge, made from synthetic material exerts necessary mechanical pressure in retaining the cable in the body of the clamp.
The pull hook is made from anti corrosion rod.
For anchoring isolated coaxial and unipolar cables.

Feature of dead end clamp

1.Simple and fast installation requiring no tools.
2.Suits to all field configurations.
3.Possible to mount on pole line hardware with open or closed eye.
4.Mechanical traction resistant.
5.Supports industrial duty tension.
6.Corrosion resistant.

For the correct dead end clamp installation, the following steps are recommended:

  • Loosen the mooring hook from the anchor clamp.
  • Place the hook en the place to be mooring point or support, fixing it inside the body of the clamp
  • Remove the wedge from its base and then place the cable within the clamp.
  • Replace the wedge to its corresponding position and proceed to tense the cable taut.

Dead end clamp specification


Models AC-25-* AC-25-*-500 AC-50-* AC-50-*-500
Cable diameter(mm) 3 ~ 7 3 ~ 7 6 ~ 10 6 ~ 10
Min Tension (daN) 700 700 1000 1000
L(mm) 210 500 210 500
