| Place of Origin: | CHINA |
|---|---|
| Brand Name: | HC , OEM |
| Certification: | CE , SGS , ISO2001 |
| Model Number: | BK8792 |
| Minimum Order Quantity: | 100PCS |
| Price: | Negotiable |
| Packaging Details: | Cartons , Wooden Case , Pallets |
| Delivery Time: | 7 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5000 Sets Per day |
| Material: | With Copper Wire | Feature: | FRP Fish Tape |
|---|---|---|---|
| Function: | Carry Convenience | Advance: | Stron Corrosion Resistance |
| Marks: | Meter Mark | Application: | Tools For Pulling Cable |
| High Light: | cable pulling duct rod 14mmx300m,SGS Fiberglass Duct Rodder,14MMx300M Fiberglass Duct Rodder |
||

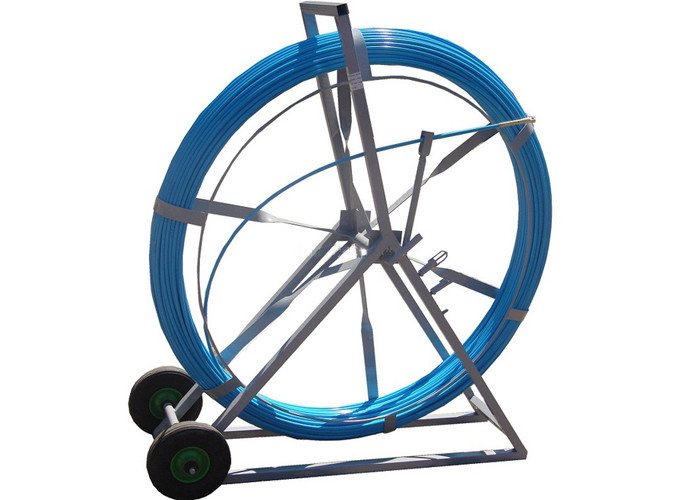

Features and Benefits
1. Strong non-conductive fiberglass rod construction
2. Copper plated drawing head
3. Good elasticity
4.Corrosion resistance is strong
| Technical date of cable push pull rods | |||
| Specifications | Rod diameter (mm) | Φ4.5, Φ6, Φ8, Φ10, Φ11, Φ12, Φ13, Φ14, Φ16,....... | |
| Rod length (m) | 30m~500m | ||
| Frame Spec.(mm) | 1300mm x 450mm x 1330mm 1200mm x 420mm x 1220mm 980mm x 350mm x 1000mm 680mm x 240mm x 700mm 4200mm x 1800mm x 400mm |
||
| Materials | Fiber glass rod inner, | Extruded by fiber glass and high strength resin at high temperature | |
| Fiber glass rod outer | High density polyethylene coating | ||
| Metal frame | Steel with high-temperature sprayed plastic or hot dip galvanized | ||
| Physical properties | Fiber glass content | 75-80% | |
| Density | >1.9gr/cm3 | ||
| Working environment | -40°C to +80°C | ||
| Minimum pulling strength | 4000N +/-5% | ||
| Consistency of rod | 137gr/m | ||
| Flexural modulus | >46.500Mpa | ||
| Elongation at break | 2.5-3% | ||
| Min bending radius | 388mm | ||
6mm cable push pull rods:
14mm cable push pull rods:
