| Place of Origin: | CHINA |
|---|---|
| Brand Name: | HC , OEM |
| Certification: | CE , SGS , ISO2001 |
| Model Number: | BK-49421 |
| Minimum Order Quantity: | 100PCS |
| Price: | Negotiable |
| Packaging Details: | Cartons , Wooden Case , Pallets |
| Delivery Time: | 7 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5000 Sets Per day |
| Keinforcement: | E-glassfiber | Fiberglass Cntent Of Inner Part: | 75-80% |
|---|---|---|---|
| Density: | > 1.9g/cm3 | Working Temperature: | -40°C To + 80°C |
| Minimum Pulling Strength: | 4000 N±5% | Tensile Modulus: | >46.50Mpa |
| High Light: | CE Fiberglass Duct Rodder,Continuous Fiberglass Duct Rodder,mini cobra duct rodder |
||
Fiberglass Rod applies in tow lead-rope through a pipe,it is auxiliary means. Surface smooth
and high resilience,so the FRP perforator with ease passes the narrow channel.

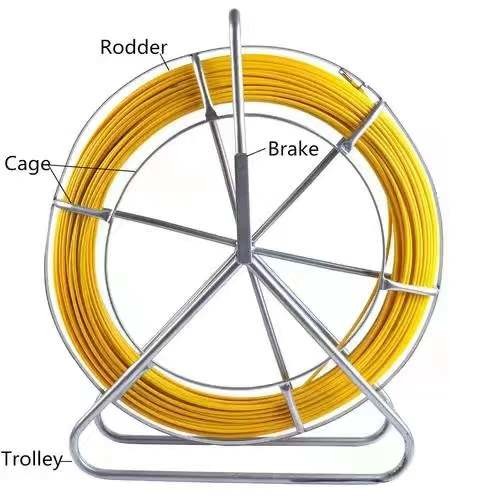

perforator consists of two parts:
the glass fiber strengthen the level, the high-pressured low density polyethylene protective layer
(smooth, firm ,can resist the adverse circumstance).
It has time-saving reducing effort, improving efficiency, etc,And can be used for telecom cables,
cable pipe and cleaning and plastic pipe of cloths to put.when use draws out the FPR
pole by the pulley, then with a corresponding metal joint, penetrates in the pipeline.
When cleaning,guide-head will drive cleaning tools to clean the pipe;When arranges the cable,
you may first leads the steel wire or the iron wire, then enters the pipe with the steel
wire or the iron wire hauling cable .
|
Fiberglass reinforced composited core |
|
|
keinforcement |
E-glassfiber |
|
Fiberglass content of inner part |
75-80% |
|
Material of the pulling rod |
Fiberglass(inner) high density polyethylene(outer) |
|
density |
> 1.9g/cm3 |
|
Working temperature |
|
|
Minimum pulling strength |
4000 N±5% |
|
Tensile modulus |
>46.50Mpa |
|
Consistency of rod |
137g/m |
|
Flexural modulus |
>46.50Mpa |
|
Elongation at break |
2.5-3% |
|
Min.bending radius |
380mm |
|
Polyethylene cover |
|
|
Tensile strength |
>15N/mm2 |
|
Environmental stress & crack resistance |
>1000 hr. |
|
Heat stability |
ok |
|
Carbon black |
ok |
|
Specifications |
|
|
rod diameter(mm) |
4.5,6,8,10,11,12,13,14,15,16,18 |
|
rod length (meter) |
30-500 |
|
reel size (mm) |
1300x450x1330, 1200x420x1220, 980x350x1000, 680x240x700,420x180x400 |
