| Place of Origin: | CHINA |
|---|---|
| Brand Name: | HC , OEM |
| Certification: | CE , SGS , ISO2001 |
| Model Number: | BK-41942 |
| Minimum Order Quantity: | 100PCS |
| Price: | Negotiable |
| Packaging Details: | Cartons , Wooden Case , Pallets |
| Delivery Time: | 7 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5000 Sets Per day |
| Usage: | For Garden | Diameter: | Φ8,Φ10,Φ11,Φ12,Φ13,Φ14,Φ15,Φ16 |
|---|---|---|---|
| Length: | 100mm-400mm | Breaking Tension: | 2.5T |
| Glassfiber Density: | 150g/m | Material: | Imported Engineering Plastic ABS |
| High Light: | 8mm frp duct rodder,frp duct rodder,8mm rodder |
||
FRP pull rod,glass fiber duct rod,duct rod
| Technical Date of Fiberglass Duct Rodder | |||
| Specification | Rod Diameter (mm) | Φ8,Φ10,Φ11,Φ12,Φ13,Φ14,Φ15,Φ16 | |
| Rod Length (m) | 100-400 | ||
| Frame Spec.(mm) | 800x450x900,900x450x1000,1000x450x1200,1300x450x1500,1400x450x1600 | ||
| Material: | Fiber glass rod inner | Extruded by fiber glass and high strength resin at high temperature | |
| Fiber glass rod outer | High Density polyethylene coating | ||
| Metal Frame | Steel with high-temperature sprayed plastic or hot dip galvanized | ||
| Working environment | -40°C to +80°C | ||
| Min Bend Radius | 295mm | ||
| Breaking tension | 2.5T | ||
| Glassfiber density | 150g/m | ||
| Material | imported engineering plastic ABS | ||

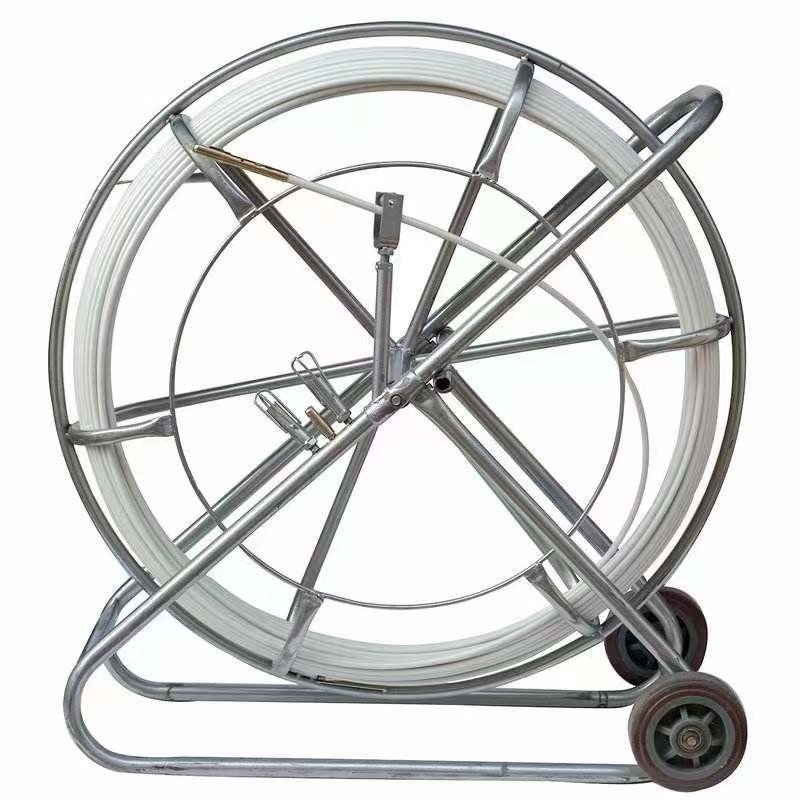

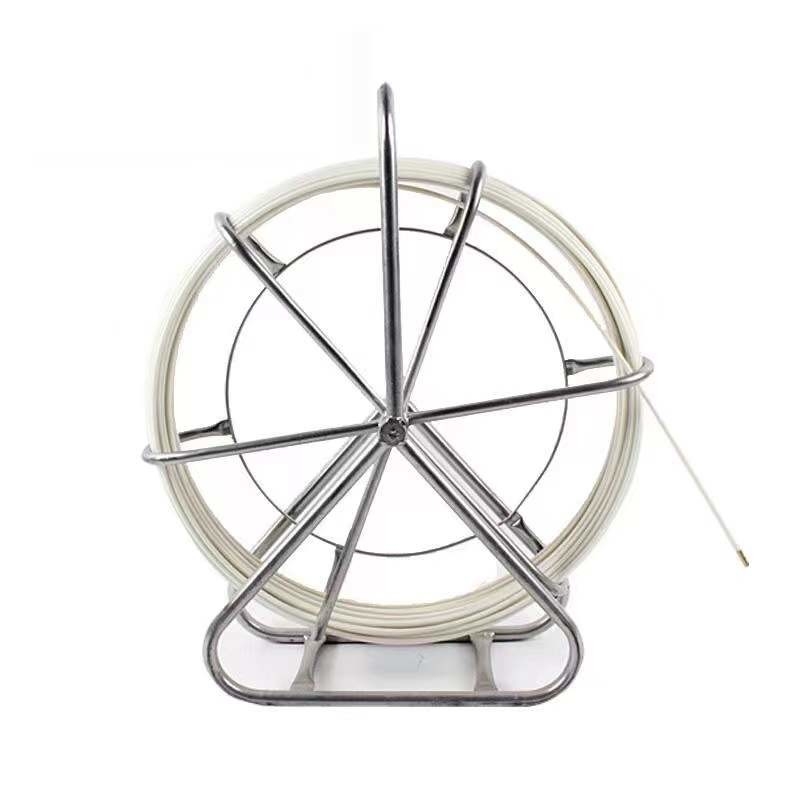

Product introduction
Duct Rodder applies in tow lead rope through a pipe, it is auxiliary means. Surface smooth and high resilience, so the FRP perforator with ease passes the narrow channel.
2. Perforator consists of two parts: the glass fiber strengthen the level, the high-pressured low density polyethylene protective layer(smooth, firm , can resist the adverse circumstance). It has time saving reducing effort, improving efficiency, etc.
3.It can be used for telecom cables, cable pipe and cleaning and plastic pipe of cloths to put.When use draws out the FPR
pole by the pulley, then with a corresponding metal joint, penetrates in the pipe line.
4.When cleaning, guiding head will drive cleaning tools to clean the pipe.When arranges the cable, you may first leads the steel wire or the iron wire, then enters the pipe with the steel wire or the iron wire hauling cable.
