| Place of Origin: | CHINA |
|---|---|
| Brand Name: | HC , OEM |
| Certification: | CE , SGS , ISO2018 |
| Model Number: | FTL 1170 130 , FTL 1430 135 |
| Minimum Order Quantity: | 100 |
| Price: | Negotiable |
| Packaging Details: | Cartons , Wooden Case , Pallets |
| Delivery Time: | 7 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5000 Sets Per day |
| Material: | PVC | Type: | Fiber Cable Fittings |
|---|---|---|---|
| Span: | 100m-1000m | Length: | 1300MM-1700MM |
| No.: | 6 Pieces | Dia Range: | 14.1mm-19.3mm |
| High Light: | pvc spiral vibration damper 1300mm-1700mm,1300mm-1700mm pvc spiral vibration damper,1700mm pvc spiral vibration damper |
||

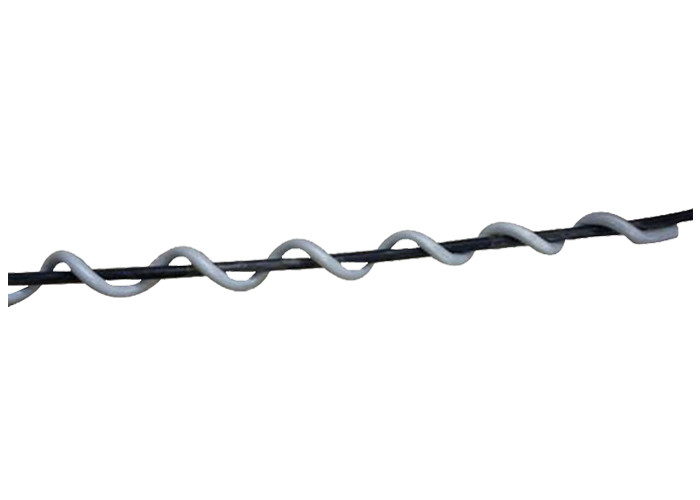

PVC Spiral Vibration Damper
When choosing the damper, two factors should be taken into consider, one is damper weight, the other is diameter of the cable. Considering all mainly factors of the OPGW fiber, such as Tensility, wind speed, landform…, and so on. Then make the decision of damper model. Choose of weight
10.2 Specification
| Model | Dia. Range(mm) | Length of gripping section (mm) | Total Length(mm) | Weight(kg) |
| FTL 1170 130 | 8.30-11.70 | 250 | 1300 | 0.28 |
| FTL 1430 135 | 11.71-14.30 | 250 | 1350 | 0.30 |
| FTL 1930 167 | 14.31-19.30 | 330 | 1670 | 0.66 |
