660mm Spiral Vibration Dampers PVC Plastic Insulator Top Tie

Basic Information
Place of Origin: CHINA
Brand Name: HC , OEM
Certification: CE , SGS , ISO2001
Model Number: HC-1017
Minimum Order Quantity: 100
Price: Negotiable
Packaging Details: Cartons , Wooden Case , Pallets
Delivery Time: 7 days
Payment Terms: L/C, T/T
Supply Ability: 5000 Sets Per day
Detail Information
Material: High Elasticity PVC Function: To Prevent Slip
Color: Gray , Black Application Voltage: Voltage To 15kV
Length: 660mm Suitable Dia: 27.96mm
High Light:

660mm Spiral Vibration Dampers


CE Spiral Vibration Dampers


PVC insulator top ties

Product Description

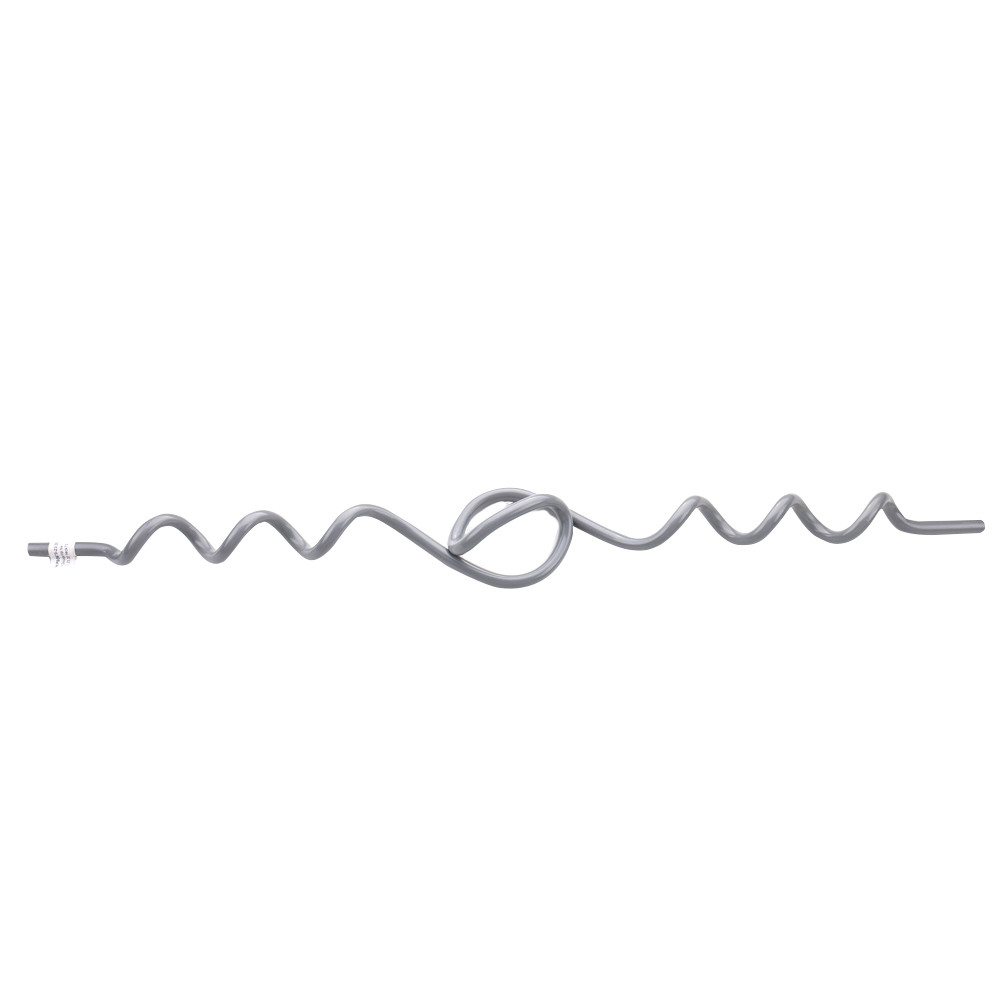

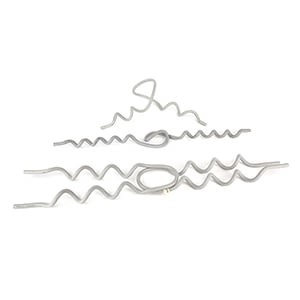

PVC plastic insulator top tie

PVC plastic single side ties are intended for use with covered conductors and side-mounted tie top insulators on arm less construction.Line angles of up to 15°can be accommodated when used with any plastic covered conductors.

PVC plastic single side ties
Plastic insulator tie are also named distribution tie,insulator tie are suitable used for fixing insulated conductors and vertically-mounted tie top insulators on crossarms or pole-top-mounted in the distribution line.Line angles of up to 15°can be accommodated.To insure proper fit and service life, it is recommended that only insulators corresponding to C Neck, F Neck be used.The neck diameters and groove height dimensions appear in ANSI Standard for low and medium voltage pin type insulators and also at the beginning of each listing.

Insulator tie wire are mainly two types:
1. Top ties: fix the insulated conductor on the top groove of the insulator.
2. Side ties: fix the insulated conductor on the side groove of the insulator.

Material of distribution tie

High elasticity PVC,it can effectively prevent the insulated conductors from slipping out of the insulators during operation.


Single top insulator tie

Plastic insulator tie,insulator tie,insulator tie wire, distribution tie, tie wire distribution

Fixed insulator line post neck Ø 57mm


Min. Max.
1 HC-1017-57 7.51 10.17 660±25
2 HC-1373-57 10.18 13.73 660±25
3 HC-1855-57 13.74 18.55 711±25
4 HC-2338-57 18.56 23.38 787±25
5 HC-2795-57 23.39 27.95 860±25
6 HC-3300-57 27.96 33.00 965±25

Fixed insulator line post neck Ø 73mm


Min. Max.
1 HC-1017-73 7.51 10.17 660±30
2 HC-1373-73 10.18 13.73 711±30
3 HC-1855-73 13.74 18.55 762±30
4 HC-2338-73 18.56 23.38 812±30
5 HC-2795-73 23.39 27.95 889±30
6 HC-3300-73 27.96 33.00 965±30
