| Place of Origin: | CHINA |
|---|---|
| Brand Name: | HC , OEM |
| Certification: | CE , SGS , ISO2001 |
| Model Number: | PA-412 |
| Minimum Order Quantity: | 100PCS |
| Price: | Negotiable |
| Packaging Details: | Cartons , Wooden Case , Pallets |
| Delivery Time: | 7 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5000 Sets Per day |

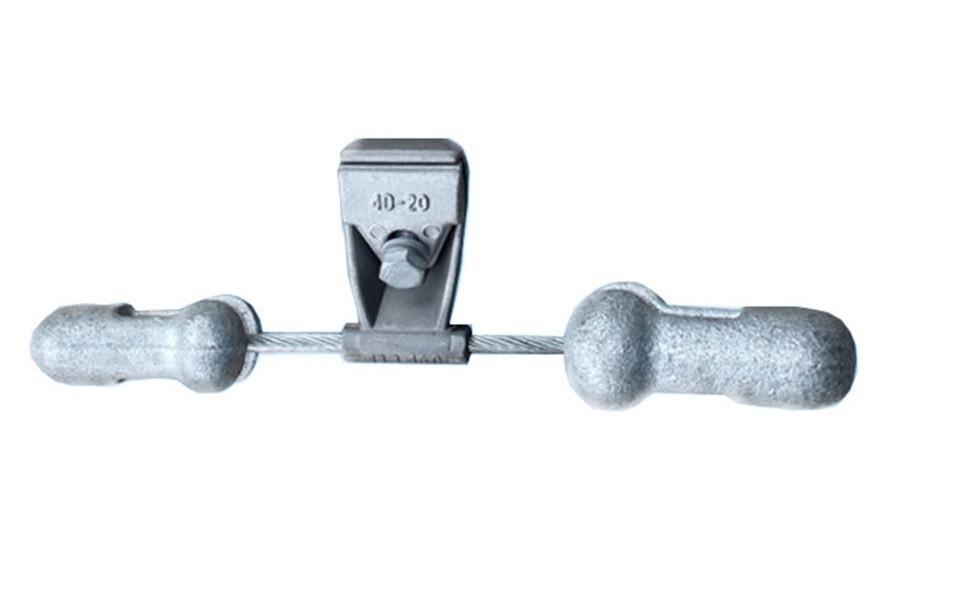

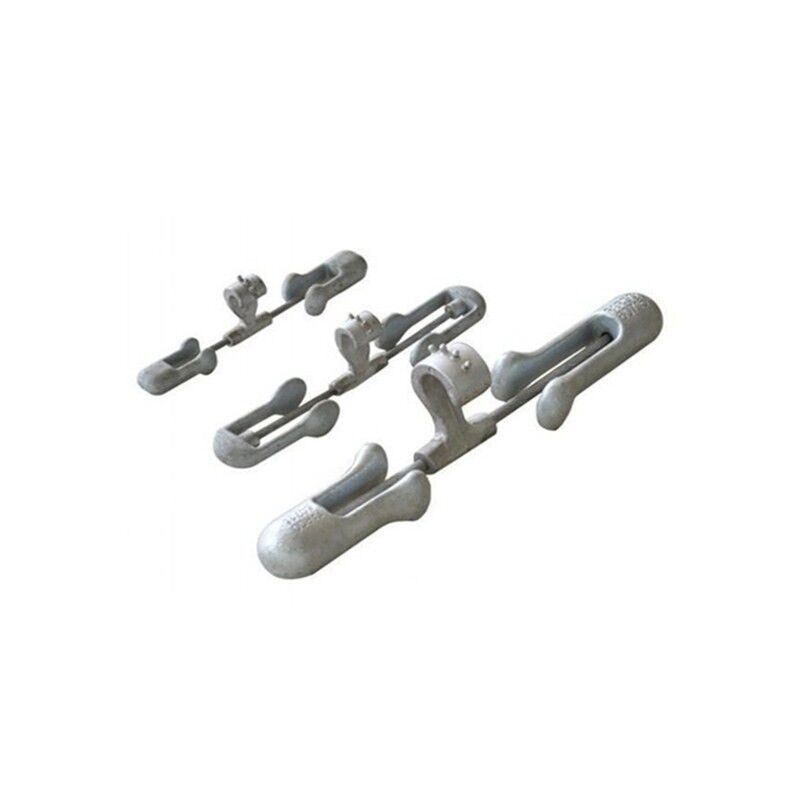

| Name: | Stockbridge Vibration Dampers | Installation: | Bolt , Pre-Twisted Wire |
|---|---|---|---|
| Bolt: | Carbon Steel | Amor Rod: | Rigid Steel Wire |
| Hammer Head: | Zinc Coating | Hammerheard Mterial: | Zinc Casting |
| High Light: | stockbridge vibration dampers,SGS stockbridge vibration dampers,stockbridge damper in transmission line |
||
when cable suffers form aeolian vibration, the hammerhead of the vibration damper hanging on the cable may vibrate freely along with the movement of cable to make the steel stranded wires on anti- vibration damper rub each other,convert the vibration energy passed on to the anti- vibration damper to friction heat among steel standed wires and consume such heat energy,thereby effectively supperessing the aeolian vibration of cable and prolongthe life of cable.
Specifications Vibration stockbridge damper for cable
| Type | OPGW diameter(mm) | Remark |
| 4D-20 | 9.0-14.0 | complete with protective rod |
| 4D-30 | 14.1-17.0 | complete with protective rod |
| ADSS Span(mm) | Number | Remark |
| 0-100 | 0 | Symmetric distridution span both sides |
| 101-250 | 2 | Symmetric distridution span both sides |
| 251-500 | 4 | Symmetric distridution span both sides |
| 501-750 | 6 | Symmetric distridution span both sides |
| 751-900 | 8 | Symmetric distridution span both sides |
