| Place of Origin: | CHINA |
|---|---|
| Brand Name: | HC , OEM |
| Certification: | CE , SGS , ISO2001 |
| Model Number: | SMT-020 |
| Minimum Order Quantity: | 100 |
| Price: | Negotiable |
| Packaging Details: | Cartons , Wooden Case , Pallets |
| Delivery Time: | 7 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5000 Sets Per day |
| Material: | Galvanized Steel | Color: | Silver White |
|---|---|---|---|
| Usage: | Cable , Conductor, | Install Location: | Pole , Insulators |
| Line Angels: | Up To 15 | Standard: | ASTM, IEC, BS, AS, ISO |
| High Light: | ISO Spiral Vibration Dampers,ASTM Spiral Vibration Dampers,IEC semicon top ties |
||

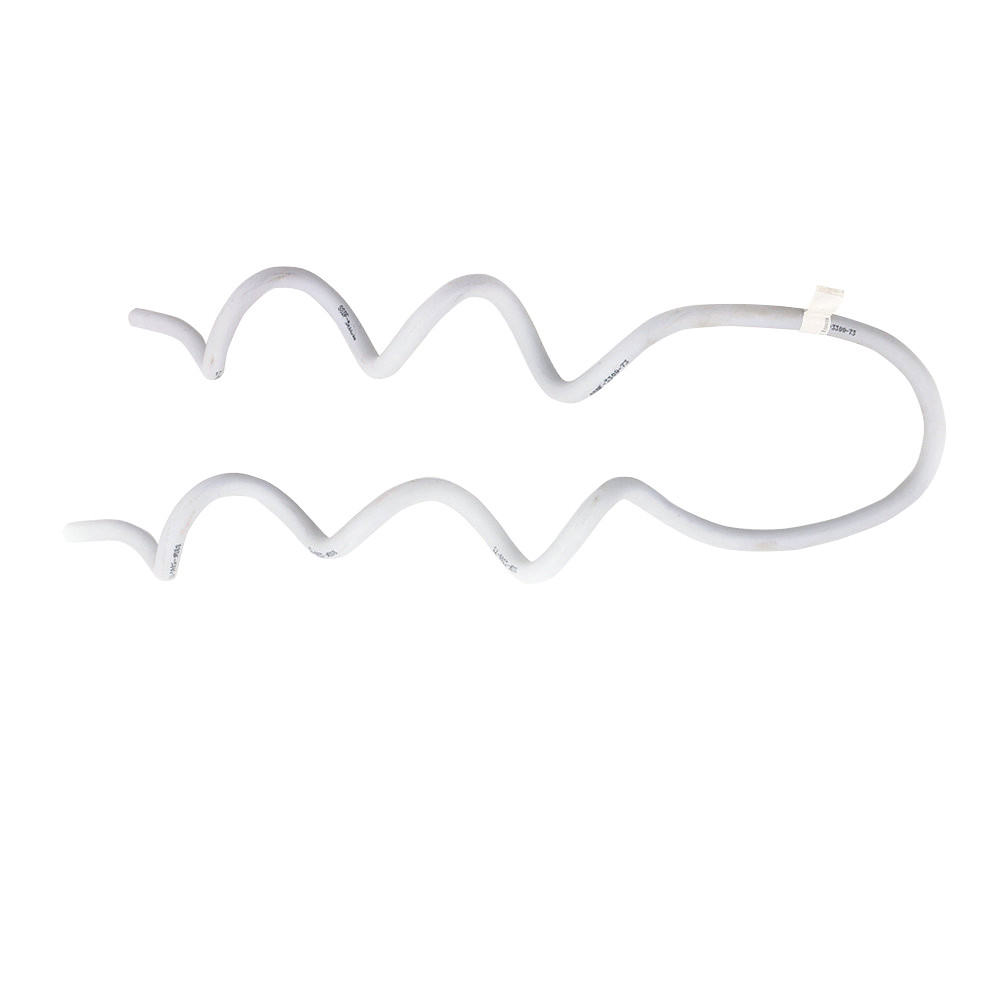

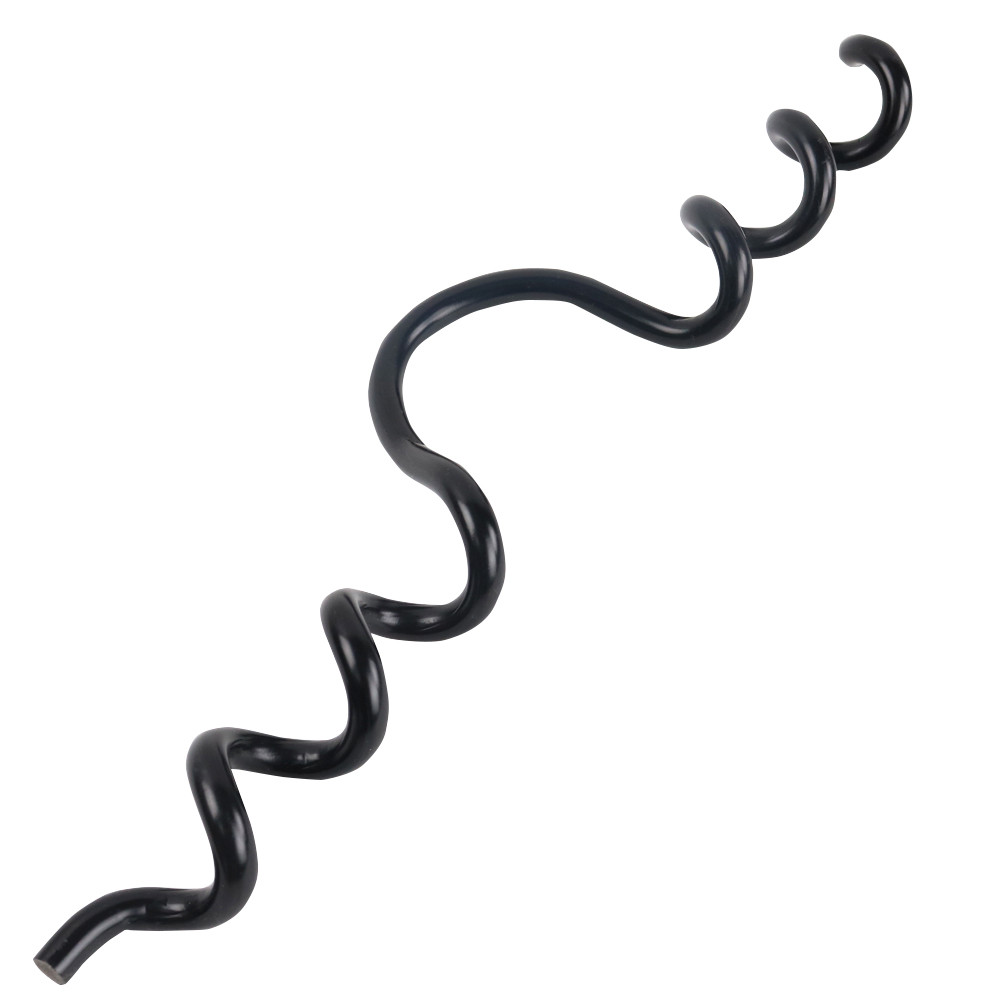

PVC Semicon Top Tie For Conductor
Most are used for insulators, conductors .It will develop unbalanced and lift-off loads equivalent to, or in excess of, a hand tie over covered conductor.
| Application | Advantage | Weight | Material | Standard |
| voltage to 15kV Mechanical: | UV resistance, tensile strength, impact strength, flexural strength | 0.6kgs | pvc | used with either ANSI compliant polymer or porcelain insulators. |
Application with voltage to 15kV , is intended for use with covered conductors and vertically-mounted tie top insulators on crossarms or pole-top-mounted insulators. Line angles of up to 15°can be accommodated when used with any plastic-covered conductor.Insulators: Φ57mm (C Neck), Φ72mm (F neck) and Φ101.6mm (K neck); PVC plastic line ties are used with either ANSI compliant polymer or porcelain insulators.
Our HC brand products gurantee over 3 years , we do as customized length and OEM service.
Up to standard of ASTM, IEC, BS, AS, ISO
