| Place of Origin: | CHINA |
|---|---|
| Brand Name: | HC , OEM |
| Certification: | CE , SGS , ISO2018 |
| Model Number: | AJS 02 012-H , AJS 04 096-H* |
| Minimum Order Quantity: | 100 |
| Price: | Negotiable |
| Packaging Details: | Cartons , Wooden Case , Pallets |
| Delivery Time: | 7 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5000 Sets Per day |
| Material: | Aluminum Alloy , Plastic | The Maximal Capacity: | 96 Cores |
|---|---|---|---|
| Usage: | Fix On Pole Or Tub | Install Location: | Pole , Tower |
| Core No.: | 12 , 24 , 36 , | Capacity: | 2 Input , 2 Output |
| High Light: | OPGW Joint Box 12 Core,Aluminum Alloy Plastic OPGW Joint Box,36 Core Alumium Alloy Joint Box |
||

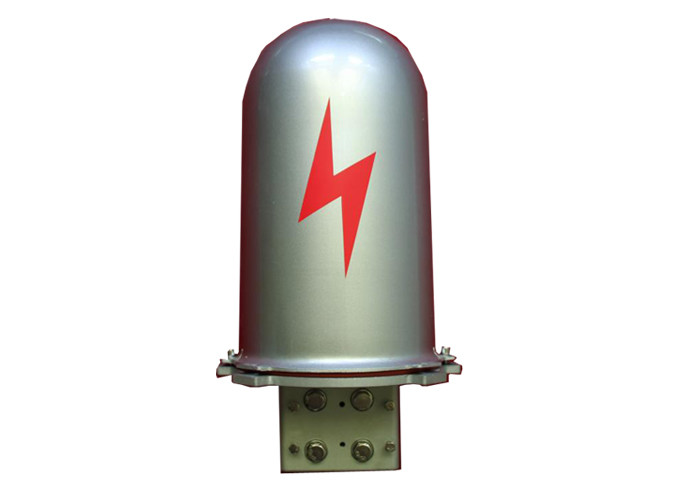

Cap Type Aluminum Alloy , Plastic Joint Box
Alumium Alloy Metal joint box is designed for splicing ADSS,OPGW cables and the normal cables, including two to four sleeves for input and output.Loose storage space makes storage more conveniently, quickly and cable bending radius big enough, avoiding fiber optic extra loss and ensuring transmission performance.The double sealed designs make Cable Joint Box more reliable. Easy to install and fix on pole(tower) or tub
12.1 Specification of Cap-type Plastic Joint Box for Pole
| Name | Model | Core No. | Weight | Remark |
|
Input-1,output-1 for ADSS Plastic Joint Box for Pole |
AJS 02 012-H* | 12 | 1.8 | |
| AJS 02 024-H* | 24 | 1.8 | ||
| AJS 02 036-H* | 36 | 1.8 | ||
| AJS 02 048-H* | 48 | 1.8 | ||
| AJS 02 072-H* | 72 | 1.8 | ||
| AJS 02 096-H* | 96 | 1.8 | ||
|
Input-2,output-2 for ADSS Plastic Joint Box for Pole |
AJS 04 012-H* | 12 | 1.8 | Also Suitable for input-2 ,output-1 |
| AJS 04 024-H* | 24 | 1.8 | ||
| AJS 04 036-H* | 36 | 1.8 | ||
| AJS 04 048-H* | 48 | 1.8 | ||
| AJS 04 072-H* | 72 | 1.8 | ||
| AJS 04 096-H* | 96 | 1.8 |
Note: H* means stainless steel hoop.reference to 10.2
12.2 Specification of Cap-type Plastic Joint Box for Tower
| Name | Model | Core No. | Weight(kg) | Remark |
|
Input-1,output-1 for ADSS Plastic Joint Box for Tower |
AJS 02 012-T | 12 | 1.8 | |
| AJS 02 024-T | 24 | 1.8 | ||
| AJS 02 036-T | 36 | 1.8 | ||
| AJS 02 048-T | 48 | 1.8 | ||
| AJS 02 072-T | 72 | 1.8 | ||
| AJS 02 096-T | 96 | 1.8 | ||
|
Input-2,output-2 for ADSS Plastic Joint Box for Tower |
AJS 04 012-T | 12 | 1.8 | Also Suitable for input-2 ,output-1 |
| AJS 04 024-T | 24 | 1.8 | ||
| AJS 04 036-T | 36 | 1.8 | ||
| AJS 04 048-T | 48 | 1.8 | ||
| AJS 04 072-T | 72 | 1.8 | ||
| AJS 04 096-T | 96 | 1.8 |

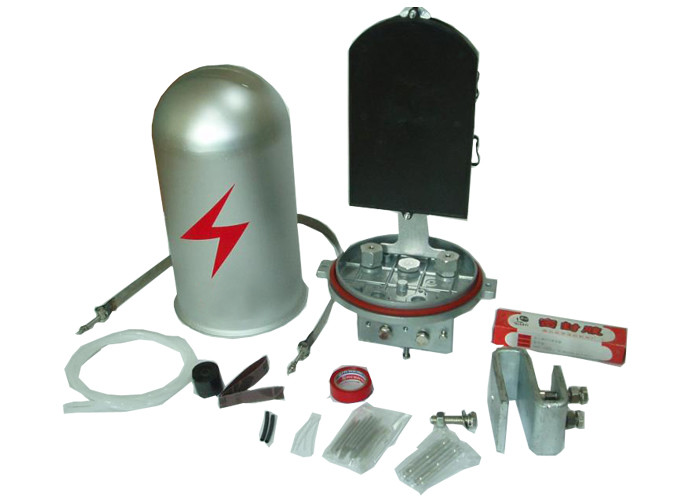

Cap-type Metal Joint Box for Pole Cap-type Metal Joint Box for Tower
12.3 Specification of Cap-type Metal Joint Box
| Name | Model | Weight(kg) | Material | Install Location |
| Cap-type Metal Joint Box for Pole | PJJ N1N2-Dndn-G | 6.7 | aluminum alloy | for pole |
| Cap-type Metal Joint Box for Tower | PJJ N1N2-Dndn-T | 6.7 | aluminum alloy | for tower |
Instruction:
N1—port no. Max.:5 pcs N2—core no. of cable. Max:144 core DN—insert dia. Of cable dn—out dia. Of cable G-for pole T—for tower
Packing: Wooden case, Carton , Etc
