IP54 Indoor FTTH Wall Mount Fiber Distribution Box

Basic Information
Place of Origin: CHINA
Brand Name: HC , OEM
Certification: CE , SGS , ISO2001
Model Number: HCDB-08
Minimum Order Quantity: 100PCS
Price: Negotiable
Packaging Details: Cartons , Wooden Case , Pallets
Delivery Time: 7 days
Payment Terms: L/C, T/T
Supply Ability: 5000 Sets Per day
Detail Information
WaterProof: IP54 Material: High Quality ABS, Durable
Box Size: 150*126*50 Mm Install Fitting: Screw Locking
Installation: Wall Mounted Ip Protection Level: IP 54
Adaotor Application: SC/APC, SC/UPC
High Light:

FTTH wall mount fiber distribution box


IP54 wall mount fiber distribution box


FTTH fiber optic box indoor

Product Description

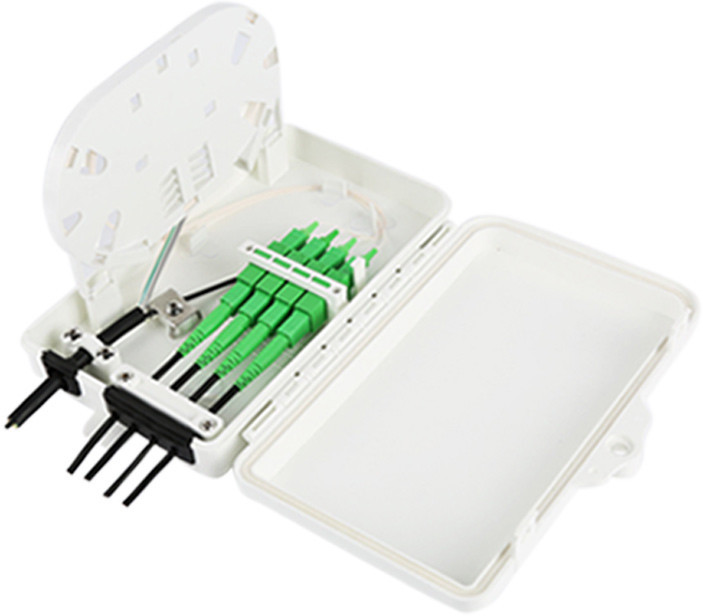

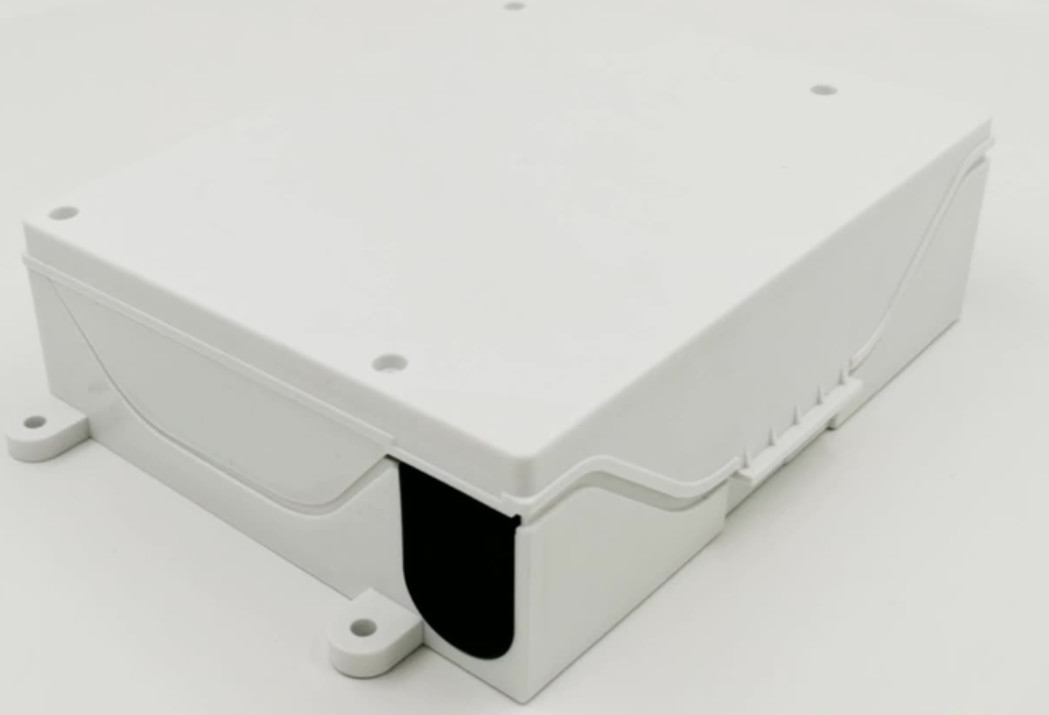

Indoor Ftth Fiber Optic Terminal Box Wall Mount Distribution Box


Ftth indoor fiber optic terminal box other calls wall mount fiber optic distribution box is developed to distribute and terminate fiber optic cable to ftth fiber optic patch cords, pigtail cords during ftth fiber optic network constructions.

Key Features:

1. 2 cable inputs and 8 outputs ports

2. Cable inputs and outputs with gel sealed, IP 54

3. Compact design,appropriate for indoor application

4. SC/UPC or SC/APC adapters, also fit for PLC cassette splitters

5. Provide easy and quick access for ftth connections

6. Made of high quality ABS, durable

7. Can be fixed on wall by four screws

8. Screws locking


Technical specification:


Items Parameters
Product name ftth fiber opticcal terminal box fodb-8r
Product code hcdb-08
Box dimensions 150*126*50 mm
Input cable Max 2 cables of max diameter 14 mm
Output cable 8 cables of max diameter 2-3 mm
Product color White
Material ABS
Adapter application SC/APC, SC/UPC
Splitter Cassette 1*8 fiber cassette mini splitter SC/APC, SC/UPC
IP protection level 54
Package 42*28.5*31 cm, 20 PCS

We spend a lot of energy to develop most convenient and cost-effective products to satisfy different requirements from markets. The 8 fiber optic distribution box is mainly designed to distribute feeding fiber optic cable and connect last mile cables as fiber optic patch cords.


Fiber optical terminal box is made of high quality ABS and PVC, processed by injection technology. It’s equipped with gel sealed and has high mechanical strength which allow it to be applied both indoor and outdoor ftth deployments.It is appropriate for common adapters SC/UPC, SC/APC and block less or abs cassette splitters 1*8 or 1*4 PLC for different application demands. Jera line also supply various accessories for aerial ftth constructions, welcome to send inquiry about 8 fiber optic distribution box
