8 Core Waterproof FTTH Fiber Optic Distribution Box

Basic Information
Place of Origin: CHINA
Brand Name: HC , OEM
Certification: CE , SGS , ISO2001
Model Number: HCFX-04A
Minimum Order Quantity: 100PCS
Price: Negotiable
Packaging Details: Cartons , Wooden Case , Pallets
Delivery Time: 7 days
Payment Terms: L/C, T/T
Supply Ability: 5000 Sets Per day
Detail Information
Type: Outdoor Usage: FTTX Systems
Material: PC+ABS / New ABS Mounting Way: Wall Mounting, Holding Pole
Capacity: 8 Cores Optical Cable Ports: 2-φ13mm Or 3-φ12mm
High Light:

ODP ftth fiber optic distribution box


8 Core ftth fiber optic distribution box


ODP ftth splitter distribution box

Product Description


FTTH Outdoor Indoor TUOLIMA 8 Core Waterproof Fiber Optic Distribution Point ODP Fibre Terminal Box

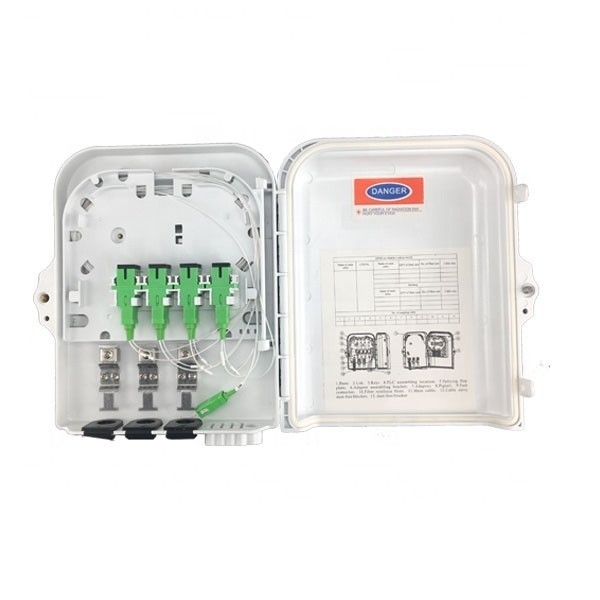

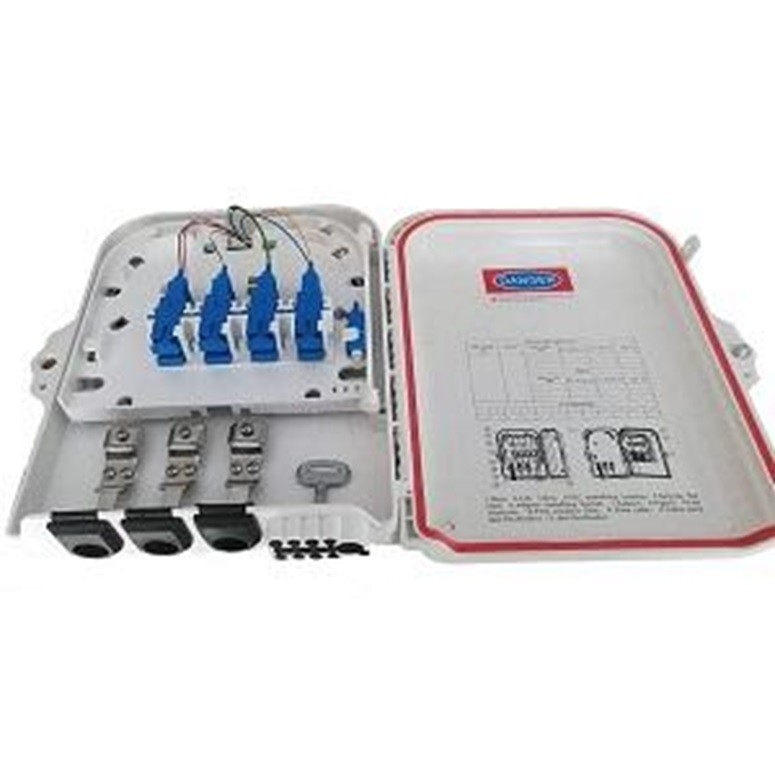

Fiber Optic Distribution Box

HCFX-04A fiber optic distribution box can be used as a termination point for the feeder cable to connect with drop cable in FTTX communication network system. The fiber splicing, splitting, distribution can be done in this box. the hard shell of this product can effectively protect the optical fiber. In addition, its waterproof, dustproof, fireproof performance can have very good protective effect.



● Outdoor type, compacted wall mount type;
● Nonmetallic material, industry standard user interface, be made of ABS plastic;
● Simple and clearly arranged incoming and outgoing cable management;
● Higher fiber count capacity box is available upon request;
● Easy maintenance, easy access with front door;
● Support both mechanical and fusion splicing, wall mounting and pole mounting application;
● Low cost solution, customized design with high protection for the terminal fibers.


APPLICATION fiber optic joint closure fiber optic joint closure fiber optic joint closure

● Widely used in FTTX systems;
● PON networks;
● Fiber optic termination, indoor and outdoor application;
● CATV networks, data communications networks, telecommunication networks;
● FTTD (Fiber To The Desk) interfaces.sure fiber optic joint closure fiber optic joint closure

GFX-04A Fiber Optic Distribution Box or Terminal Box
Size(mm) 230*180*55mm
Material PC+ABS / New ABS
Capacity 8 cores
Color white/black/light gray
Optical Cable Ports 2-φ13mm or 3-φ12mm
Mounting Way Wall mounting, holding pole
