| Place of Origin: | CHINA |
|---|---|
| Brand Name: | HC , OEM |
| Certification: | CE , SGS , ISO2001 |
| Model Number: | HCXH Series |
| Minimum Order Quantity: | 100PCS |
| Price: | Negotiable |
| Packaging Details: | Cartons , Wooden Case , Pallets |
| Delivery Time: | 7 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5000 Sets Per day |
| Diamention: | 470mm*210mm | Cable Size: | 5mm-38mm |
|---|---|---|---|
| Max Capacity: | Splice Cores 144 Cores/Trays 6x24F | Material: | Strengthen Polymer Plastic |
| Weight: | 2.3kgs | Capacity: | 144 Cores |
| High Light: | 144F OPGW Joint Box,opgw splice enclosure,144F opgw splice enclosure |
||

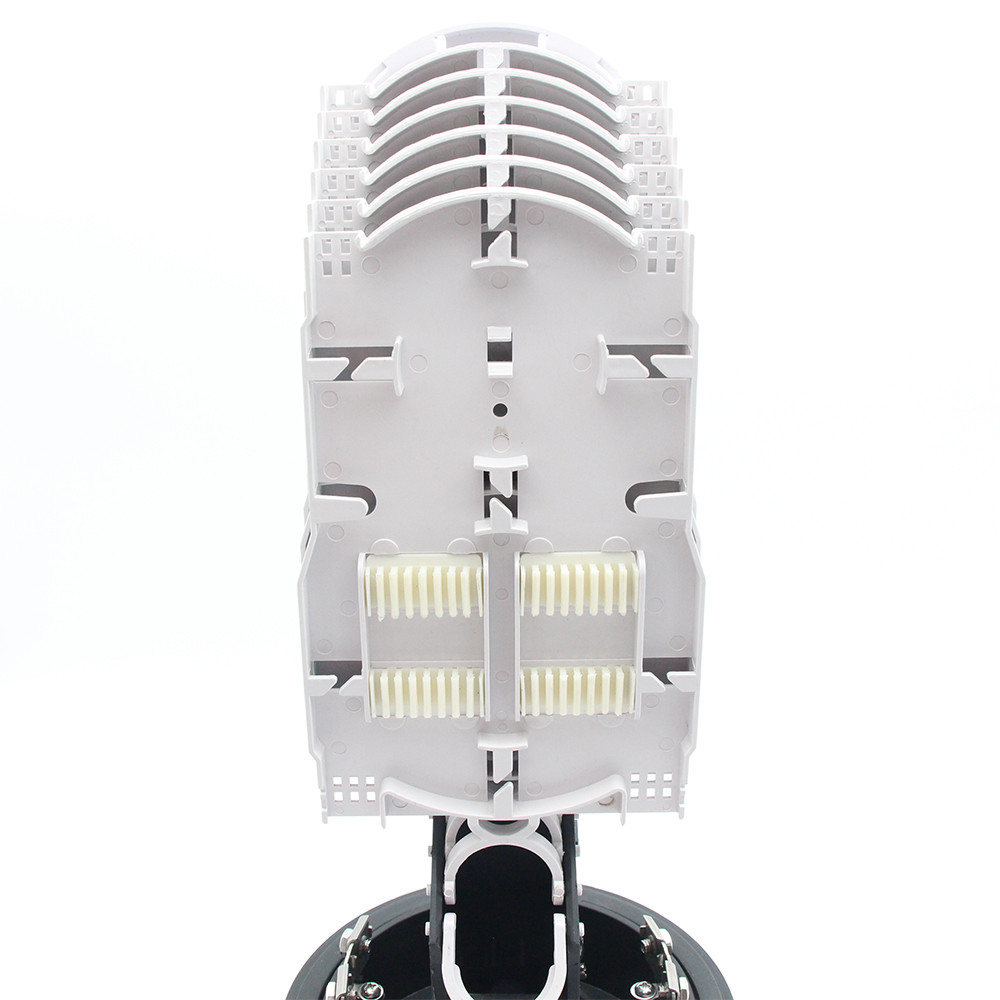

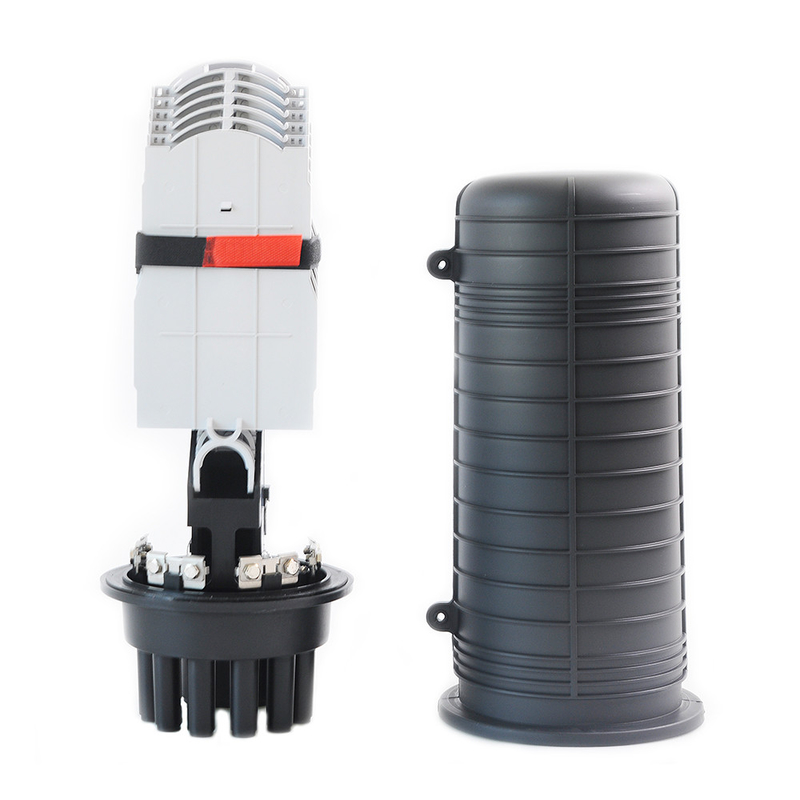

144F Vertical Type Optical Fiber Splice Closure
It is a device which have function of optical transmission link, providing several of fiber optical cable through, branching and related connecting protection. IP safety rate is IP65-68. Some of them can be installed 1x2:32 PLC splitter or 2X2:16 PLC splitter. The product is excellent in sealing performance, easy for installation, wide application. It's your best choice for fiber connection.
| Material | Polycarbonate (Strengthen PC) | |
| H*D(L*W*H) | 470mm*210mm | |
| Max Capacity | Splice Cores 144 Cores | Trays 6x24F |
| Cable Entrance | 1 x oval port 8 x round port | |
| Sealing Mechanism | Heat-Shrinkable Seal | |
| Weight | 2.3kg | |
| Color | Black | |
