| Place of Origin: | CHINA |
|---|---|
| Brand Name: | HC , OEM |
| Certification: | CE , SGS , ISO2018 |
| Model Number: | AJS 02 012-H , AJS 04 096-H* |
| Minimum Order Quantity: | 100 |
| Price: | Negotiable |
| Packaging Details: | Cartons , Wooden Case , Pallets |
| Delivery Time: | 7 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5000 Sets Per day |
| Material: | Aluminum Alloy , Plastic | The Maximal Capacity: | 96 Cores |
|---|---|---|---|
| Usage: | OPGW , ADSS Fiber Cable | Install Location: | Pole , Tower |
| Advantage: | Great Resisting | Fiber Type: | Not Less Than 144 |
| High Light: | OPGW ADSS Joint Box,Metal Plastic ADSS Joint Box,ADSS metal fiber splice closure |
||
Aluminum Alloy Metal and Plastic Joint Closure
Alumium Alloy Metal and Plastic Joint Closre with high mechanical strength, good airproof performance and excellent corrosion resistance. Having been sealed with sealing ring and silicone, it could be opened, expansed, fixed, and connected repeatedly.The maximal capacity is 144 core. when the microbend fiber loss is not larger than 0.01Db, and the bending radius for fiber is not less than 45mm, it need the special way for immobility, to protect the fiber.

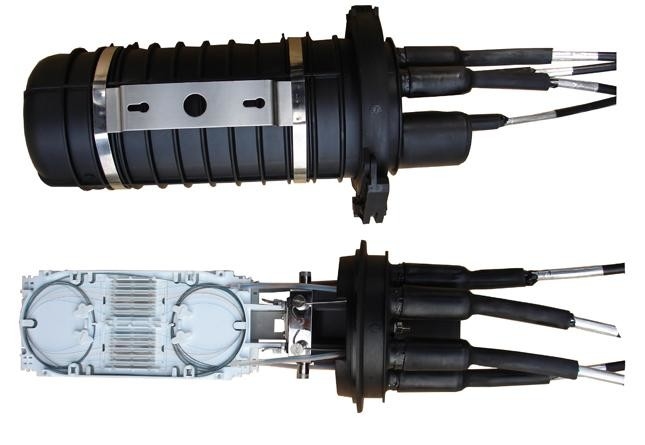

12.1 Specification of Cap-type Plastic Joint Box for Pole
| Name | Model | Core No. | Weight | Remark |
|
Input-1,output-1 for ADSS Plastic Joint Box for Pole |
AJS 02 012-H* | 12 | 1.8 | |
| AJS 02 024-H* | 24 | 1.8 | ||
| AJS 02 036-H* | 36 | 1.8 | ||
| AJS 02 048-H* | 48 | 1.8 | ||
| AJS 02 072-H* | 72 | 1.8 | ||
| AJS 02 096-H* | 96 | 1.8 | ||
|
Input-2,output-2 for ADSS Plastic Joint Box for Pole |
AJS 04 012-H* | 12 | 1.8 | Also Suitable for input-2 ,output-1 |
| AJS 04 024-H* | 24 | 1.8 | ||
| AJS 04 036-H* | 36 | 1.8 | ||
| AJS 04 048-H* | 48 | 1.8 | ||
| AJS 04 072-H* | 72 | 1.8 | ||
| AJS 04 096-H* | 96 | 1.8 |
Specification of Plastic Joint Box for Tower
| Name | Model | Core No. | Weight(kg) | Remark |
|
Input-1,output-1 for ADSS Plastic Joint Box for Tower |
AJS 02 012-T | 12 | 1.8 | |
| AJS 02 024-T | 24 | 1.8 | ||
| AJS 02 036-T | 36 | 1.8 | ||
| AJS 02 048-T | 48 | 1.8 | ||
| AJS 02 072-T | 72 | 1.8 | ||
| AJS 02 096-T | 96 | 1.8 | ||
|
Input-2,output-2 for ADSS Plastic Joint Box for Tower |
AJS 04 012-T | 12 | 1.8 | Also Suitable for input-2 ,output-1 |
| AJS 04 024-T | 24 | 1.8 | ||
| AJS 04 036-T | 36 | 1.8 | ||
| AJS 04 048-T | 48 | 1.8 | ||
| AJS 04 072-T | 72 | 1.8 | ||
| AJS 04 096-T | 96 | 1.8 |

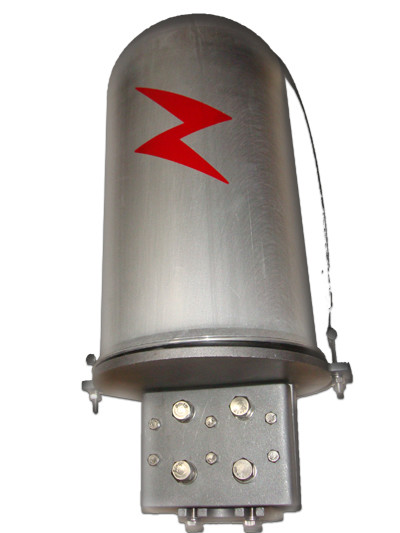

12.3 Specification of Metal Joint Box
| Name | Model | Weight(kg) | Material | Install Location |
| Cap-type Metal Joint Box for Pole | PJJ N1N2-Dndn-G | 6.7 | aluminum alloy | for pole |
| Cap-type Metal Joint Box for Tower | PJJ N1N2-Dndn-T | 6.7 | aluminum alloy | for tower |
Instruction:
N1—port no. Max.:5 pcs N2—core no. of cable. Max:144 core DN—insert dia. Of cable dn—out dia. Of cable G-for pole T—for tower
Packing: wooden case , Carton , Etc
