2 In 4 Out 144 Core ADSS Joint Box , Fiber Optic Cable Splice Enclosure

Basic Information
Place of Origin: CHINA
Brand Name: HC , OEM
Certification: CE , SGS , ISO2001
Model Number: HCPLJ
Minimum Order Quantity: 100PCS
Price: Negotiable
Packaging Details: Cartons , Wooden Case , Pallets
Delivery Time: 7 days
Payment Terms: L/C, T/T
Supply Ability: 5000 Sets Per day
Detail Information
Insulation Resistance: >2×104MΩ Max Capacity: 144 Cores (6 X 24 Splice Tray)
Temperature: -45℃~70℃ Dimension: 530(H)×150(Φ)mm
Cable Dia: 7.0-22.0mm Inlet / Outlet: 2 Inlet / 4 Outlet
High Light:

144 Core ADSS Joint Box


2 In 4 Out ADSS Joint Box


144 Core fiber optic cable splice enclosure

Product Description

2 Inlet 4 Out 144 Cores Plastic Optic Splice Closure


Sealing Dome Fiber Optic Splice Closure provides space and protection for the fiber optic cable splicing and joint. Fiber Splice Closure belongs to the accommodation of the optical fiber fusion splice section system. It is widely applied to the connection of the fiber play the roles in sealing, protection, installation of fiber connector head, and storage.

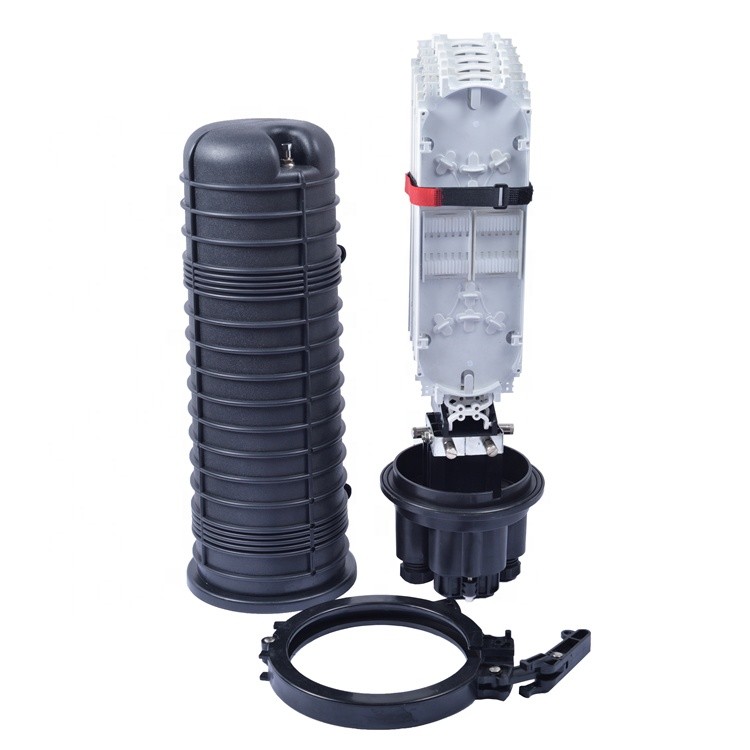

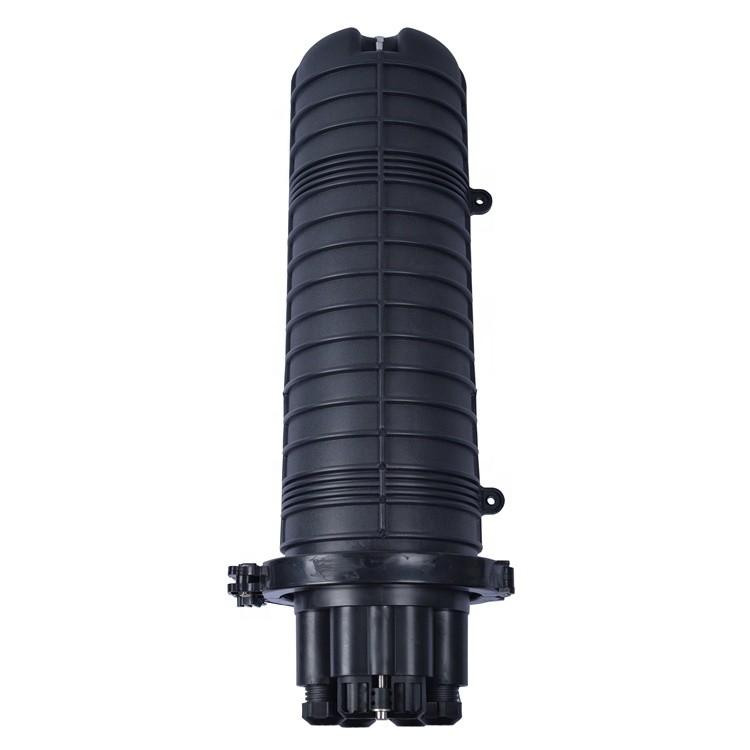

2 In 4 Out 144 Core ADSS Joint Box , Fiber Optic Cable Splice Enclosure 0



Name Mechanical Sealing Dome Fiber Optic Splice Closure
Model HCPLJ-B6-2
Size 55x15.5x15.5cm
Cable Port 2 In 4 Out
Cable Diameter 7.0-22.0mm
Sealing Structure Mechanical Sealing
Material Strengthen Polymer Plastic
Max Capacity 144 Cores (6 X 24 splice tray)
Operating Temperature -45~70
Insulation Resistance >2×104MΩ
Protection Grade IP67





1. Aging resistance: thermal, thermal radiation, air, ozone has good stability.

2.Corrosion resistance: Acid, Salt, Oxidants, Aliphatic hydrocarbons, which are strong anti-resistance.
3.Sealing Technology: Using reusable open-type seal assembly, in order to ensure good airtight waterproof performance.
4.Mechanical properties: the ability to endure harsh conditions such as vibration, impact, tensile cable distortion, and strong temperature changes.
5.Locking devices: no special tools, easy to install, and repeat the open.
6. Follow function: the use of laminated clamshell structure, without removing the other splice tray operation.
