IP65 96FO FTTH Fiber Optic Distribution Box Impact Resistant

Basic Information
Place of Origin: CHINA
Brand Name: HC , OEM
Certification: CE , SGS , ISO2001
Model Number: HCS-303 Fiber Optical Splice Box
Minimum Order Quantity: 100PCS
Price: Negotiable
Packaging Details: Cartons , Wooden Case , Pallets
Delivery Time: 7 days
Payment Terms: L/C, T/T
Supply Ability: 5000 Sets Per day
Detail Information
Size: 380*245*130mm Feature: UV Resistance
Capacity: 96FO Material: PP+Glass Fiber
Splice Stray: 2 Pcs ABS Material Weight: 4.5-5kgs
High Light:

IP65 ftth fiber optic distribution box


96FO ftth fiber optic distribution box


ftth fiber optic terminal box IP65

Product Description

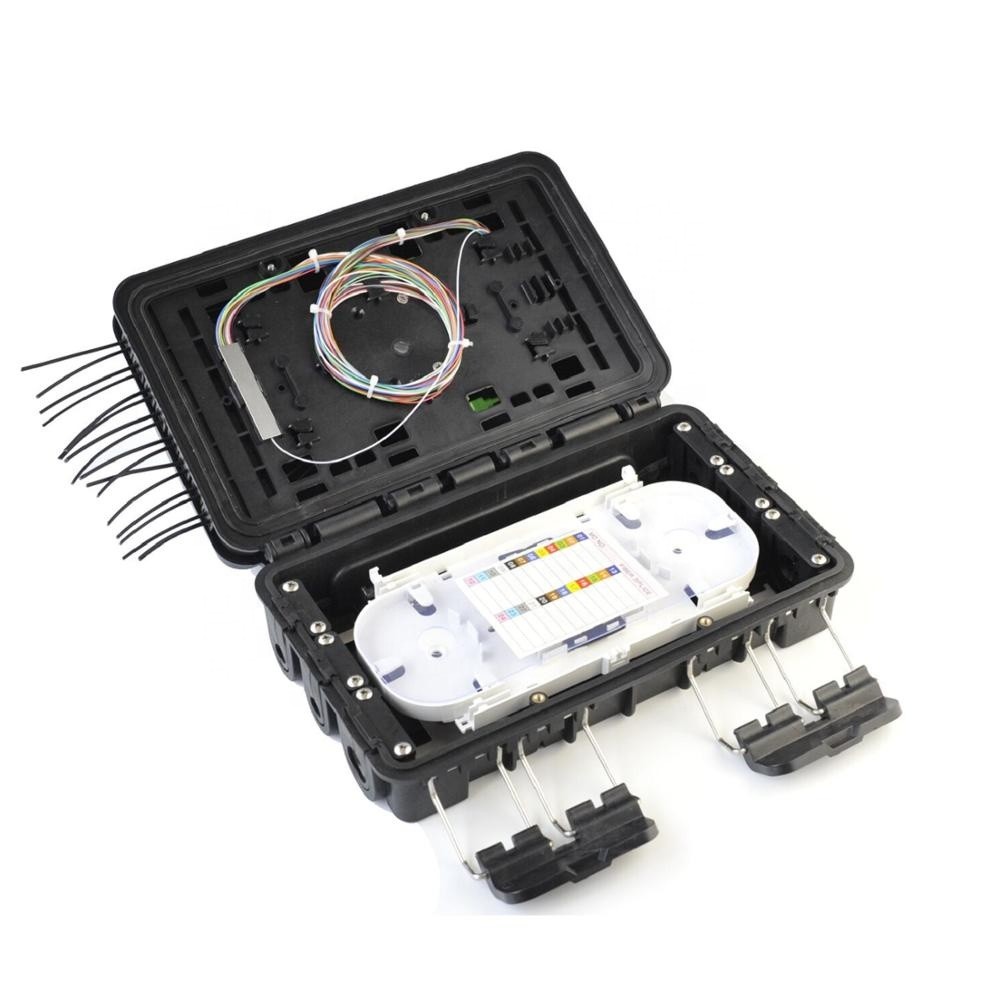

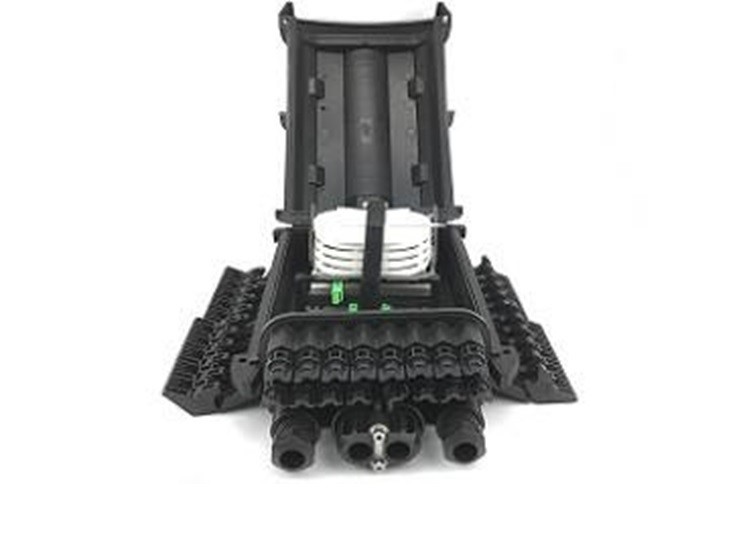

FTTH Fibre Terminal Distribution Box


The product is made of high-quality impact resistant plastic and has a standard user interface that can be turned on repeatedly.

Outdoor application and good UV resistant, impact resistant and waterproof

It can be loaded with 2pcs 1x8 LGX Splitter or 2pcs steel tube micro PLC Splitter.

Unique flip splice tray, flip angle more than 180 degrees, the splicing area and the distribution cable area is more distinct, reducing the cables crossing.

Numerous application such mid-span, branch and direct splice.

3 layer structure and easy to maintain

It is suitable for the application on NAP in the distributed split PON architecture.

Protection Level: IP65

Excellent sealing performance. It is compatible with different optical cables.


Fiber Optical Splice Box

Horizontal Closure provide space and protection for fiber optic cable splicing and joint. They can be mounted aerial, buried, or for underground applications. They are designed to be waterproof and dust proof. They can be used in temperature ranging from -40°C to 85°C, can accommodate 70 to 106 kpa pressure and the case are usually made of high tensile construction plastic.


HCS-303 Fiber Optical Splice Box
Material PP+Glass Fiber
Size 380*245*130mm
Cable Ports 1pc un-cut cable port, 2pcs output cable ports, 16pcs drop cable ports
Max. Capacity 96FO
Splice Tray 2 pcs ABS Material
Weight 4.5~5KG
Accessories Protecting Sleeves, labelling paper, insulation tape, abrasive paper, wall-mount kits, sealing tape, nylon tie, earthing wire, plastic wrench
Sealing Way Silicon Rubbersealing Ring
Installation Way Aerial, wall or pole-Mounting
