| Place of Origin: | CHINA |
|---|---|
| Brand Name: | HC , OEM |
| Certification: | CE , SGS , ISO2001 |
| Model Number: | PA-0956 |
| Minimum Order Quantity: | 100PCSP |
| Price: | Negotiable |
| Packaging Details: | Cartons , Wooden Case , Pallets |
| Delivery Time: | 7 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5000 Sets Per day |
| Dimension: | 300mm*190mm | Cable Entry Ports: | 5 |
|---|---|---|---|
| Net Weight: | 1.6kgs | Protection Level: | IP68 |
| Connection: | For Calbes Lower Than 360 Fiber | Advantage: | Openning After Seal |
| High Light: | IP68 ADSS Joint Box,Plastic ADSS Joint Box,fiber dome enclosure 300mmx190mm |
||

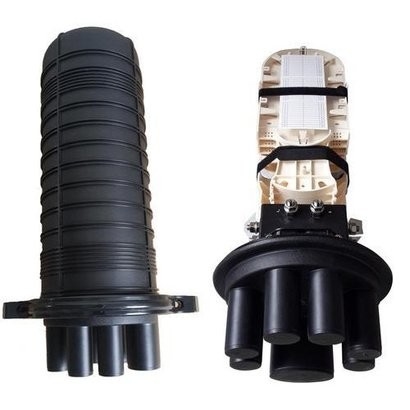

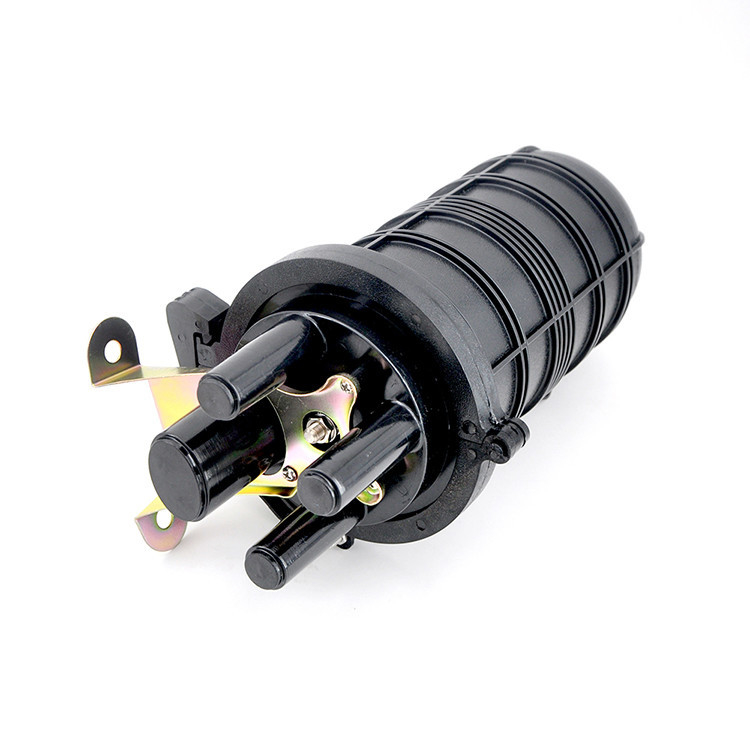

Dome fiber optic splice closures are used throughout the network, including the fiber trunk, feeder, distribution, and last mile segments. Our closure are normally used to connect optical cables in the long-distance transmission network, closure also routes and branches optical fibers.fiber to the home (FTTH) is a type of point to multiple points (P2MP) network with many branching points, so closures are widely used to implement cable distribution, optical fiber splitting, and flat drop cable output.
Features
1) Widely applied in aerial,direct and branch connection for cables lower than 360 fiber
2) suitable for extreme climate
3) as it is made from composite engineering plastic filled with sealing materia
4) The inner and fastening pieces are made of stainless steel.
5) This product can be opened repeatedly after being sealed
Specification
|
Model |
UT-GJS-DC01 |
|
Dimension |
300mm*190mm |
|
Capacity of FOSC |
Bunchy:48(cores) |
|
Cable entry ports |
5 pcs |
|
Diameter of Cable |
Φ8mm~Φ20 mm |
|
Assemmbling method |
Aerial,Pipeline,Underground,hand-holes |
|
Protection level |
IP68 |
|
Net Weight |
1.6 kg |
|
Outter carton size |
810*430*325mm |
|
number of Packing |
10 pcs/ctn |
|
weight |
18kg /ctn |
