| Place of Origin: | CHINA |
|---|---|
| Brand Name: | HC , OEM |
| Certification: | CE , SGS , ISO2001 |
| Model Number: | CCT Series |
| Minimum Order Quantity: | 100PCS |
| Price: | Negotiable |
| Packaging Details: | Cartons , Wooden Case , Pallets |
| Delivery Time: | 7 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5000 Sets Per day |
| Shape: | C | Usage: | Copper Conductor |
|---|---|---|---|
| Length: | 12mm-66mm | Height: | 6.2mm-65mm |
| B: | 1.6mm | C: | 4mm , 5mm Etc |
| High Light: | 12mm c type compression connector,6.2mm c type compression connector,12mm c type crimp connectors |
||

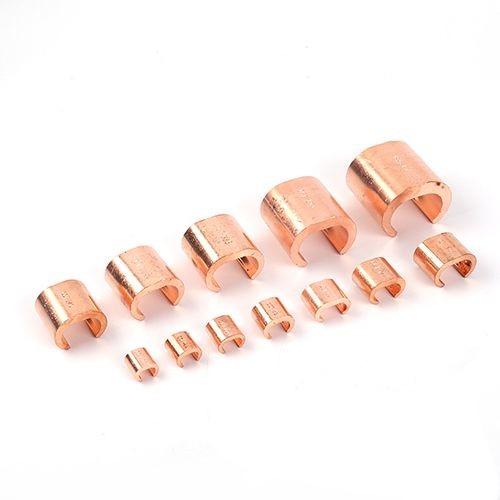

C crimp connectors also known as Copper C type compression connector, C type connector, are copper castings for the grounding system. is used for the branching and connection of conductor main lines in power transmission and distribution lines. It is made of T2 copper C-shaped material with 99.9% copper-containing beams of Caitong.
The C crimp connectors (C shaped energy saving power wire connection device) not only has all the advantages of the existing C-shaped wire clamp, but also pays attention to the material Special requirements and unique structural design.

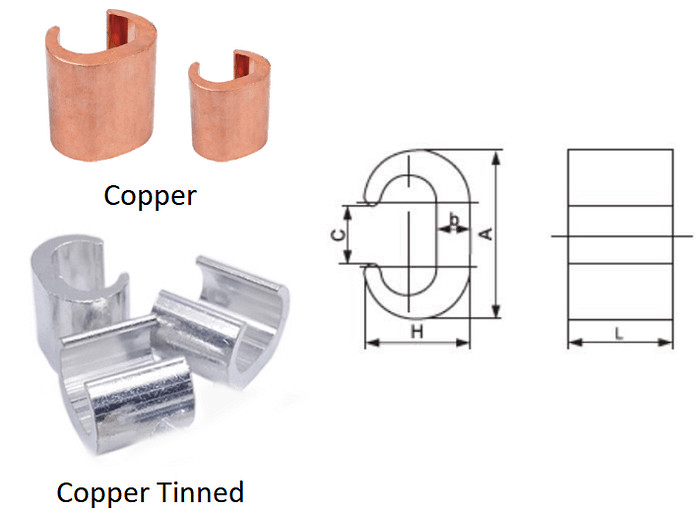

The Copper C type compression connector has two types,one is copper,the other one is copper tinned.The Copper C type connector is suitable for copper conductor.And the Copper tinned C type connector is suitable for copper or aluminum conductor.
