| Place of Origin: | CHINA |
|---|---|
| Brand Name: | HC , OEM |
| Certification: | CE , SGS , ISO2001 |
| Model Number: | PA-0446 |
| Minimum Order Quantity: | 100PCS |
| Price: | Negotiable |
| Packaging Details: | Cartons , Wooden Case , Pallets |
| Delivery Time: | 7 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5000 Sets Per day |
| Application: | Wire Connecting | Type: | Screw Terminal |
|---|---|---|---|
| Usage: | Electrical Power Fitting | Function: | Fixing Cables |
| Material: | T2 Copper Tube | Height: | 6-33mm |
| High Light: | OT Type Electric Power Fitting,T2 copper lug connectors,OEM copper ring connectors |
||

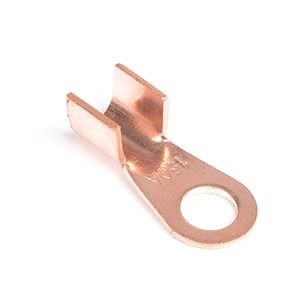

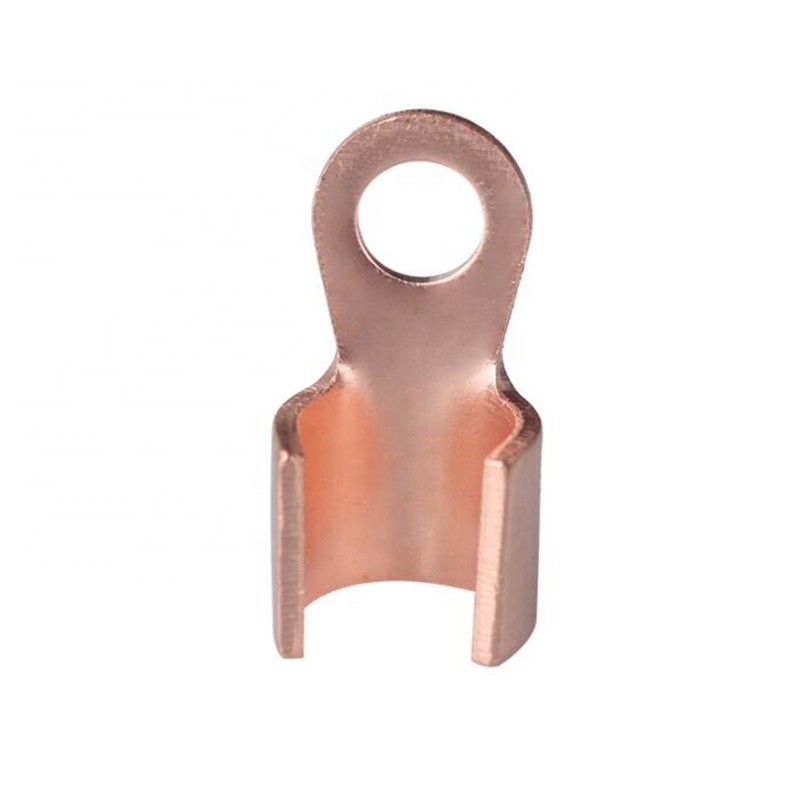

OT Type Copper Connectors Open Lug
Material
OT series hole-passing connection tube is made of T2 copper tube
OT type copper passing through terminals/connecting terminals are suitable for connection of copper conductors in distribution equipments. After testing , they are of reliable sfety and long working life.
| Model | Ø | H(mm) | L(mm) | R(mm) | R1(mm) | A(mm) |
| OT-10A | Ø5.2 | 6 | 14.5 | 4.5 | 2 | 0.8 |
| OT-20A | Ø6.2 | 7 | 17 | 5.5 | 2.5 | 1 |
| OT-30A | Ø6.2 | 8.2 | 19 | 5.8 | 3.2 | 1.2 |
| OT-40A | Ø6.2 | 9 | 19.5 | 6.2 | 3.5 | 1.2 |
| OT-50A | Ø6.2 | 9 | 21.5 | 6.5 | 3.5 | 1.2 |
| OT-60A | Ø8.2 | 10 | 23 | 7.8 | 4 | 1.4 |
| OT-80A | Ø8.2 | 11 | 25 | 8 | 4.5 | 1.5 |
| OT-100A | Ø8.2 | 12 | 29 | 8.5 | 5 | 1.5 |
| OT-150A | Ø10.2 | 12 | 31 | 9 | 5.5 | 1.6 |
| OT-200A | Ø10.2 | 14 | 33 | 10 | 6 | 1.7 |
| OT-250A | Ø10.2 | 15.5 | 36 | 10.5 | 6.5 | 2 |
| OT-300A | Ø12.2 | 16 | 40 | 11.5 | 7 | 2 |
| OT-400A | Ø12.2 | 18 | 43 | 13 | 8 | 2.2 |
| OT-500A | Ø14.2 | 20 | 46 | 14.5 | 8.5 | 2.4 |
| OT-600A | Ø16.2 | 22 | 50.5 | 16 | 10.5 | 2.8 |
| OT-800A | Ø18.2 | 26 | 61 | 17.5 | 12.5 | 3.2 |
| OT-1000A | Ø18.2 | 33 | 66 | 20.5 | 15.5 | 3.8 |
