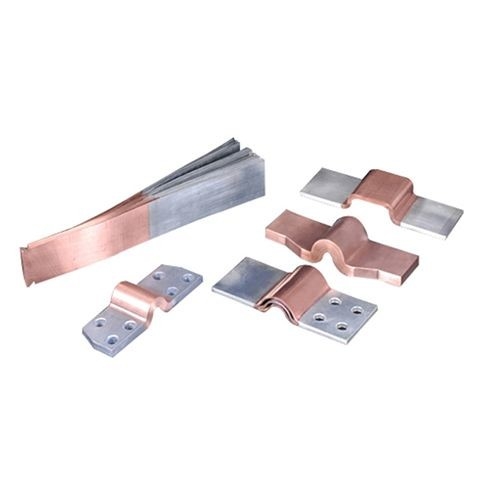

Bare Copper Laminated Flexible Connectors High Conductivity

Basic Information
Place of Origin: CHINA
Brand Name: HC , OEM
Certification: CE , SGS , ISO2001
Model Number: PA-05887
Minimum Order Quantity: 100PCS
Price: Negotiable
Packaging Details: Cartons , Wooden Case , Pallets
Delivery Time: 7 days
Payment Terms: L/C, T/T
Supply Ability: 5000 Sets Per day
Detail Information
Surface Treatment: Bare Copper Warrantee: 32 Years
Progress: Welding Usage: Electrical Switch, Electrical Furnace
Material: High Conductivity Laminated Copper Foil Welding Progress: Dissolve The Multi-Layer Copper Foil
High Light:

Bare copper laminated flexible connectors


T2 copper laminated flexible connectors


flexible laminated copper connectors

Product Description

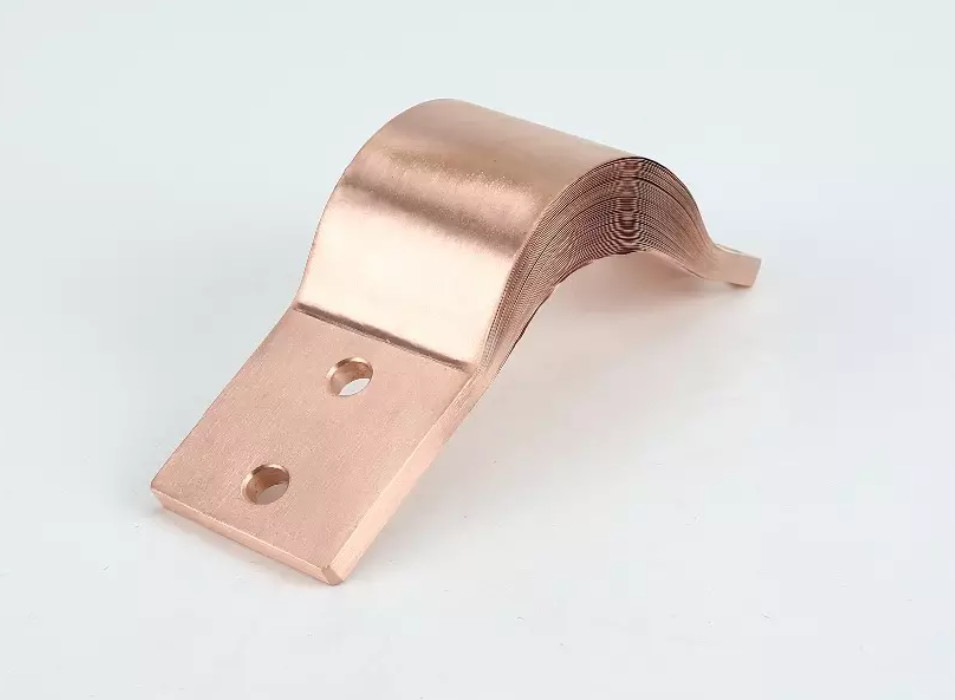

Flexible Copper Busbar Laminated Foils Connector

Flexible copper busbar laminated foils connector made in high conductivity laminated copper foil.Flexible copper connector are using a press welding procedure where individual copper strips are fused through applying direct current as well as pressure.


Material Standard GB : T2 Copper with Min. 99.9%
DIN: E-Cu58 (Number: 2.0065)
EN: Cu-ETP ( Number: CW004A)
UNS: C11000
JIS: C1100
BS: C101
Other Material also can be customized
Copper Foil of 0.03/0.1/0.2/0.3/0.5/1.0mm,depend on bus bar structure,
Single Layer Thickness we will advise suitable thickness
Copper foll width 10mm-300mm
Insulation surface PVC dipping ,PE heat shrink tubes and EPOXY POWDER COATING.
Surface Plating Nickel, tin or silver plated etc
  Plating Thickness:Normally 3um to 12um
  or upon customers' request
Resistance 0.00001Ω
Conductivity 57%
Flame Retardant/Fire Resistance UL94-V-0 or upon you request
Operating Temperature -45 to +150 ºC


The polymer diffusion welding process is used to dissolve the multi-layer copper foil on the contact surface together, change its molecular structure, and solidify it into a copper block before subsequent processing.

The braided copper tape is suitable for the flexible connected wires of electrical equipment, electrical switch, electrical furnace, battery, etc.

Customized available for special dimension,shapes and structure.We can according to your drawing customized.

Material:99.95% pure copper.

Bare Copper Laminated Flexible Connectors High Conductivity 0
