OTD-16 Electric Power Fitting Copper Aluminium Cable Lug

Basic Information
Place of Origin: CHINA
Brand Name: HC , OEM
Certification: CE , SGS , ISO2001
Model Number: OTD-16
Minimum Order Quantity: 100PCS
Price: Negotiable
Packaging Details: Cartons , Wooden Case , Pallets
Delivery Time: 7 days
Payment Terms: L/C, T/T
Supply Ability: 5000 Sets Per day
Detail Information
Technical Requirements: GB/T 14315. Connect Methord: Crimping Process For Reliable Connectio
Usage: To Connect Electric Device Diamention: 9mm-28mm
Application: Connecting 35 KV Advantage: To Connect End Of Device Easily
High Light:

OTD-16 Electric Power Fitting


Copper Aluminium Cable Lug


OTD-16 aluminium to copper lugs

Product Description

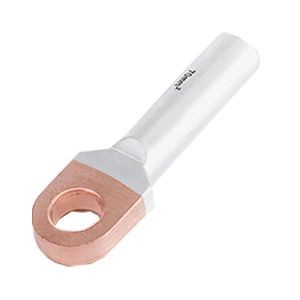

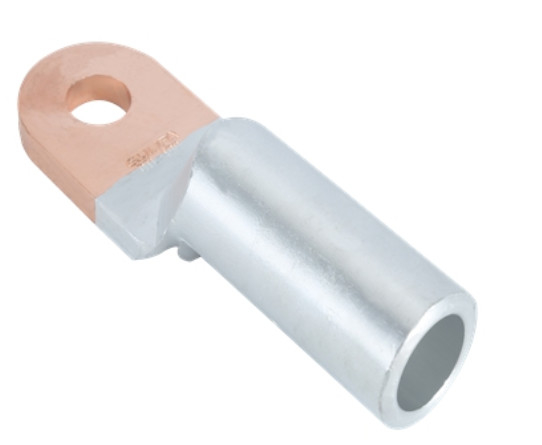

Copper-Aluminium Cable lug OTD-16


1. product features
Copper-aluminum friction welding process with high weld strength and resistance to electrochemical corrosion;
The electrical contact surface is flat, the conductive performance is superior, and the advantages are low resistance and small temperature rise;

2. structural characteristics
Executive standard
Meet the technical requirements of GB/T 14315.

Raw material
Made of pure copper and aluminum bars, the material is dense;

Connection method
The product is connected to the cable using a crimping process for reliable connection.

use range and application field
It is suitable for connecting 35kV (Um=40.5kV) and below power cable conductors to the end of the electric device. Other wires and cables for fixed laying can also be used.

D±0.5 d±0.3
OTD-16 9 5 300
OTD-25 10 7 300
OTD-35 12 9 240
OTD-50 14 10 200
OTD-70 16 12 200
OTD-95 18 13 200
OTD-120 21 15 160
OTD-150 23 16 160
OTD-185 25 18 120
OTD-240 28 20 120
OTD-300 31 22 120
OTD-400 35 25 120
