| Place of Origin: | CHINA |
|---|---|
| Brand Name: | HC , OEM |
| Certification: | CE , SGS , ISO2001 |
| Model Number: | DTL-1 |
| Minimum Order Quantity: | 100PCS |
| Price: | Negotiable |
| Packaging Details: | Cartons , Wooden Case , Pallets |
| Delivery Time: | 7 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5000 Sets Per day |
| Diameter: | 10mm-60mm | Function: | For Reliable Connection |
|---|---|---|---|
| Length: | 68mm-270mm | Usage: | Co`nnecting 35kV (Um=40.5kV) |
| B: | 16mm , 18mm | L1: | 28mm , 30mm |
| High Light: | 60mm Electric Power Fitting DTL-1,copper cable lugs 60mm DTL-1,copper cable lugs DTL-1 60mm |
||

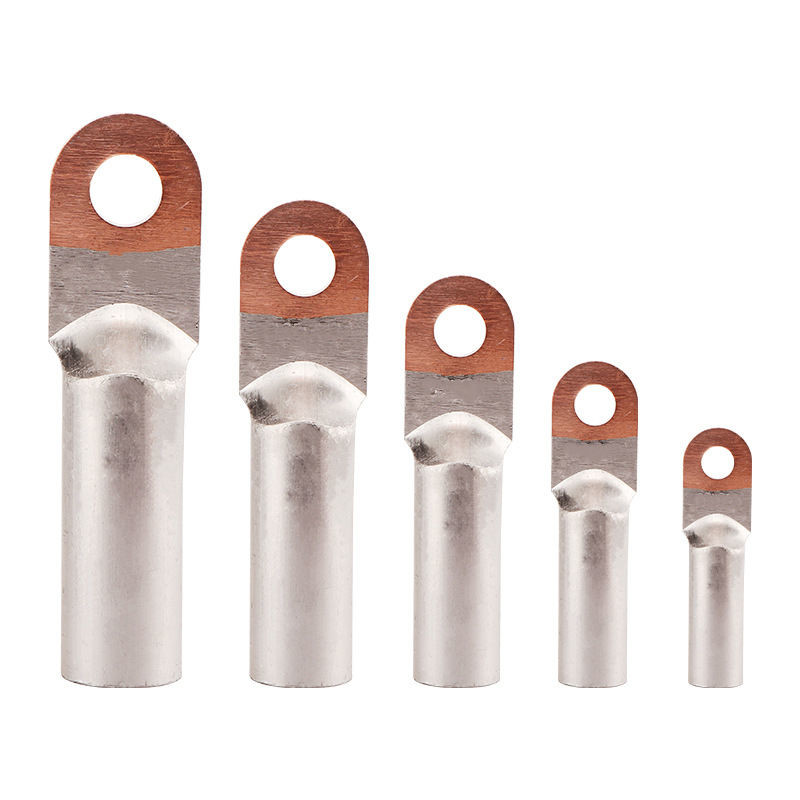

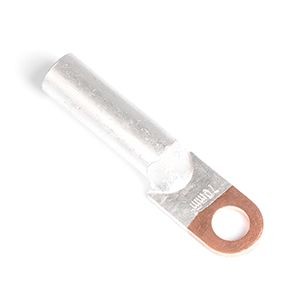

CABLE LUG (DTL-1)
Raw material
Made of pure copper and aluminum bars, the material is dense;
Connection method
The product is connected to the cable using a crimping process for reliable connection.
use range and field
It is suitable for connecting 35kV (Um=40.5kV) and below power cable conductors to the end of the electric device. Other wires and cables for fixed laying can also be used.
Description
DTL-1 model of copper-aluminum wiring terminal are suitable for transition of the circular aluminum wires, hemicycle-sector aluminum wire, power supply cable in the distribution equipment and copper terminals of the electrical equipment.
The material of aluminum and copper made L3 and T2.
| Model | Ø | D(mm) | d(mm) | L(mm) | L1(mm) | B(mm) |
| DTL-1-10 | Ø8.5 | 10 | 6 | 68 | 28 | 16 |
| DTL-1-16 | Ø8.5 | 11 | 6 | 70 | 30 | 16 |
| DTL-1-25 | Ø8.5 | 12 | 7 | 75 | 34 | 18 |
| DTL-1-35 | Ø10.5 | 14 | 8.5 | 85 | 38 | 20.5 |
| DTL-1-50 | Ø10.5 | 16 | 9.8 | 90 | 40 | 23 |
| DTL-1-70 | Ø12.5 | 18 | 11.5 | 102 | 48 | 26 |
| DTL-1-95 | Ø12.5 | 21 | 13.5 | 112 | 50 | 28 |
| DTL-1-120 | Ø14.5 | 23 | 15 | 120 | 53 | 30 |
| DTL-1-150 | Ø14.5 | 25 | 16.5 | 126 | 56 | 34 |
| DTL-1-185 | Ø16.5 | 27 | 18.5 | 133 | 58 | 37 |
| DTL-1-240 | Ø16.5 | 30 | 21 | 140 | 60 | 40 |
| DTL-1-300 | Ø21 | 34 | 23.5 | 160 | 65 | 50 |
| DTL-1-400 | Ø21 | 38 | 27 | 170 | 70 | 55 |
| DTL-1-500 | Ø21 | 45 | 29 | 225 | 75 | 60 |
| DTL-1-630 | / | 54 | 35 | 245 | 80 | 80 |
| DTL-1-800 | / | 60 | 38 | 270 | 90 | 100 |
