| Place of Origin: | CHINA |
|---|---|
| Brand Name: | HC , OEM |
| Certification: | CE , SGS , ISO2001 |
| Model Number: | PA-0516 |
| Minimum Order Quantity: | 100PCS |
| Price: | Negotiable |
| Packaging Details: | Cartons , Wooden Case , Pallets |
| Delivery Time: | 7 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5000 Sets Per day |
| Diameter: | 13mm | Material: | Copper Aluminium L3 |
|---|---|---|---|
| Usage: | Electrial Equiment | Advance: | Pure Copper Low Material |
| Function: | Transition Of The CIrcular Aluminum Wires, | Feature: | L And T |
| High Light: | DTL-2 bimetallic cable lug,DTL-2 Bi Metal Lugs Connectors,bi metal cable lugs DTL-2 |
||

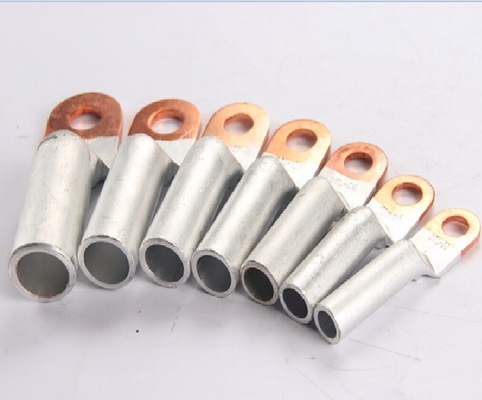

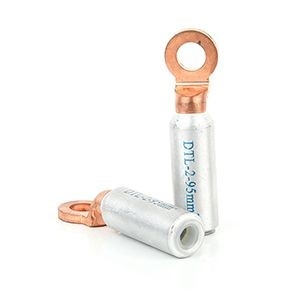

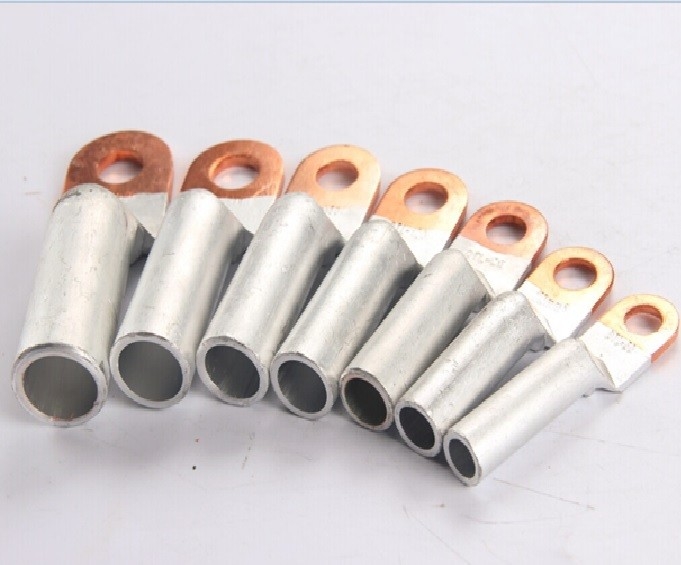

CABLE LUG (DTL-2)
Description
DTL series of copper-aluminum wiring terminal are suitable for transition of the circular aluminum wires, hemicycle-sector aluminum wire, power supply cable in the distribution equipment and copper terminals of the electrical equipment.
The material of aluminum and copper made L3 and T2.
| Model | Ø | D(mm) | d(mm) | L(mm) | L1(mm) |
| DTL-2-10 | Ø13 | 16 | 5.5 | 87 | 42 |
| DTL-2-16 | Ø13 | 16 | 6.5 | 87 | 42 |
| DTL-2-25 | Ø13 | 16 | 8 | 87 | 42 |
| DTL-2-35 | Ø13 | 16 | 9 | 87 | 42 |
| DTL-2-50 | Ø13 | 20 | 11 | 87 | 43 |
| DTL-2-70 | Ø13 | 20 | 12.5 | 87 | 43 |
| DTL-2-95 | Ø13 | 20 | 13.5 | 87 | 43 |
| DTL-2-120 | Ø13 | 25 | 15.5 | 111 | 60 |
| DTL-2-150 | Ø13 | 25 | 17.5 | 111 | 60 |
| DTL-2-185 | Ø13 | 32 | 19.5 | 116 | 60 |
| DTL-2-240 | Ø13 | 32 | 22.5 | 116 | 60 |
| DTL-2-300 | Ø13 | 34 | 23.5 | 120 | 62 |
Packing:Wooden Case, Carton , Etc
