20KN J Hook Suspension Clamp Hot Dip Galvanized Steel

Basic Information
Place of Origin: CHINA
Brand Name: HC , OEM
Certification: CE , SGS , ISO2001
Model Number: PT-15
Minimum Order Quantity: 100
Price: Negotiable
Packaging Details: Cartons , Wooden Case , Pallets
Delivery Time: 7 days
Payment Terms: L/C, T/T
Supply Ability: 5000 Sets Per day
Detail Information
Material: Hot Dip Galvanized Steel , Rubber Color: Silver , Gold
Span: 20M-200M Strength: 10KN-20KN
Function: Fixed Cable Clamp Application: Overhead Line Accessories
High Light:

20KN j hook suspension clamp


Galvanized Steel j hook suspension clamp


20KN j hook clamp

Product Description

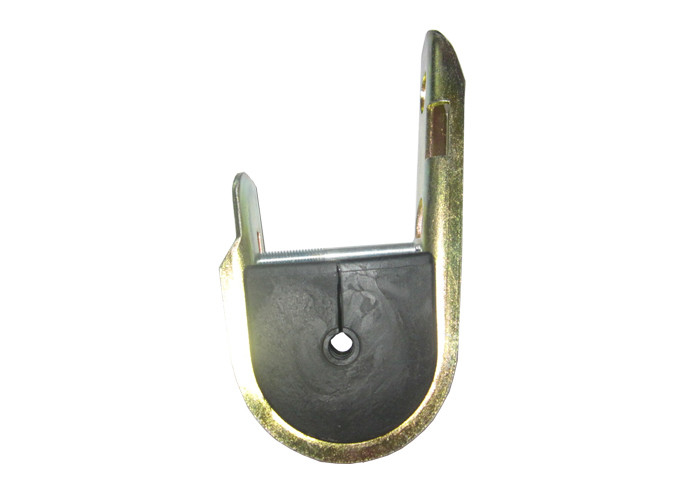

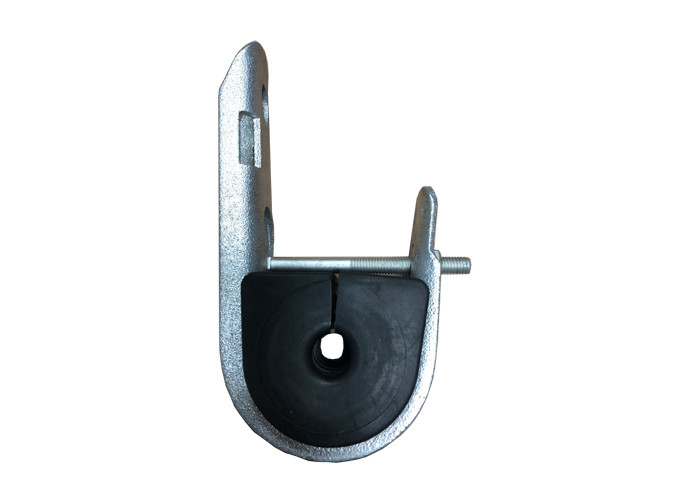

   Hot Dip Galvanized Steel J Hook Suspension Clamp



Two sizes to cover the full range of ADSS cables from 5 to 20mm..
• The shape of the J Hook allows a running out of the cable directly in the hook
• The suspension clamps can be directly secured to the poles using bolts or bandings.
They can also be installed on hook bolts to provide some flexible suspension point and give extra protection to the cable against wind induced vibrations


The suspension force: 0.00823*2.45=0.02KN


Model No.: Destructive Weight Material The suspension force area
PT-25 12KN 0.6kgs Hot dip galvanized steel + EPDM 50*164.57=8228.5mm^2=0.00823m^2



Suspension clamps designed to suspend ADSS round optical fiber cable during construction of transmission line. The clamp consists of plastic insert, which clamp the optical cable without damaging. A wide range of gripping capacities and mechanical resistance archived by wide product range, with different sizes of neoprene inserts.

The metal hook of suspension clamp allows installation on the pole by using HDG steel band and pigtail hook or brackets. The hook of ADSS clamp can be produced form stainless steel materials or HDG Steel according to you request
                                                            20KN J Hook Suspension Clamp Hot Dip Galvanized Steel 0                       20KN J Hook Suspension Clamp Hot Dip Galvanized Steel 120KN J Hook Suspension Clamp Hot Dip Galvanized Steel 2
