| Place of Origin: | CHINA |
|---|---|
| Brand Name: | HC , OEM |
| Certification: | CE , SGS , ISO2001 |
| Model Number: | PA-09A2 |
| Minimum Order Quantity: | 100PCS |
| Price: | Negotiable |
| Packaging Details: | Cartons , Wooden Case , Pallets |
| Delivery Time: | 7 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5000 Sets Per day |
| Material: | Hot Dip Galvanized Steel | Size: | 16mm , 20mm ,24mm |
|---|---|---|---|
| Loading Strength: | 70KN-120KN | Weight: | 1.0KGS ,1.3KGS |
| Type: | QH And Q | Size Of Coupling: | 16 , 20 |
| High Light: | Ball Eyes Thimble Clevis,Thimble Clevis 16mm,20mm thimble eye clevis |
||

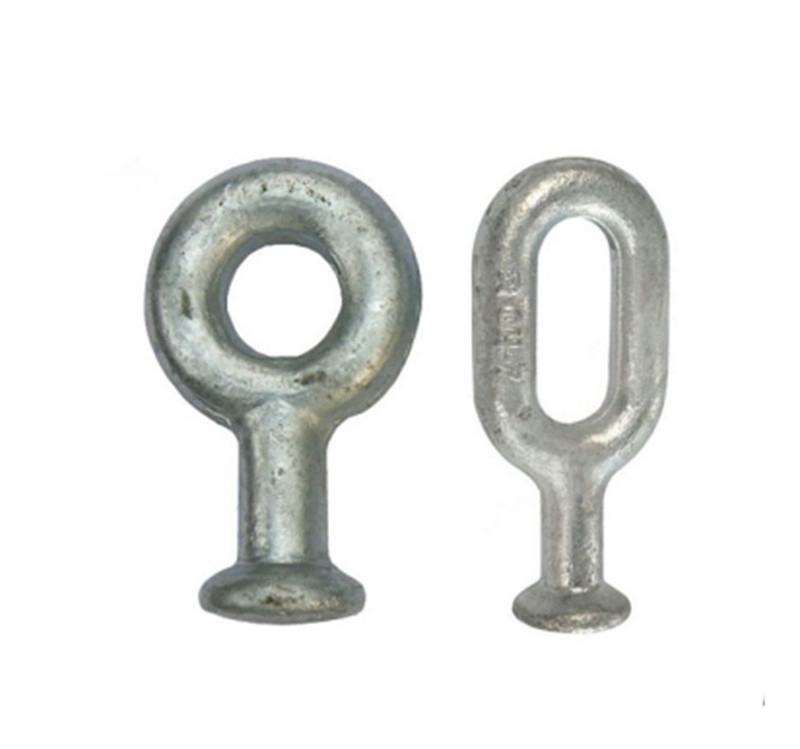

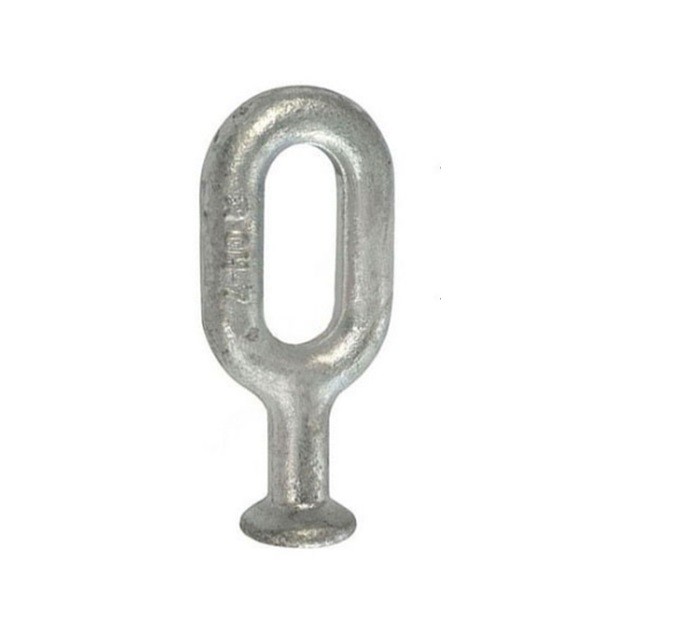

Ball Eyes Thimble Clevis
1. product presentation
QP, QH & Q type ball head shackle are used for connections with the socket on steel nut subjected to the top section of ball & socket-shaped suspension insulator, avoiding the stress concentration for point contact generated by the connective point. According to different usage conditions, ball head shackles are composed of ring interface type & bolt flat interface.
2. Technical Parameter
QP, QH & Q Type Ball Head Shackle
| National Grid Type | Standard Type | Size of Coupling | Dimension (mm) | Nominal Failure Load (kn) | ||||
| B | D1 | D | Φ | H | ||||
| Q-7 | 16 | 16 | 17 | 33.3 | 22 | 50 | 70 | |
| QP-0750 | QP-7 | 16 | 16 | 17 | 33.3 | 20 | 50 | 70 |
| QP-1050 | QP-10 | 16 | 16 | 17 | 33.3 | 20 | 50 | 100 |
| QP-1260 | QP-12 | 16 | 16 | 17 | 33.3 | 24 | 60 | 120 |
| QP-1660 | QP-16 | 20 | 18 | 21 | 41.0 | 26 | 60 | 160 |
| QP-20 | 24 | 24 | 25 | 49.0 | 30 | 80 | 200 | |
| QP-21D | 20 | 21 | 21 | 41.0 | 29 | 70 | 210 | |
| QP-2180 | 20 | 20 | 21 | 41.0 | 26 | 80 | 210 | |
| QP-2580 | 24 | 24 | 25 | 49.0 | 30 | 80 | 250 | |
| QP-30 | 24 | 28 | 25 | 49.0 | 39 | 80 | 300 | |
| QP-3280 | 24 | 28 | 25 | 49.0 | 33 | 80 | 320 | |
| National Grid Type | Standard Type | Size of Coupling | Dimension (mm) | Nominal Failure Load (kn) | |||||
| Φ | D1 | D | C | H1 | H | ||||
| QH-07100 | QH-7 | 16 | 16 | 17 | 33.3 | 24 | 57 | 100 | 70 |
| QH-10 | 16 | 18 | 17 | 33.3 | 22 | 60 | 110 | 100 | |
| QH-12 | 16 | 19 | 17 | 33.3 | 22 | 63 | 120 | 120 | |
| QH-16155 | QH-16S | 20 | 20 | 21 | 41.0 | 26 | 100 | 155 | 160 |
| QH-21140 | 20 | 20 | 21 | 41.0 | 26 | 83 | 140 | 210 | |
| QH-21155 | QH-21S | 20 | 20 | 21 | 41.0 | 26 | 100 | 155 | 210 |
| QH-32175 | QH-32S | 24 | 28 | 25 | 49.0 | 32 | 110 | 175 | 320 |
| Type | Size of Coupling | Dimension (mm) | Nominal Failure Load (kn) | Weight (kg) | ||||
| B | C | Φ | H1 | H | ||||
| Q-7M | 16 | 16 | 18 | 14 | 60 | 130 | 70 | 1.0 |
| Q-12M | 16 | 18 | 24 | 14 | 70 | 145 | 120 | 1.3 |
Remark: we can customize various specification products based on different requirements. Meanwhile we can finish delivery of items in a shortest time.
