| Place of Origin: | CHINA |
|---|---|
| Brand Name: | HC , OEM |
| Certification: | CE , SGS , ISO2018 |
| Model Number: | TC-04 , TC-07 , TC-10 |
| Minimum Order Quantity: | 100 |
| Price: | Negotiable |
| Packaging Details: | Cartons , Wooden Case , Pallets |
| Delivery Time: | 7 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5000 Sets Per day |
| Material: | Ductile Iron,grade 604512 | Finish: | Hot Dip Galvanized Steel |
|---|---|---|---|
| Type: | Link Fitting | Application: | Overhead Line Accessories |
| Weight: | 0.9kgs-1.7kgs | Bolt Size: | M12 , M16 |
| High Light: | Thimble Clevis TC-07,Galvanized Thimble Clevis,TC-10 clevis thimble |
||

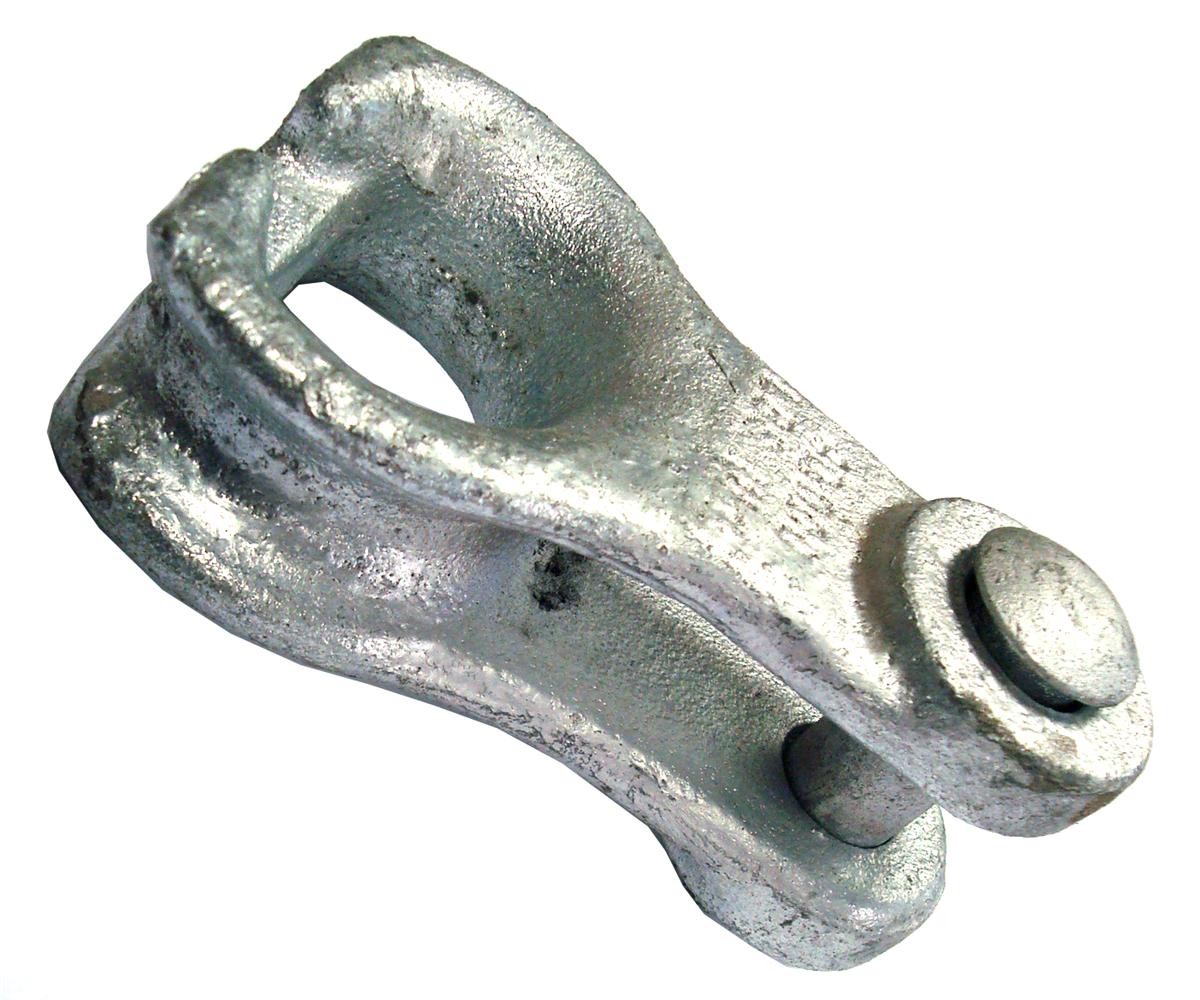

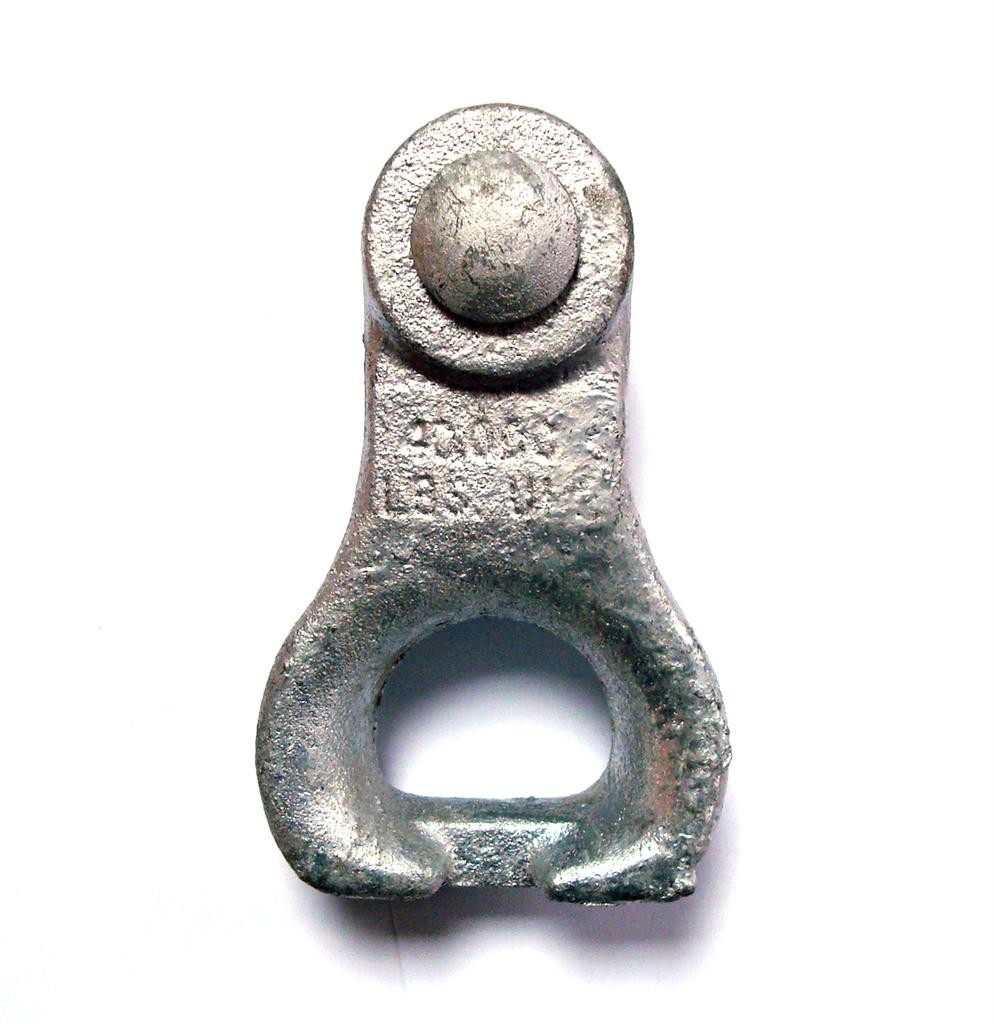

Hot Dip Galvanized Thimble Clevis , TC-07 , TC-10 , TC-12
Our Hot Dip Galvanized Thimble application for Overhead Line Accessories ,Fiber Cable of ADSS and OPGW.
Meterial:Ductile iron,grade 604512
Clevis pins are C-1040 STEEL,cotter pins are stainless steel
Finished:Hot dip galvanized
| Model |
Dimensions (mm) |
Failing Load(KN) | Weight(Kg) | ||
| C | B | A | |||
| TC07 | 40 | 23 | M16 | 70 | 0.9 |
| TC10 | 50 | 24 | M18 | 100 | 0.9 |
| TC12 | 50 | 24 | M22 | 120 | 0.9 |
| TC16 | 62 | 28 | M24 | 160 | 1.7 |
Packing: Wooden case , Carton ,ETC
