| Place of Origin: | CHINA |
|---|---|
| Brand Name: | HC , OEM |
| Certification: | CE , SGS , ISO2001 |
| Model Number: | PA-04443 |
| Minimum Order Quantity: | 100PCS |
| Price: | Negotiable |
| Packaging Details: | Cartons , Wooden Case , Pallets |
| Delivery Time: | 7 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5000 Sets Per day |
| Feature: | High Holding Power | Conductor Dia: | 3.8mm-22.4mm |
|---|---|---|---|
| Weight: | 0.6kgs-1.34kgs | Strength: | 20KN-45KN |
| Cotter Pin: | Stainless Steel | U Bolt No.: | 2 Pieces |
| High Light: | Straight Line Strain Clamps 45KN,Aluminum Straight Line Strain Clamp 45KN,45KN dead end strain clamps |
||

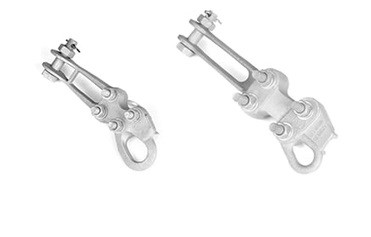

Straight Line Strain Clamp
Product Description
Dead ends bolted Aluminum Straight line strain clamp for distribution and light transmission constructuion with all aluminum, ACSR or aluminum alloy conductor. These clamps have high holdingpower and large range taking ability.( Straight Contoured Groove).
Used Materials
Body and keeper: aluminum alloy
Hardware: galvanized steel
Socket and Clevises: Iron, galvanized
Cotter Pin: Stainless Steel
Variants
The product is manufactured and supplied in modification’s as is showed upwards in product range.
Storage and transport
Product do not have any specific requirements on storage. It is fire-resistand it is not dangerous.
| Type | Conductor Dia.(mm) | Dimensions(mm) | U-BOLT NO. | U.T.S(KN) | weight(kg) | ||
| L | C | D | |||||
| NLZ-1L | 3.8-9.4 | 114 | 19 | 16 | 2 | 20 | 0.60 |
| NLZ-2L | 5.8-10.4 | 195 | 19 | 16 | 2 | 35 | 0.84 |
| NLZ-3L | 7.6-15.2 | 195 | 19 | 16 | 2 | 45 | 1.05 |
| NLZ-4L | 11.7-22.4 | 240 | 24 | 16 | 2 | 45 | 1.34 |
