160KN Thimble Clevis Fitting Aerial Electric Pulling Line Clamp

Basic Information
Place of Origin: CHINA
Brand Name: HC , OEM
Certification: CE , SGS , ISO2018
Model Number: NX Series
Minimum Order Quantity: 100
Price: Negotiable
Packaging Details: Cartons , Wooden Case , Pallets
Delivery Time: 7 days
Payment Terms: L/C, T/T
Supply Ability: 5000 Sets Per day
Detail Information
Application: Connection Bolt Type: L Type
Steel Wire Dia: 6.6mm-16mm Weight: 1.19kgs, 1.76kgs
Loading Strength: 45kn-160kn Length: 150mm-220mm
High Light:

160KN thimble clevis fitting


thimble clevis fitting


NX Series clevis thimble

Product Description

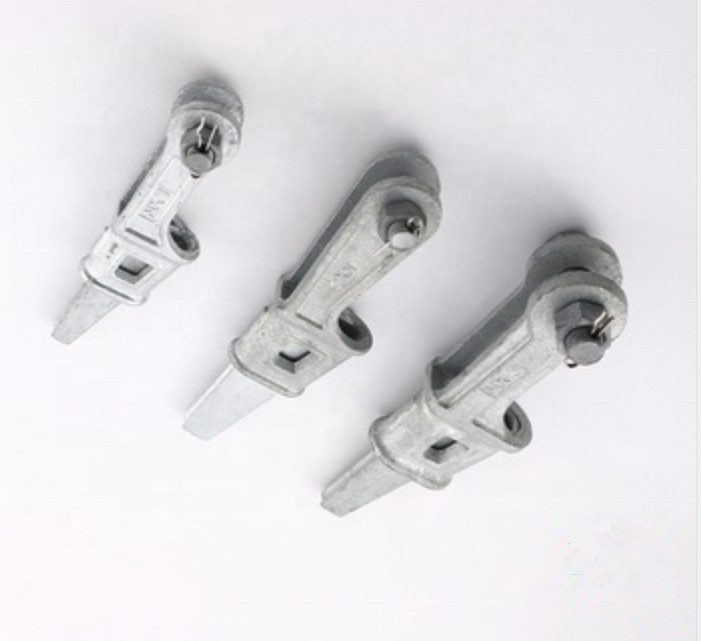

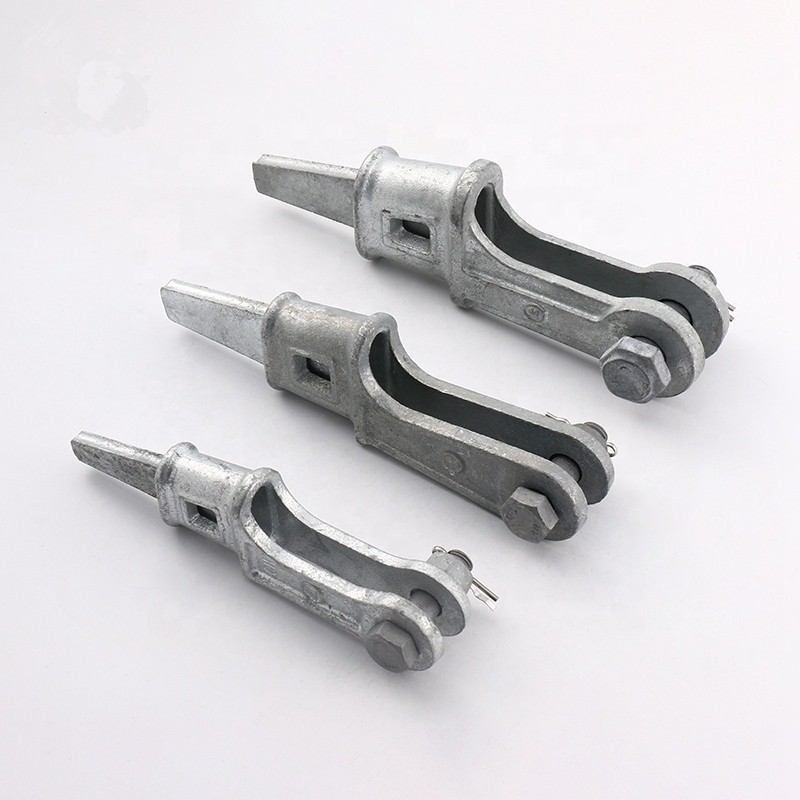

Aerial Electric Pulling Line clamp / Thimble Clevis


The meaning of letter Arabic figure in the catalog are shown as follow


N-strain clamp

L-bolt type

D-inverse mounting

Y-hydraulic type

B-explosive type The figures mean the of assembled leads which apply to each other numbers


Additional letter: A-jumper° B-jumper30°


The radius of curvature is more than eight fold diameter of the suitable conductor, the percentage miniumm slip strength oclamp to rated ultim ate strength of conductor is shown in the following table

Place Type Percentage%
Electric power line Compression 95
Bolt 90

For extra large cross-section wires, the grip strength of the tension clamp used for expanding and insulating wires can be 65%


Type Steel Wire Dia(mm) Dimensions(mm) Rated failure load(KN) Weight(kg)
C M L R
NX-1 6.6-7.8 18 16 150 6 45 1.19
NX-2 9.0-11.0 20 18 180 7.3 88 1.76
NX-3 13.0-14.0 24 24 200 7.3 143 3.2
NX-4 15.0-16.0 28 27 220 8 164 5.3

160KN Thimble Clevis Fitting Aerial Electric Pulling Line Clamp 0
