| Place of Origin: | CHINA |
|---|---|
| Brand Name: | HC , OEM |
| Certification: | CE , SGS , ISO2018 |
| Model Number: | ANY0940 020 , ANY1220 020 , ANY1460 020 |
| Minimum Order Quantity: | 100 |
| Price: | Negotiable |
| Packaging Details: | Cartons , Wooden Case , Pallets |
| Delivery Time: | 7 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5000 Sets Per day |
| Material: | Aluminum , Aluminum Clad Steel , Galvanized Steel | Type: | Fiber Cable Fittings |
|---|---|---|---|
| Span: | 100M-800M | Color Label: | Green , Black , Red , Blue |
| Holding Strength: | 20Kn-100Kn | Length: | 800MM-3000MM |
| High Light: | ADSS preformed dead end clamp,800MM preformed dead end clamp,ADSS armor rods transmission line |
||

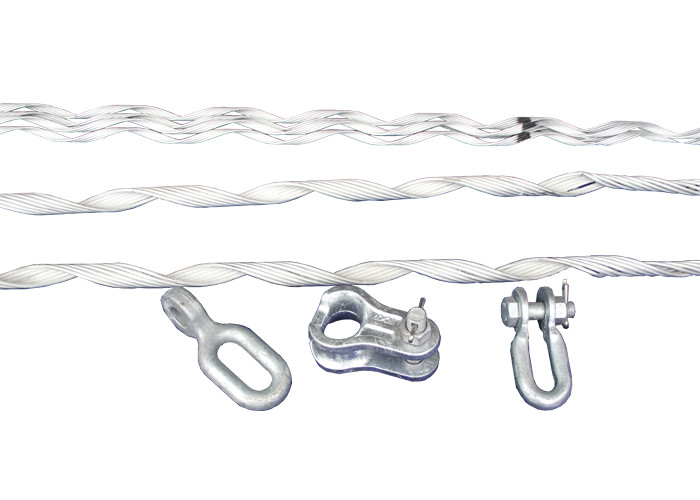

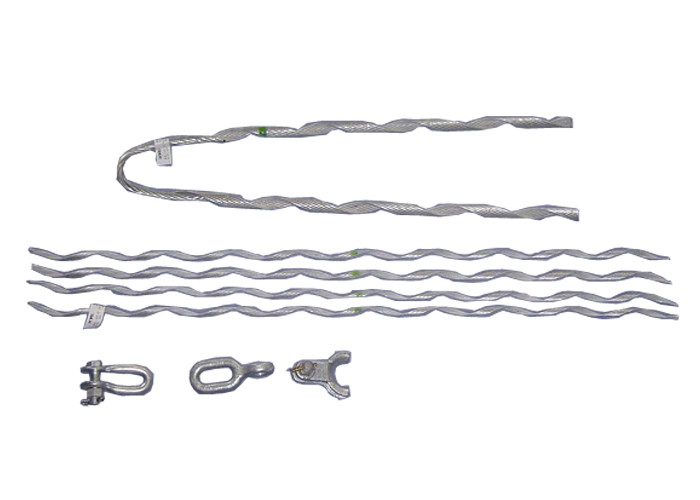

Preformed Dead End Clamp For Long Span ADSS fiber Cable
1,Material of preformed rods- aluminum-clad steel rod or galvanization steel rod.
2,For Medium And Long Span
1.1 Specification
| Model | Available Dia. of Cable(mm) | Holding Strength (KN) |
Available Span(m) |
(mm) |
Length of Structural Reinforcing Rods(mm) |
Weight (kg) |
Universal Scheme | |||
| Clevis(Eye Chain Link) | Thimble | Anchor Shackle | ||||||||
| ANY 0940 020 | 8.6-9.4 | 20 | 200/300 | 800 | 1100 | 0.88 | ZH-7 | TC 04 | U-7 | |
| ANY 1010 020 | 9.5-10.1 | 20 | 200/300 | 800 | 1100 | 1.02 | ZH-7 | TC 04 | U-7 | |
| ANY 1070 020 | 10.2-10.7 | 20 | 200/300 | 800 | 1100 | 1.06 | ZH-7 | TC 04 | U-7 | |
| ANY 1140 020 | 10.8-11.4 | 20 | 200/300 | 800 | 1100 | 1.08 | ZH-7 | TC 04 | U-7 | |
| ANY 1220 020 | 11.5-12.2 | 20 | 200/300 | 800 | 1100 | 1.35 | ZH-7 | TC 07 | U-7 | |
| ANY 1290 020 | 12.3-12.9 | 20 | 200/300 | 800 | 1100 | 1.38 | ZH-7 | TC 07 | U-7 | |
| ANY 1370 020 | 13.0-13.7 | 20 | 200/300 | 800 | 1100 | 1.54 | ZH-7 | TC 07 | U-7 | |
| ANY 1460 020 | 13.8-14.6 | 20 | 200/300 | 800 | 1100 | 1.57 | ZH-7 | TC 07 | U-7 | |
| ANY 1550 020 | 14.7-15.5 | 20 | 200/300 | 800 | 1100 | 1.6 | ZH-7 | TC 07 | U-7 | |
| ANY 0940 030 | 8.6-9.4 | 30 | 300/400 | 1100 | 1400 | 1.17 | ZH-7 | TC 07 | U-7 | |
| ANY 1010 030 | 9.5-10.1 | 30 | 300/400 | 1100 | 1400 | 1.35 | ZH-7 | TC 07 | U-7 | |
| ANY 1070 030 | 10.2-10.7 | 30 | 300/400 | 1100 | 1400 | 1.4 | ZH-7 | TC 07 | U-7 | |
| ANY 1140 030 | 10.8-11.4 | 30 | 300/400 | 1100 | 1400 | 1.43 | ZH-7 | TC 07 | U-7 | |
| ANY 1220 030 | 11.5-12.2 | 30 | 300/400 | 1100 | 1400 | 1.8 | ZH-7 | TC 07 | U-7 | |
| ANY 1290 030 | 12.3-12.9 | 30 | 300/400 | 1100 | 1400 | 1.84 | ZH-7 | TC 07 | U-7 | |
| ANY 1370 030 | 13.0-13.7 | 30 | 300/400 | 1100 | 1400 | 2.04 | ZH-7 | TC 07 | U-7 | |
| ANY 1460 030 | 13.8-14.6 | 30 | 300/400 | 1100 | 1400 | 2.08 | ZH-7 | TC 07 | U-7 | |
| ANY 1550 030 | 14.7-15.5 | 30 | 300/400 | 1100 | 1400 | 2.12 | ZH-7 | TC 07 | U-7 | |
| Model | Available Dia. of Cable(mm) |
Holding Strength (KN) |
Available Span |
Length of Dead-end Component (mm) |
Length of Structural Reinforcing Rods(mm) |
Weight (kg) |
Universal Scheme | |||
| Clevis(Eye Chain Link) | Thimble | Anchor Shackle | ||||||||
| ANY 1220 040 | 11.5-12.2 | 40 | 400/500 | 1260 | 1800 | 2.14 | PD-7 | TC 07 | U-7/2 | |
| ANY 1290 040 | 12.3-12.9 | 40 | 400/500 | 1260 | 1800 | 2.19 | PD-7 | TC 07 | U-7/2 | |
| ANY 1370 040 | 13.0-13.7 | 40 | 400/500 | 1260 | 1800 | 2.44 | PD-7 | TC 07 | U-7/2 | |
| ANY 1460 040 | 13.8-14.6 | 40 | 400/500 | 1260 | 1800 | 2.49 | PD-7 | TC 07 | U-7/2 | |
| ANY 1550 040 | 14.7-15.5 | 40 | 400/500 | 1260 | 1800 | 2.54 | PD-7 | TC 07 | U-7/2 | |
| ANY 1650 040 | 15.6-16.5 | 40 | 400/500 | 1260 | 1800 | 2.92 | PD-7 | TC 07 | U-7/2 | |
| ANY 1370 050 | 13.0-13.7 | 50 | 500/600/700 | 1400 | 2000 | 2.7 | PD-7 | TC 07 | U-7/2 | |
| ANY 1460 050 | 13.8-14.6 | 50 | 500/600/700 | 1400 | 2000 | 2.76 | PD-7 | TC 07 | U-7/2 | |
| ANY 1550 050 | 14.7-15.5 | 50 | 500/600/700 | 1400 | 2000 | 2.81 | PD-7 | TC 07 | U-7/2 | |
| ANY 1650 050 | 15.6-16.5 | 50 | 500/600/700 | 1400 | 2000 | 3.23 | PD-7 | TC 07 | U-7/2 | |
| ANY 1370 060 | 13.0-13.7 | 60 | 600/700/800 | 1560 | 2200 | 2.98 | PD-7 | TC 07 | U-7/2 | |
| ANY 1460 060 | 13.8-14.6 | 60 | 600/700/800 | 1560 | 2200 | 3.04 | PD-7 | TC 07 | U-7/2 | |
| ANY 1550 060 | 14.7-15.5 | 60 | 600/700/800 | 1560 | 2200 | 3.11 | PD-7 | TC 07 | U-7/2 | |
| ANY 1650 060 | 15.6-16.5 | 60 | 600/700/800 | 1560 | 2200 | 3.57 | PD-7 | TC 07 | U-7/2 | |
| ANY 1460 070 | 13.8-14.6 | 70 | 700/800/900 | 1600 | 2400 | 3.2 | PD-7 | TC 07 | U-7/2 | |
| ANY 1550 070 | 14.7-15.5 | 70 | 700/800/900 | 1600 | 2400 | 3.27 | PD-7 | TC 07 | U-7/2 | |
| ANY 1650 070 | 15.6-16.5 | 70 | 700/800/900 | 1600 | 2400 | 3.77 | PD-7 | TC 07 | U-7/2 | |
| ANY 1750 070 | 16.6-17.5 | 70 | 700/800/900 | 1600 | 2400 | 4.12 | PD-7 | TC 07 | U-7/2 | |
| ANY 1870 070 | 17.6-18.7 | 70 | 700/800/900 | 1600 | 2400 | 4.64 | PD-7 | TC 07 | U-7/2 | |
| ANY 1550 080 | 14.7-15.5 | 80 | 800/900/1000 | 2000 | 3000 | 4.08 | PD-10 | TC 10 | U-10/2 | |
| ANY 1650 080 | 15.6-16.5 | 80 | 800/900/1000 | 2000 | 3000 | 4.71 | PD-10 | TC 10 | U-10/2 | |
The preformed dead end clamp are the first to offer the cabled loop, a feature that provides more durability, easier tensioning and adaptability to multiple guying.
Packing: Wooden case , Carton Etc.
