| Place of Origin: | CHINA |
|---|---|
| Brand Name: | HC , OEM |
| Certification: | CE , SGS , ISO2018 |
| Model Number: | BHT Series |
| Minimum Order Quantity: | 100 |
| Price: | Negotiable |
| Packaging Details: | Cartons , Wooden Case , Pallets |
| Delivery Time: | 7 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5000 Sets Per day |
| Material: | Galvanized Steel | Type: | For Copper Wire |
|---|---|---|---|
| Dia Rang: | 7mm-29mm | Color Label: | Green , Black , Red , Blue |
| Conductor Range: | 35-150 | Length: | 500mm-2000mm |
| High Light: | 500mm Preformed Armor Rods,OEM Preformed Armor Rods,Galvanized Steel armor rods conductor |
||

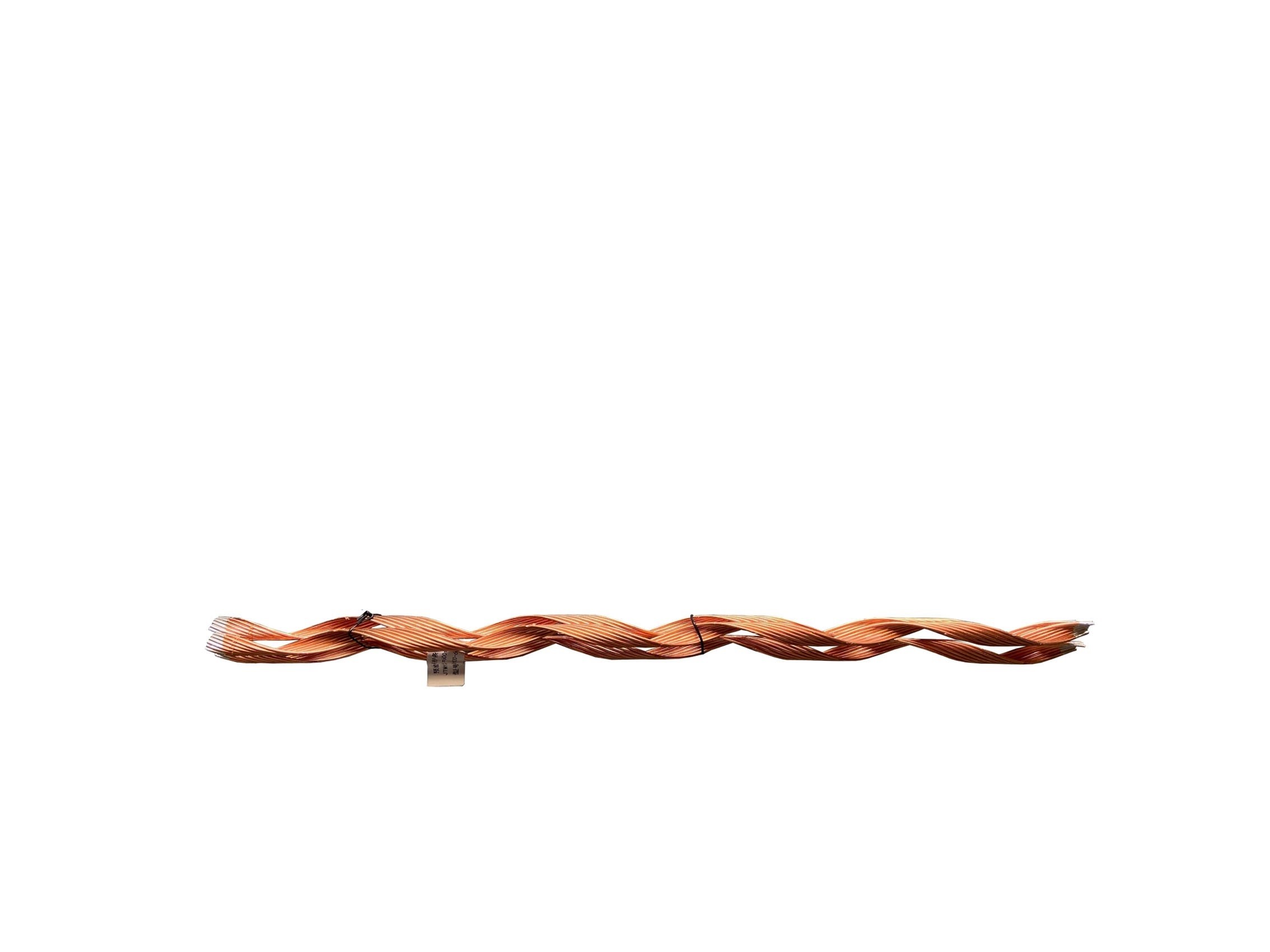

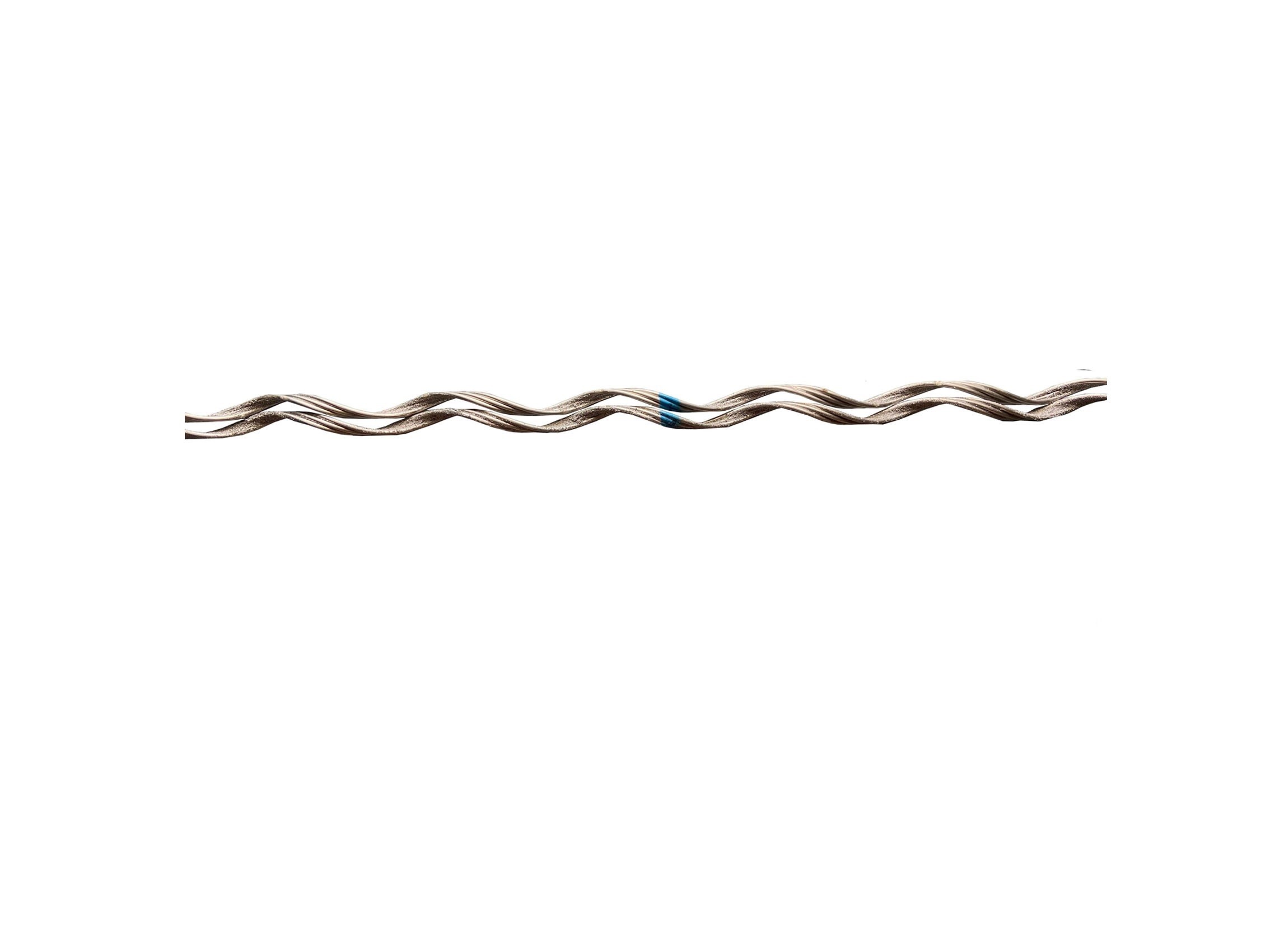

500mm Preformed Armor Rods For Copper Stranded Conductor
Use and structure:
The preformed armor rods are used to keep the conductor from the vibration , clamp compressive stress ,friction and abrasion , electric arc and other damages.The structure of the preformed armor rods is simple and a set of preformed rods become an empty pipe and enlace ,hold and protect the conductor.This product is suitable for copper stranded and copper-clad steel wire.
Trait:
2) Due to the grip flexibility of preformed rods, it will keep the conductor from loosen.
3) The raw material have been dealed with stainless, so that to keep excellent corrosion resistance.
4) Installed by hand directly, no need special tool.
5) Easy to guarantee the quality of installation, inspectioned by optic view without special trainning.
6) The preformed rods is an usual fitting, it can be matched with different clamps.
“*” means the length of 500,800,1200,1500,2000mm; meanwhile, the length also can be provided by customer.
1.1 Specification
Table Selection of Preformed Armor Rods for Copper Stranded Conductor
| Type | Model | Conductor Area(mm2) | Cable Dia.(mm) | * L(mm) | Material | Remark |
| 1 | BHT35/500*-T | 35 | 500* | Copper-clad steel strand | ||
| 2 | BHT50/500*-T | 50 | 500* | |||
| 3 | BHT70/500*-T | 70 | 500* | |||
| 4 | BHT95/500*-T | 95 | 500* | |||
| 5 | BHT100/500*-T | 100 | 500* | |||
| 6 | BHT120/500*-T | 120 | 500* | |||
| 7 | BHT150/500*-T | 150 | 500* |
Remark: Consult Hope when for sizes or strandings not shown
“ * ”LENGTH:500,800,1200,1500,2000mm; LENGTH CAN PRODUCE AS REQUESTED.
Packing: Wooden case , Carton Etc.
