| Place of Origin: | CHINA |
|---|---|
| Brand Name: | HC , OEM |
| Certification: | CE , SGS , ISO2018 |
| Model Number: | ANJ |
| Minimum Order Quantity: | 100 |
| Price: | Negotiable |
| Packaging Details: | Cartons , Wooden Case , Pallets |
| Delivery Time: | 7 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5000 Sets Per day |
| Material: | Aluminum , Aluminum Clad Steel , Galvanized Steel | Type: | Fiber Cable Fittings |
|---|---|---|---|
| Span: | 100M-800M | Color Label: | Green , Black , Red , Blue |
| Holding Strength: | 20Kn-100Kn | Length: | 800MM-3000MM |
| High Light: | 3000MM preformed ground wire tension clamp,100KN preformed ground wire tension clamp,3m preformed tension clamp |
||

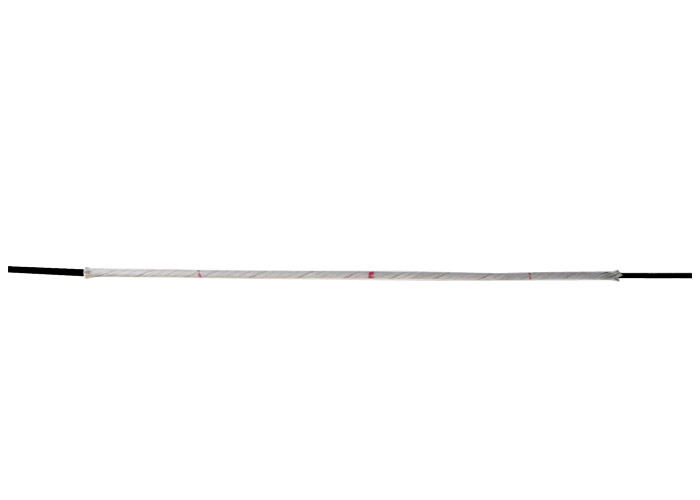

Preformed Tension Clamp

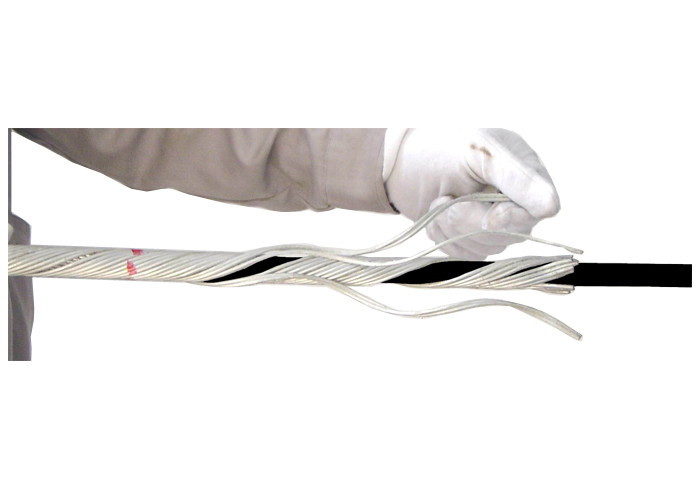

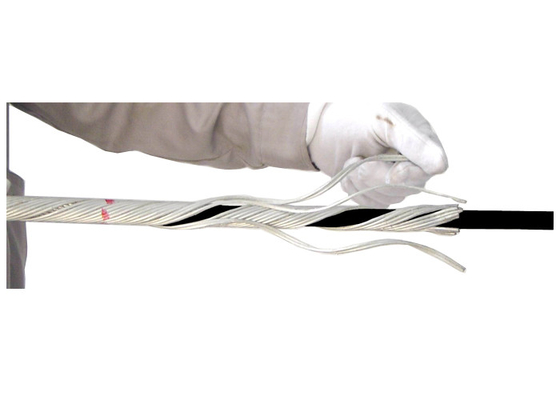

Preformed Tension Clamp ,or Dead end grip is one series of Guy grip It is much different from the dead end cable grips, used on ADSS/OPGW/OPPC communication line.
According to the application, the dead end grip includes guy wire dead end grips, preformed dead end grip used on the conductor, and performed grip used on the grounding wire. Guy wire preforms are applied widely on dead end poles. The guy wire preforms to connect the insulator or anchor rod to accomplish the function of establishing the pole.
Dead end grip also called preformed dead end grip, is widely used on ACSR, AAC, AAAC, copper conductor, and steel wire.
Preformed dead end grip features high grip strength, easy installation, and anti-corrosion to satisfy today’s growing overhead line construction market.
| Model | Available Dia. of Cable |
Length of Dead-end Component
|
Weight(kg) | Universal Scheme | |
| Clevis | Thimble | ||||
| ANJ 0950 | 9.0-9.5 | 800 | 0.38 | GHX-04 | TC-04 |
| ANJ 1050 | 9.6-10.5 | 850 | 0.49 | GHX-04 | TC-04 |
| ANJ 1160 | 10.6-11.6 | 900 | 0.52 | GHX-04 | TC-04 |
| ANJ 1280 | 11.7-12.8 | 960 | 0.65 | GHX-04 | TC-04 |
| ANJ 1281 | 12.2-12.8 | 1003 | 0.68 | GHX-04 | TC-04 |
| ANJ 1410 | 12.9-14.1 | 1080 | 0.82 | GHX-04 | TC-04 |
| ANJ 1560 | 14.2-15.6 | 1160 | 1.22 | GHX-04 | TC-04 |
Packing: Cartons, wooden case ,ETC
