| Place of Origin: | CHINA |
|---|---|
| Brand Name: | HC , OEM |
| Certification: | CE , SGS , ISO2001 |
| Model Number: | ANY Series |
| Minimum Order Quantity: | 100PCS |
| Price: | Negotiable |
| Packaging Details: | Cartons , Wooden Case , Pallets |
| Delivery Time: | 7 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5000 Sets Per day |
| Advance: | Long Creepage Distance | Feature: | Superior Electrial Function , Aging Resistance. |
|---|---|---|---|
| Structure: | Inner Rods And Outter Dead End | Material: | Aluminum , Aluminum Clad Steel , Galvanized Steel |
| High Light: | ADSS Preformed Armor Rods,Double Preformed Armor Rods,Long Span ADSS Tension Clamp |
||
Material of Preformed Armor Rod or Repair for ACSR is aluminum alloy wire, Please Consult H&C when for sizes or strandings are not shown.
Preformed Amor rod Or Repair most are normally used for ADSS cable line’s fixing , ACSR , Galvanized Strand Iron Wire Strand , Aluminum Standarded Conductor and Etc .
| HX 3110 | 7.85 | 8.28 | 35/6 | Red | 1180 |
| HX 3610 | 1420 | ||||
| HX 3113 | 9.31 | 9.88 | 50/8 | Black | 1270 |
| HX 3613 | 1580 | ||||
| HX 3116 | 11.10 | 11.76 | 50/30,70/10 | Blue | 1370 |
| HX 3616 | 1680 | ||||
| HX 3119 | 13.24 | 14.00 | 70/40,95/15,95/20 | Green | 1472 |
| HX 3619 | 1780 | ||||
| HX 3120 | 14.01 | 14.86 | 120/7 | Yellow | 1526 |
| HX 3620 | 1830 | ||||
| HX 3121 | 14.87 | 15.39 | 120/20 | Red | 1575 |
| HX 3621 | 1880 | ||||
| HX 3122 | 15.40 | 16.00 | 95/55,120/25,150/8 | Black | 1628 |
| HX 3622 | 1930 | ||||
| HX 3124 | 16.66 | 17.25 | 150/20,150/25 | Blue | 1678 |
| HX 3624 | 1980 | ||||
| HX 3125 | 17.30 | 17.86 | 150/35 | Green | 1730 |
| HX 3625 | 2030 | ||||
| HX 3126 | 17.87 | 18.80 | 120/70,185/10 | Yellow | 1830 |
| HX 3626 | 2130 | ||||
| HX 3127 | 18.81 | 19.86 | 185/25,185/30,185/45,210/10 | Red | 1830 |
| HX 3128 | 19.87 | 20.68 | 210/25,210/35 | Black | 1930 |
| HX 3129 | 20.69 | 21.46 | 210/50 | Blue | 1930 |
| HX 3130 | 21.47 | 23.04 | 240/30,240/40,240/55,300/15 | Green | 1980 |
| HX 3131 | 23.05 | 23.60 | 300/20 | Yellow | 2030 |
| HX 3132 | 23.61 | 24.79 | 300/25,300/40,300/50 | Red | 2234 |
| HX 3133 | 24.80 | 25.81 | 300/70 | Black | 2337 |
| HX 3134 | 25.82 | 26.29 | 400/25 | Blue | 2390 |
| HX 3135 | 26.30 | 27.03 | 400/20,400/35 | Green | 2440 |
| HX 3136 | 27.04 | 27.89 | 400/50 | Yellow | 2440 |
| HX 3137 | 27.90 | 28.93 | 400/65 | Red | 2540 |
| HX 3138 | 28.94 | 29.49 | 400/95 | Black | 2540 |
Feature:

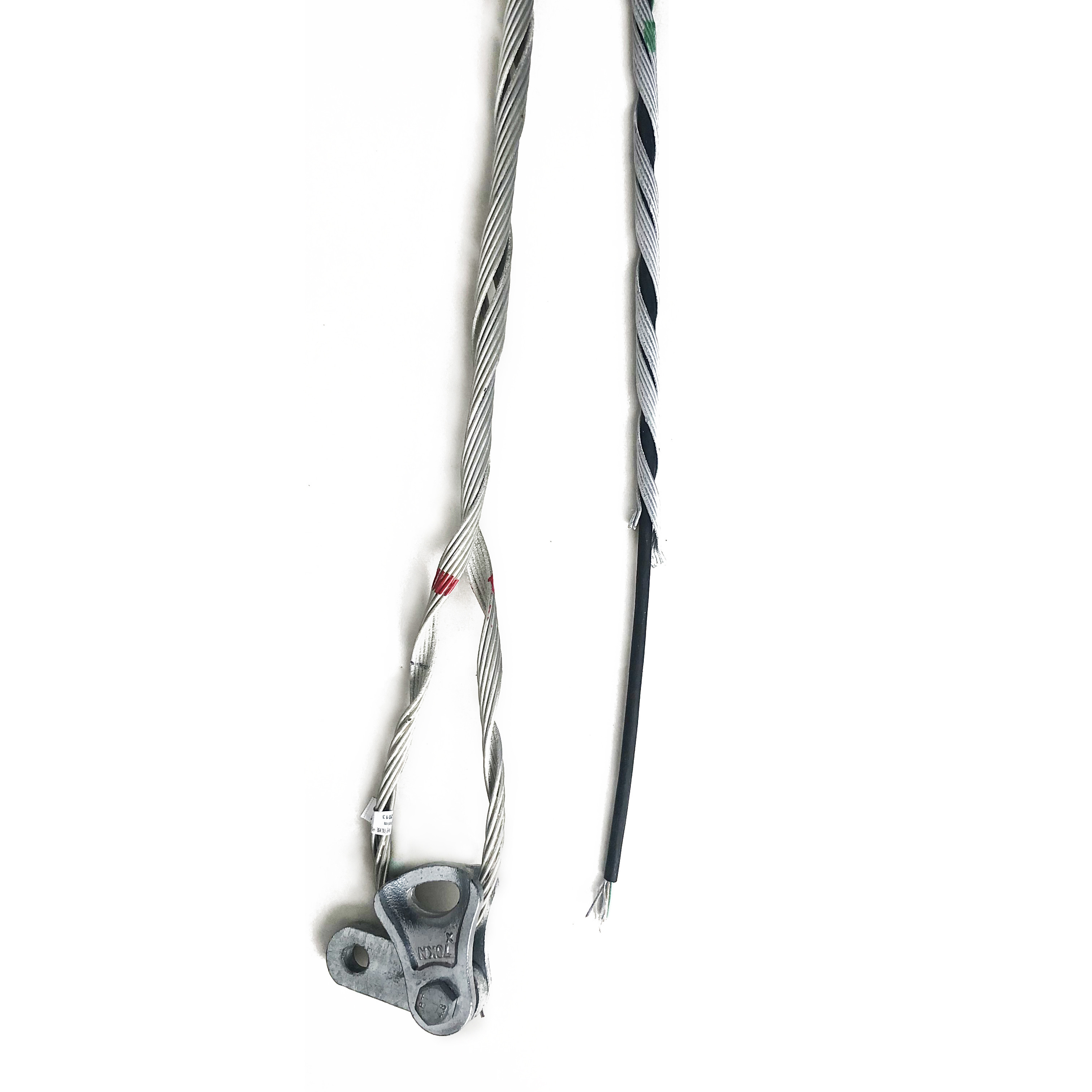

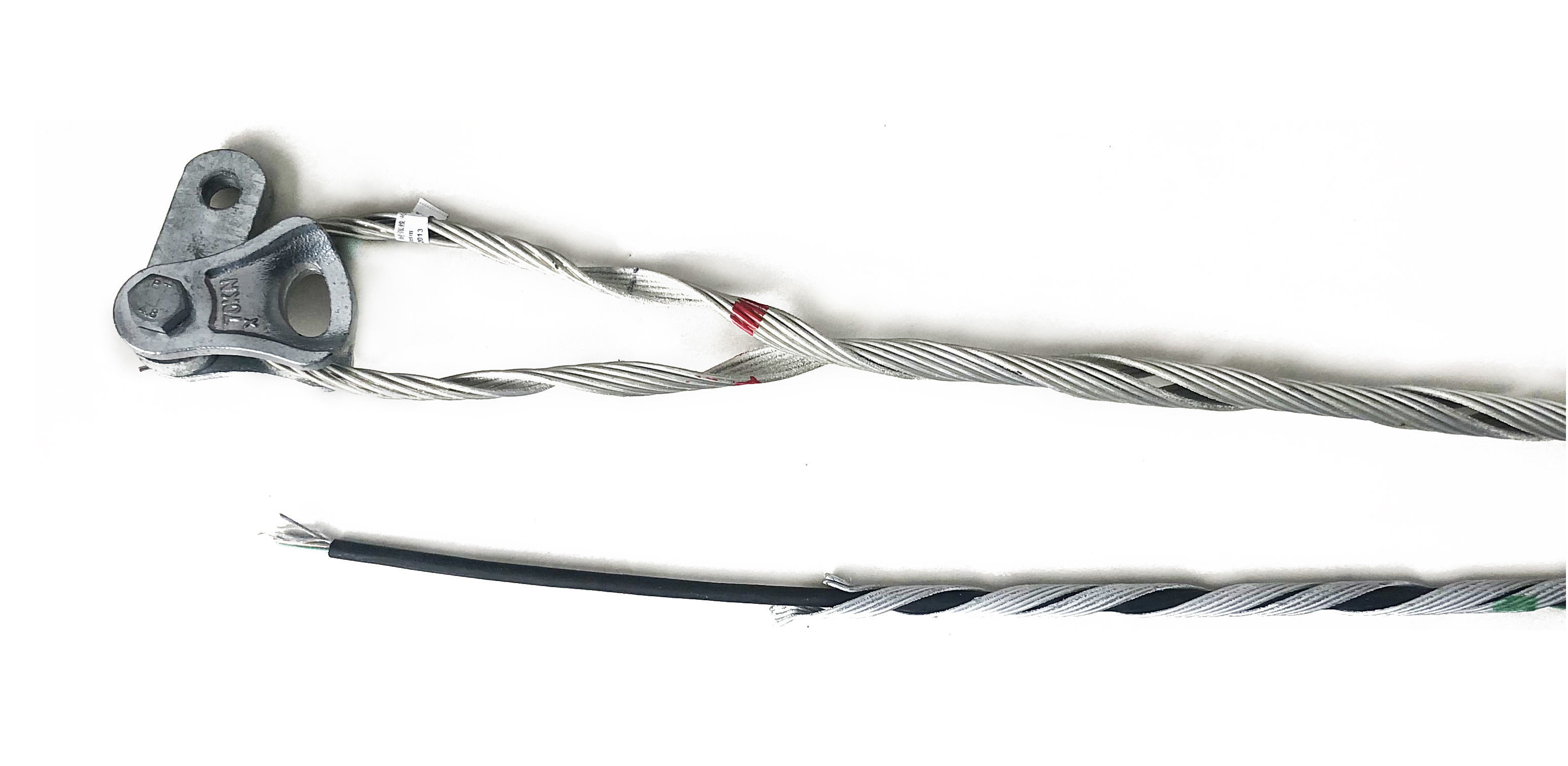

The tension clamp is single preformed rods structure, simple and reliable, convenient and quick installation. The special design of helical protection rods makes ensure that Tension Sets can not cause undue stress to the ADSS cables. As a result, the normal lifetime of cables system is ensured.
Advantages:
1.Light-weight.
2. High strength.
3.Long creepage distance.
4.Saving metal material and reduce the cost of line.
5.Aging resistance.
6 .Strence soiling.
7. Superior electrial function, metchnical capability, high and low.
Component
Inner armor rods, outer armor rods, thimble, U-shaped hanging loop, extension loop, bolt, nut, etc.
