| Place of Origin: | CHINA |
|---|---|
| Brand Name: | HC , OEM |
| Certification: | CE , SGS , ISO2018 |
| Model Number: | AXQ1110 , AXQ1330 , AXQ1550 |
| Minimum Order Quantity: | 100 |
| Price: | Negotiable |
| Packaging Details: | Cartons , Wooden Case , Pallets |
| Delivery Time: | 7 days |
| Payment Terms: | L/C, |
| Supply Ability: | 5000 Sets Per day |
| Material: | Aluminum , Aluminum Clad Steel , Galvanized Steel | Dia. Range: | 8mm-20mm |
|---|---|---|---|
| Span: | More Than 200 M Span | Color Label: | Green , Black , Red , Blue |
| Holding Strength: | 20Kn-100Kn | Length: | 1100MM-3000MM |
| High Light: | 200M Preformed Armor Rods,Long Span Preformed Armor Rods,ADSS Suspension Clamp 200M |
||

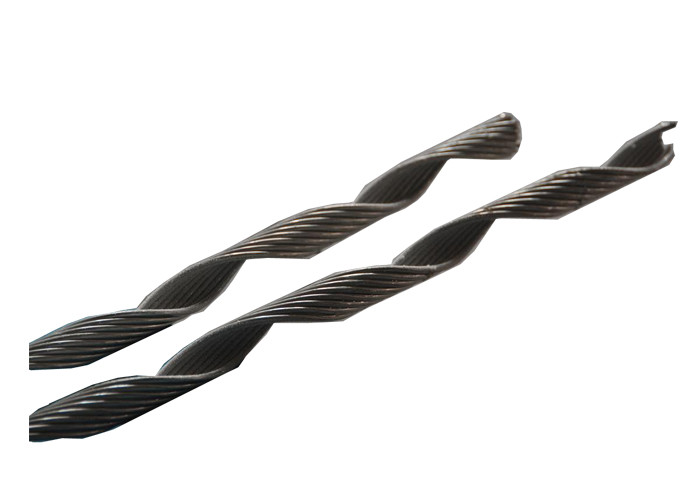

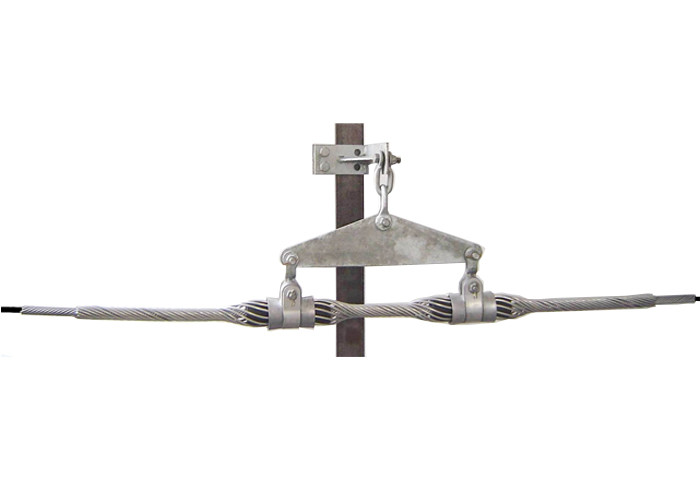

Long Span Suspension set For ADSS Fiber Calbe Fittting
Instruction:
Material:Aluminum alloy rod Insert: hylene-Propylene-non-conjugated Diene Rubber
Specification:The Long Span Suspension Set falling load will be not less than 70KN, and the grip strength of the clamp is bigger than 10%-20% of the rated tensile strength .
| Model |
Available Dia. of Cable(mm) |
Length of Outer Rods (mm) |
Length of endothecium’s (mm) |
Weight(kg) | Universal Scheme | Available Span(m) |
||
| AGS Clamp | Link Fittings | |||||||
| AXY 0960 300 | 9.0-9.6 | 1060 | 1500 | 1.45 |
Referrence Table 16.3 |
ZH-7 | U-7 | 200/300 |
| AXY 1010 300 | 9.7-10.1 | 1060 | 1500 | 1.45 | ZH-7 | U-7 | 200/300 | |
| AXY 1060 300 | 10.2-10.6 | 1060 | 1500 | 1.51 | ZH-7 | U-7 | 200/300 | |
| AXY 1110 300 | 10.7-11.1 | 1060 | 1500 | 1.51 | ZH-7 | U-7 | 200/300 | |
| AXY 1160 300 | 11.2-11.6 | 1080 | 1540 | 1.63 | ZH-7 | U-7 | 200/300 | |
| AXY 1170 300 | 11.7-11.7 | 1080 | 1540 | 1.71 | ZH-7 | U-7 | 200/300 | |
| AXY 1200 300 | 11.8-12.0 | 1160 | 1680 | 1.86 | ZH-7 | U-7 | 200/300 | |
| AXY 1270 300 | 12.1-12.7 | 1160 | 1680 | 1.86 | ZH-7 | U-7 | 200/300 | |
| AXY 1290 300 | 12.8-12.9 | 1160 | 1680 | 2.04 | ZH-7 | U-7 | 200/300 | |
| AXY 1360 300 | 13.0-13.6 | 1250 | 1800 | 2.21 | ZH-7 | U-7 | 200/300 | |
| AXY 1410 300 | 13.7-14.1 | 1250 | 1800 | 2.21 | ZH-7 | U-7 | 200/300 | |
| AXY 1430 300 | 14.2-14.3 | 1250 | 1800 | 2.21 | ZH-7 | U-7 | 200/300 | |
| AXY 1450 300 | 14.4-14.5 | 1250 | 1800 | 2.32 | ZH-7 | U-7 | 200/300 | |
| AXY 1510 300 | 14.6-15.1 | 1250 | 1800 | 2.40 | ZH-7 | U-7 | 200/300 | |
Packing: Wooden Case , Cartons , Etc
